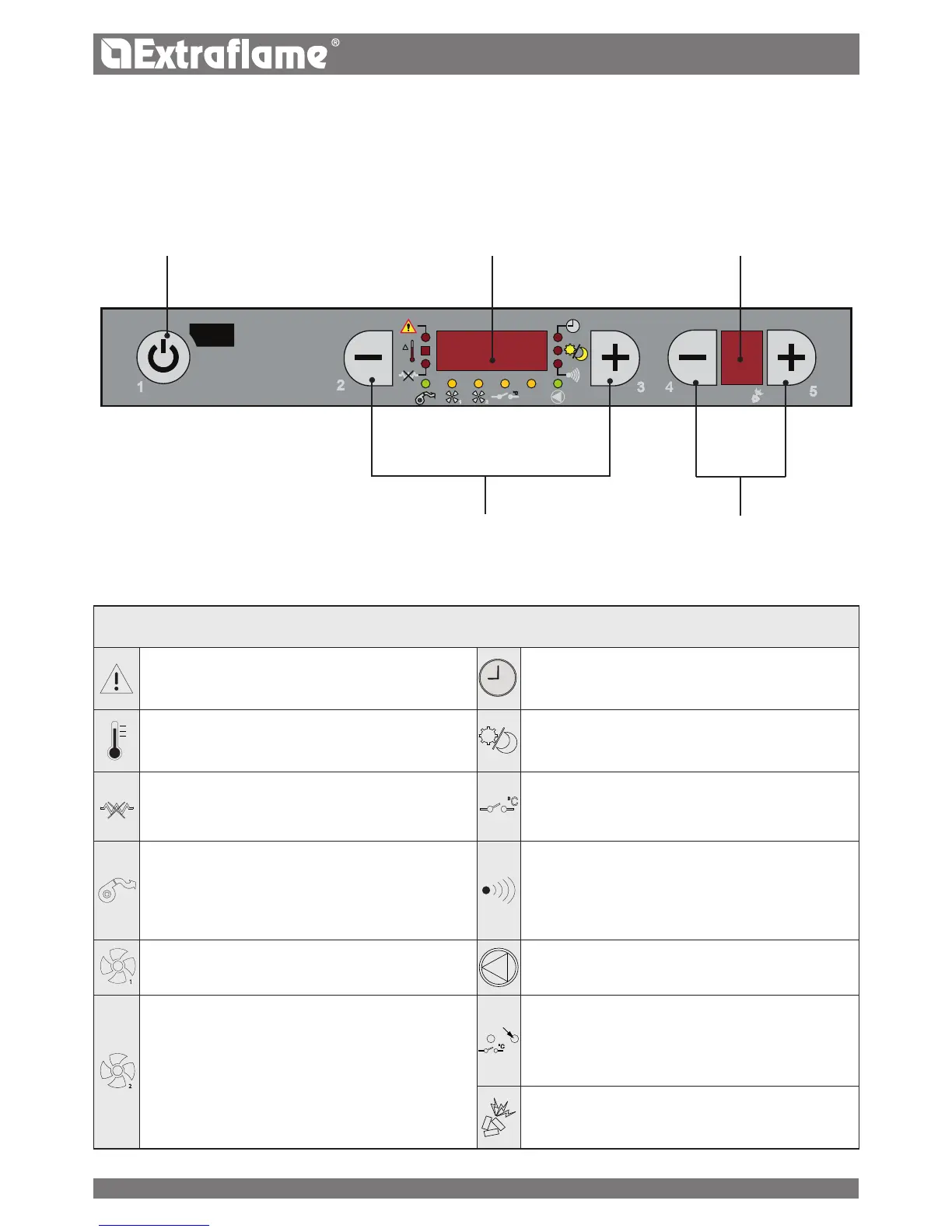

THE DISPLAY DESCRIPTION OF CONTROLS AND SYMBOLS
ON/OFF
BUTTON
DISPLAY OF VARIOUS
TEXT MESSAGES
DISPLAY
OF POWER
TEMPERATURE SETTING
OPERATION POWER
ADJUSTMENT
DISPLAY ICONS KEY
Indicates the presence of an alarm.
On: indicates the presence of an alarm
O: indicates the absence of alarms
Flashing: indicates the deactivation of the depression sensor.
It indicates weekly programming functioning
Indicator on = Weekly programming active
Indicator o = Weekly programming not active
Indicates the environment temperature status
O = the T° read by the probe is over the set temperature set
On = the T° read by the probe is below the set temperature set
Indicates the stby function
O = Stby deactivated
On = Stby activated
Ign-plug
O = ign-plug active
On = ign-plug deactivated
Flashing = Ignition phase
Not used
It indicates functioning of the fumes motor.
O = fumes motor not working
On = fumes motor working
Flashing = breakdown
It indicates the communication between remote control and
stove. Every time a key is pressed on the remote control the
indicator must switch on. If the indicator is always on it indicates
that the communication between remote control and stove is
blocked.*
1
It indicates functioning of the tangential fan
O = not working
On = working
Not used
2
Not used
Additional ducted thermostat input status:
On: closed contact (to be reached)
Flashing: the motor is running at minimum, in modulation
mode (input=open)
It indicates functioning of the pellet feed motor.
O = pellet feed motor deactivated
On = pellet feed motor active.
16
