Hardware Installation
AP-8432 Installation Guide 12
a Connect a RJ-45 Ethernet cable between the network data supply (host) and the
Access Point’s GE1/POE port.
b Verify the power adapter is correctly rated according to the country of operation.
c Connect the power supply line cord to the power adapter.
d Attach the power adapter cable into the power connector on the Access Point.
e Attach the power supply line cord to a power supply.
6 Verify the Access Point is receiving power by observing the LEDs are lit or flashing. For
more information on AP-8432 LED behavior, see LED Indicators on page 14.
The Access Point is ready to configure.

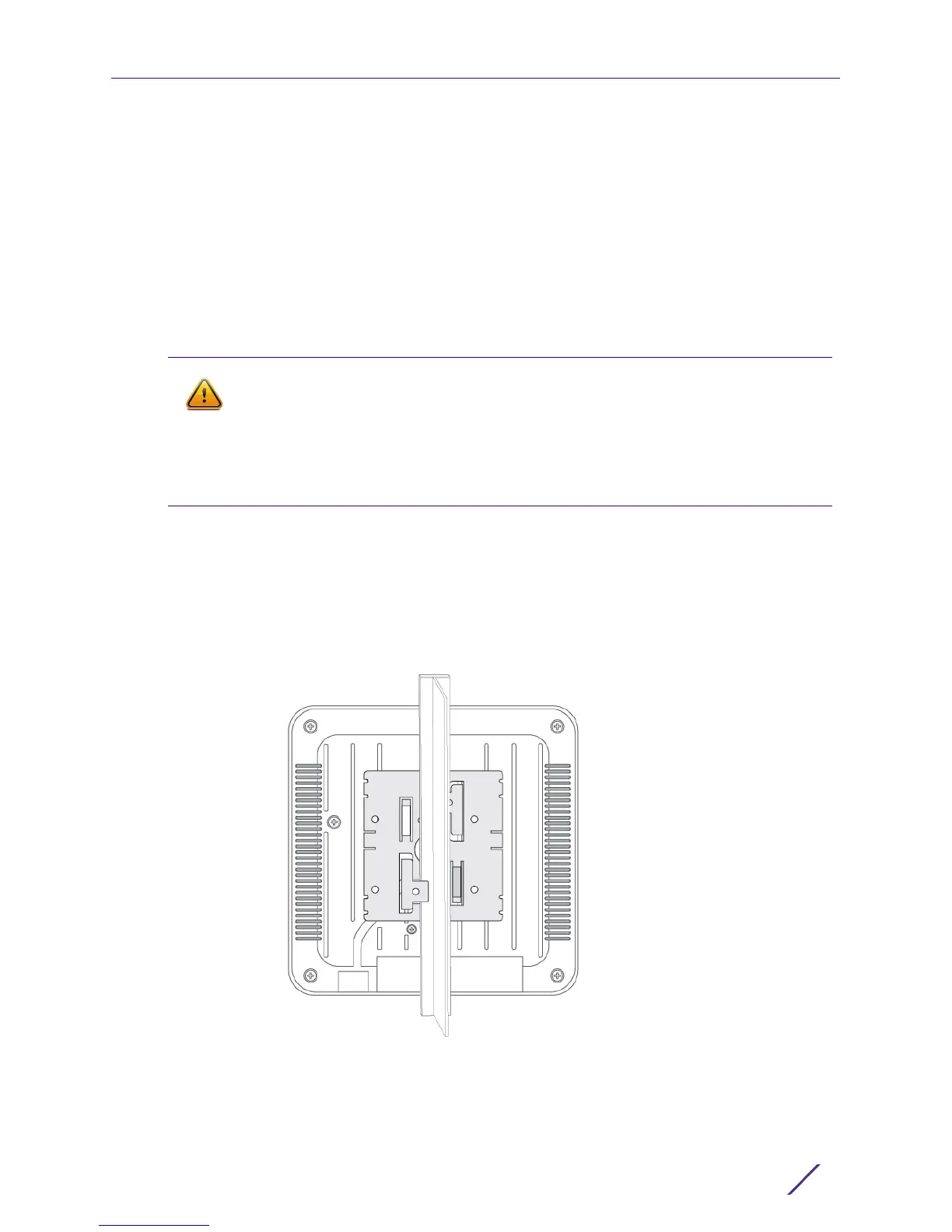

Suspended Ceiling T-Bar Mount Instructions
Ceiling mount requires holding the AP-8432 up against the T-bar of a suspended ceiling
grid and twisting the unit on to the T-bar. If deploying the AP-8432 on a sculpted ceiling T-
Bar, the Access Point mounting kit (Part No. KT-135628-01) can optionally be used as well.
1 Install the mounting bracket on the T-bar, then attach the mounting bracket using the
mounting slots on the Access Point.
2 Cable the Access Point using either the Power Injector solution (AP-PSBIAS-2P3-ATR) or
the approved AP-8432 power supply (PWR-BGA48V45W0WW).
For Power Injector installations:
CAUTION
If not using an AP-PSBIAS-2P3-ATR Power Injector, ensure only the AP-8432’s
designated power supply (PWR-BGA48V45W0WW) is used to supply power
to the Access Point. Using an incorrectly rated power supply could damage the
Access Point and void the product warranty. Do not actually connect to the
power source until the cabling portion of the installation is complete.
