b For a mid-mount, position the bracket so that the flange (ear) is positioned slightly more than
halfway between the front and back of the switch, as shown in Figure 17.

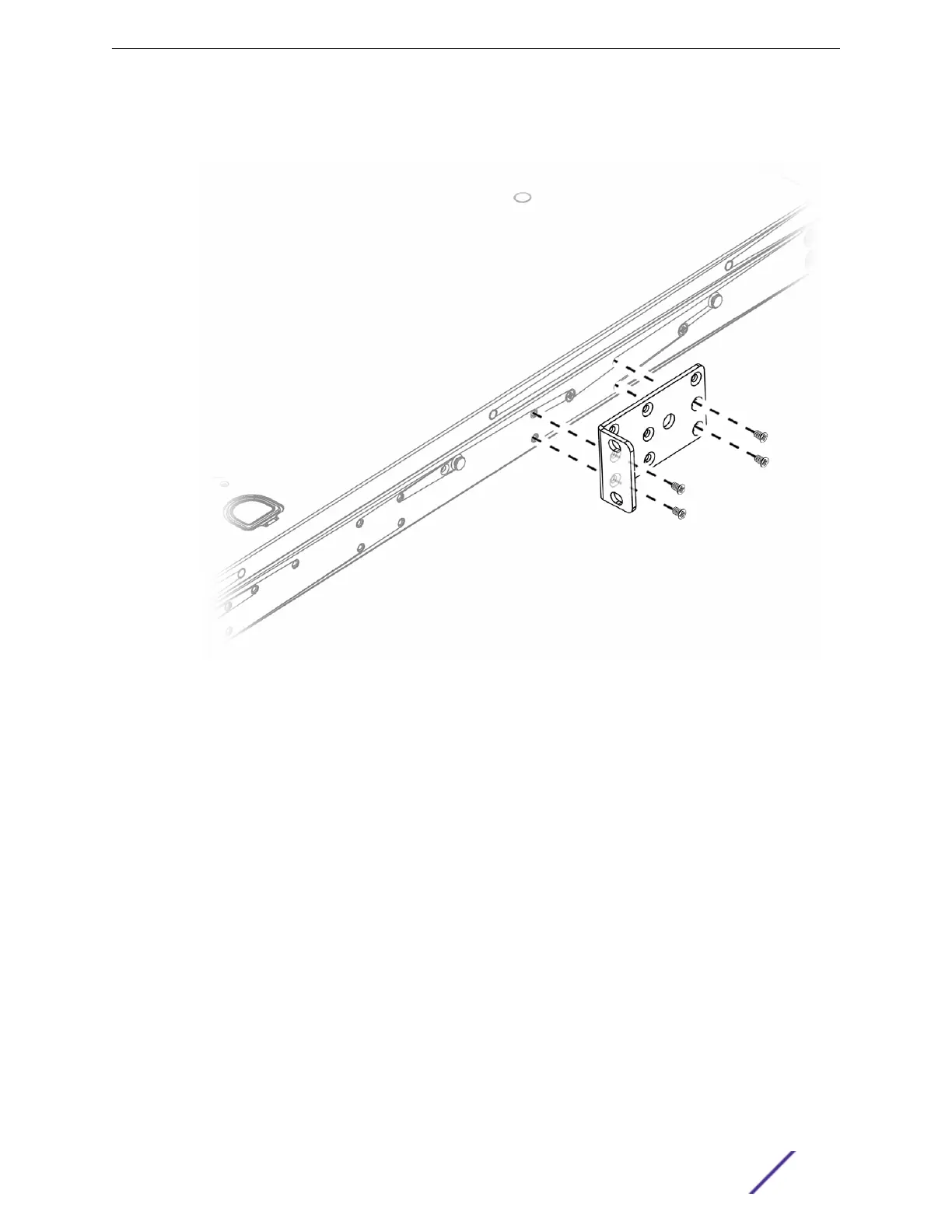

Figure 17: Attaching a Short Mounting Bracket (Ear): Middle of Switch
c Use four small mounting screws (provided) to attach the bracket to the switch.
2 Attach the other short mounting bracket to the other side of the switch housing, as you did in step 1.
3 Attach a long mounting bracket to one side of the switch housing and to the rack post.
a Position the long bracket over the holes between the front and the middle of the switch. Orient it
so that its flange (ear) rests against the rack post.
See Figure 18 and Figure 19.
Installing Your Switch
VSP 7400 Series Switches: Hardware Installation Guide 41
