3 To remove a switch from a four-post rack, do the following:
a Release the tabs on both slider assemblies, and slide the switch away from the rear of the rack.
See Figure 26.

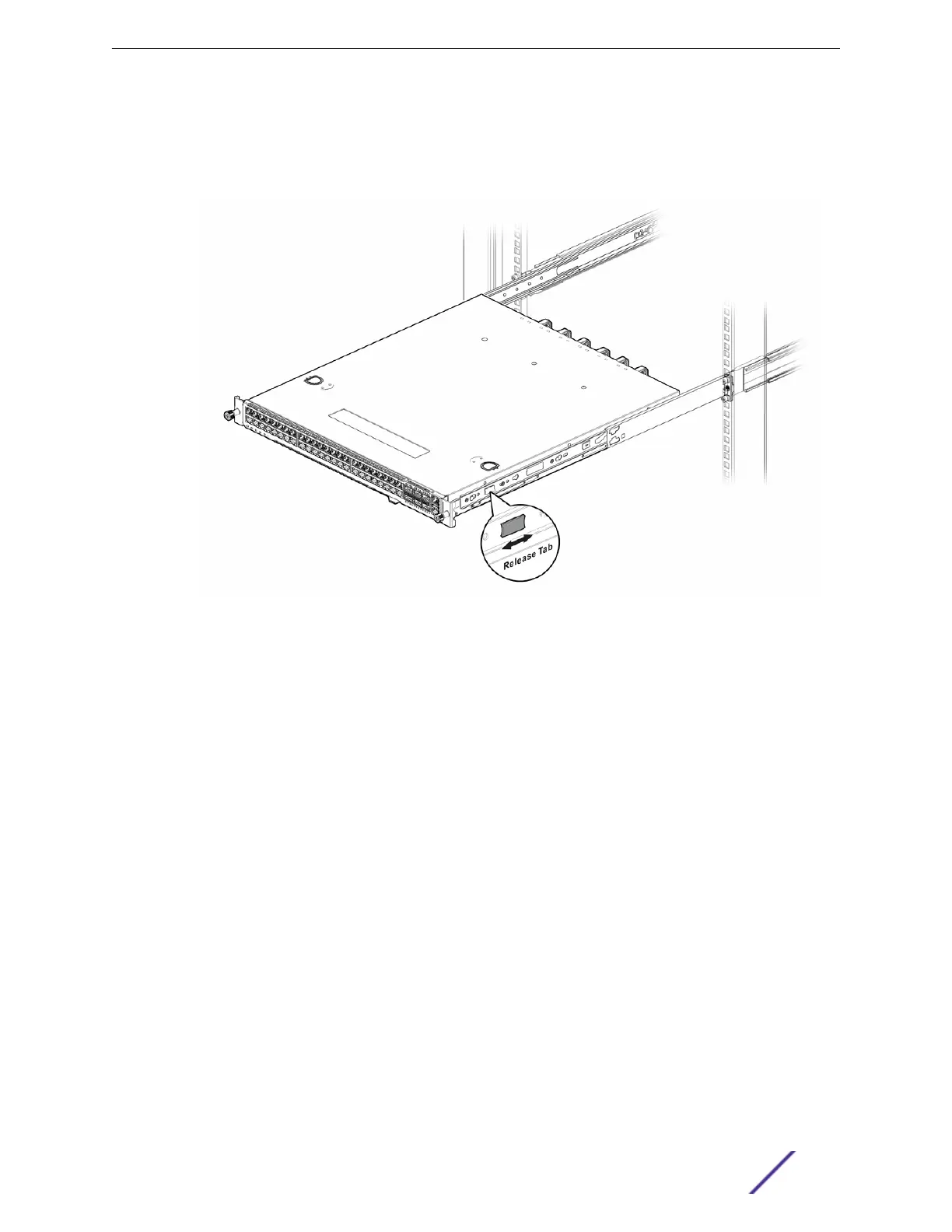

Figure 26: Removing the Switch from the Slider Assemblies
b Disengage the retainers that are connecting the mounting brackets with the sliding rails on both
sides.
c Carefully slide the switch out of the slider assembly and place it on a flat surface.
You can leave the slider assemblies in place. If you want to remove them, continue with step 3.d.
Removing and Replacing Components
VSP 7400 Series Switches: Hardware Installation Guide 58
