e Release the tab that holds the front of the slider assembly to the front rack post, and pull the
pegs out.
See Figure 28.

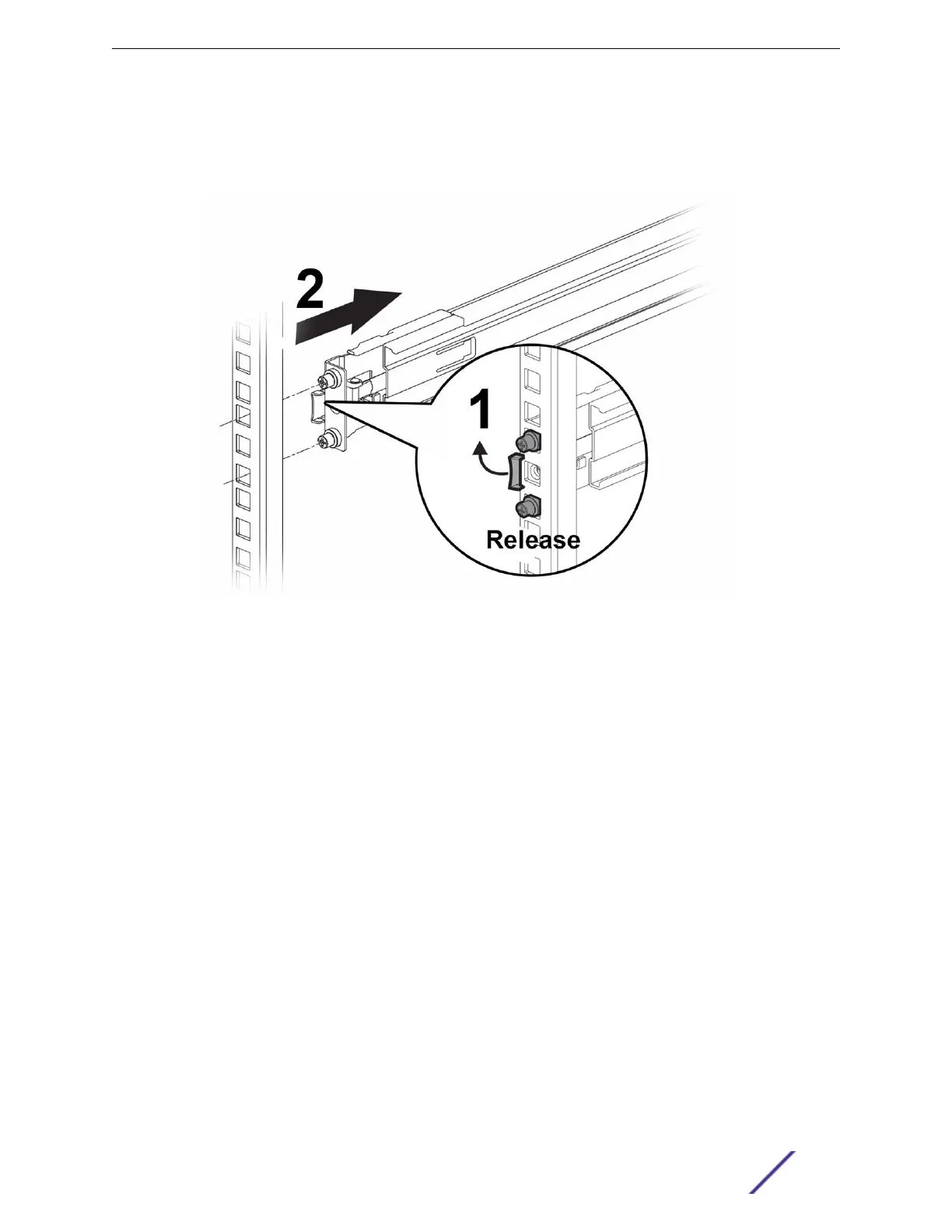

Figure 28: Removing the Slider Assembly: Front Rack Post
f Repeat steps 3.d on page 59 and 3.e to remove the second slider assembly.
4 To remove a switch from a two-post rack, do the following:
a Carefully supporting the weight of the switch, unscrew the mounting brackets from the rack.
b Tilt the switch so that the brackets are clear of the rack posts, and carefully lift it out of the rack.
If the switch cannot be tilted (because other equipment is mounted directly above and below),
remove one or two mounting brackets from the switch and then slide the switch out.
If you plan to use the switch again later, we recommend storing it with the mounting brackets attached.
Removing and Replacing Components
VSP 7400 Series Switches: Hardware Installation Guide 60
