Securing the HDMI Connectors Using the LockIt HDMI Cable Lacing
Bracket

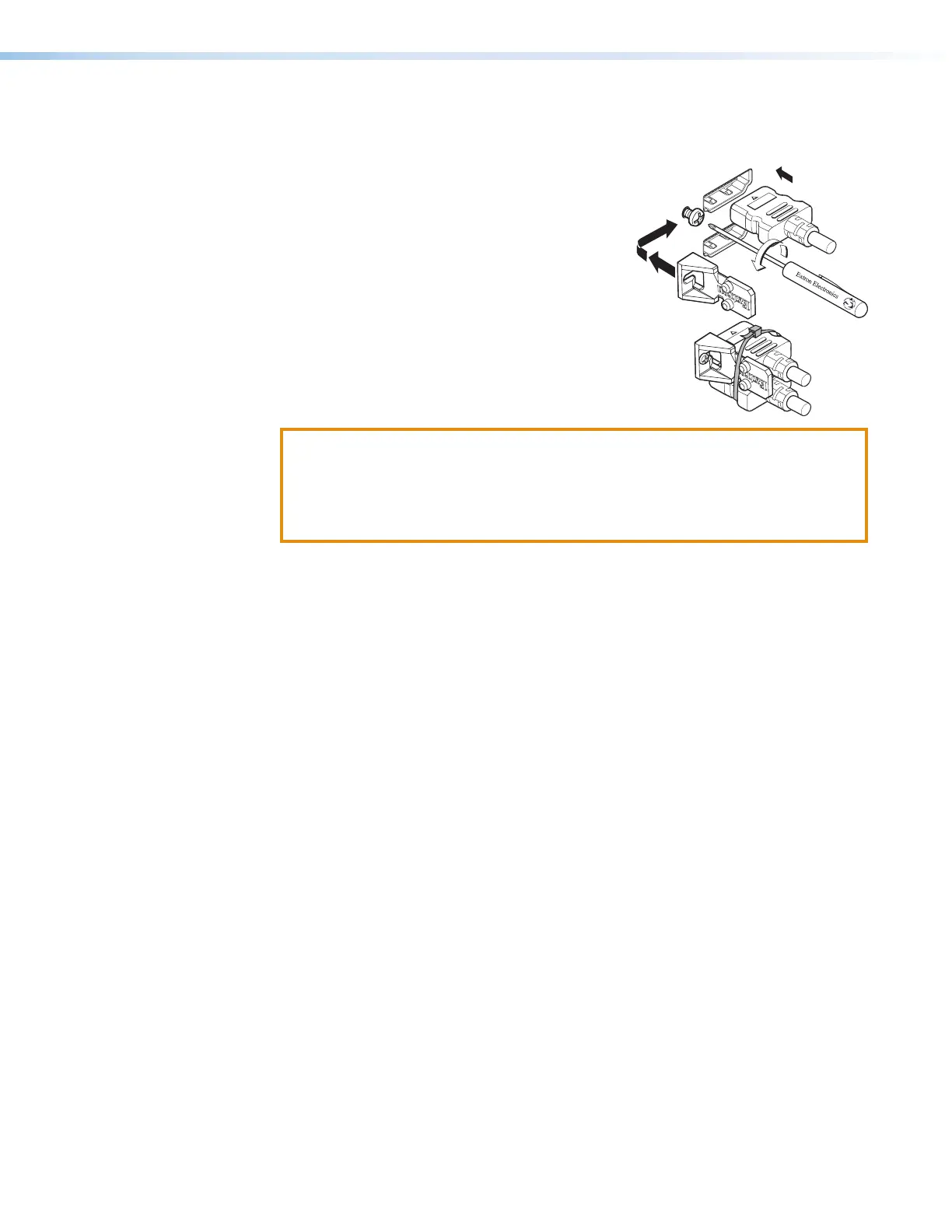

After connecting an input or output device to an HDMI
connector, secure the connector in place with the
provided LockIt bracket (see the illustration at right):
1. Plug one or both HDMI cables into the panel
connection (
1
).
2. Loosen the HDMI connection mounting screw
from the panel enough to allow the LockIt lacing
bracket to be placed over it (
2
).
3. Place the LockIt lacing bracket onto the screw and
slide it up against the HDMI connectors. Tighten
the screw to secure the bracket (
3
).
ATTENTION:
• Do not overtighten the HDMI connector mounting screw. The shield to which it
fastens is very thin and can easily be stripped.
• Ne serrez pas trop la vis de montage du connecteur HDMI. Le blindage auquel
elle est attachée est très fin et peut facilement être dénudé.
4. Loosely place the included tie wrap around the HDMI connectors and the bracket (
4
).
5. While holding the connector securely against the lacing bracket, tighten the tie wrap,
then remove any excess length (
5
).
