MAINTENANCE
Brake Light
Remove the two phillips head screws securing lens
and pull lens out of housing to access the brake light
bulb. Remove the light bulb and install a new bulb,
making sure bulb makes good contact with socket.
Replace the lens and reinstall the phillips head
screws.
FUSE REPLACEMENT
NOTICE: Have the vehicle inspected by your
dealer if fuses continue to blow after
they have been replaced.
1. Lift the seat bottom to access the PDM.
2. Open the PDM to access the fuses.
3. Remove the old fuse and replace with a new fuse
of the same type and size.
4. Fuses are available from a local Distributor, an
authorized Branch or the Service Parts Depart-
ment.
CONTROLLER SYSTEM TEST
At monthly intervals, test the controller by allowing the
vehicle to roll down an incline with the accelerator
pedal released. Braking force should be felt at approx-
imately 2 mph (3 kph) indicating that the system is
functioning. If vehicle speed continues to rise, apply
the brake and have vehicle inspected by a trained
mechanic.

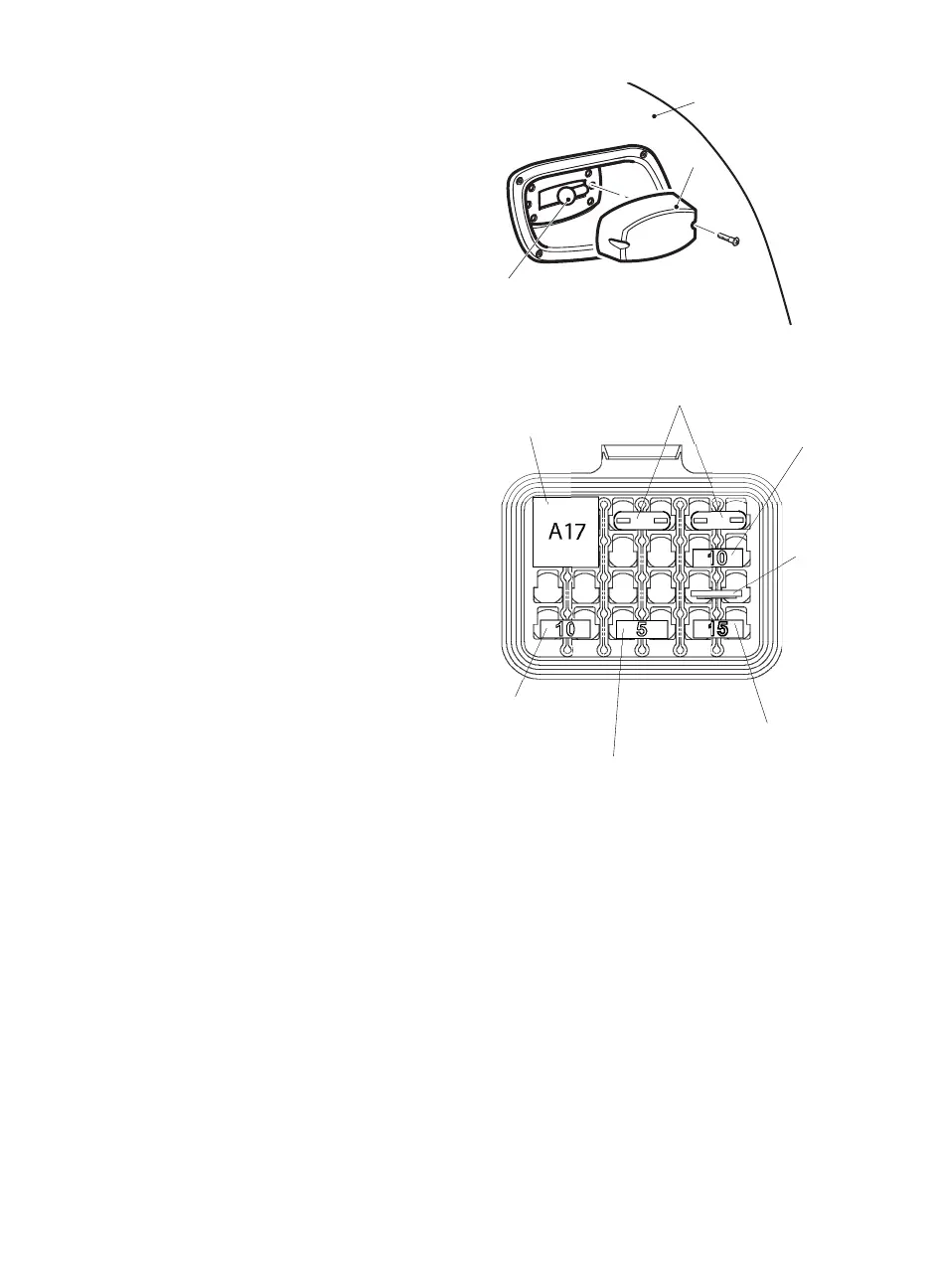

58V, 10A Mini Fuse
32V, 5A Mini Fuse
32V, 15A Mini Fuse
32V, 10A Mini Fuse
A17
12V, 20A Relay
Throttle
Resistor
ȍ
32V, 10A Mini Fuse
To Next Page
