To Attach Coupling To Towball:
619350 (Fixed) & 619200 (Override)
1. Rotate latch handle upward.
2. At the same time pull latch assembly up to lift tongue.
Page 1
2. At the same time pull latch assembly up to lift tongue.
4. Release latch assembly.
5.
Check that the latch has released and is engaged in the
coupling head indicated as “A” below.
SETTING UP YOUR CARAVAN
LOADING YOUR CARAVAN
When heading away on your next big adventure it is important to load your caravan correctly to distribute weight evenly
and achieve a suitable ball weight load and prevent loading in a manner that can cause a caravan to sway and/or roll
excessively left and right. The optimum ball weight on a caravan is between 9 and 11% of the total caravan weight.
WARNING: BALL LOADING (DOWNWARD LOAD ON TOW HITCH) MUST NOT EXCEED 300KG OR THE MAXIMUM
ALLOWABLE LOAD BY THE VEHICLE MANUFACTURER OR TOW BAR RATING, WHICHEVER IS THE LOWEST.
Exceeding t
hese limits may result in an accident causing serious injury or death and/or property damage.
• Always load both sides of the caravan evenly
• Load heavy items low and directly over the axle.
• Secure all items to prevent damage to the caravan during travel.
• Consider water tank levels and how they may affect the balance front and back and the percentage of ball weight.
• Overhead cupboards should only be used for lightweight items such as clothes, personal items, bedding etc.
• Never store heavy items in overhead cupboards.
• Heavy cooking equipment should be stored in lower cupboards.
• Tinned and bottled food for cooking etc should be stored in the pantry cupboard.
• Never load in a manner that causes the ball weight to exceed the limit of the tow vehicle.

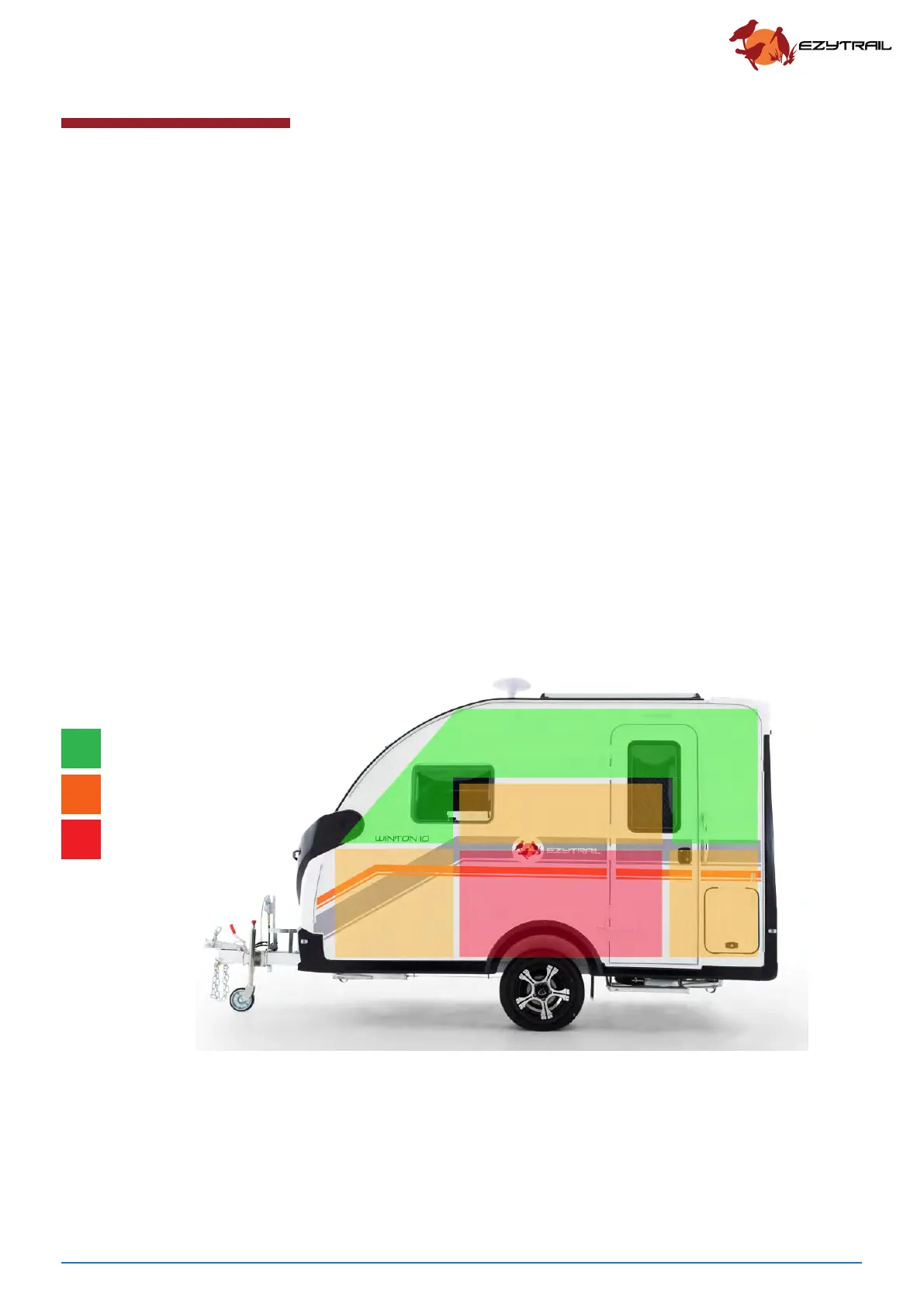

• The diagram below illustrates best placements of items based on weight.
This caravan is fitted with electric brakes and a “Breakaway System”. Requirements for breakaway systems can vary
from state to state. It is mandatory to supply a maintenance charge to the breakaway battery source while driving. You
MUST ensure this capability is fitted to your vehicle. The maintenance charge is supplied to the caravan via the Anderson
plug on the drawbar.
LIGHTWEIGHT ITEMS
MEDIUM WEIGHT ITEMS
HEAVY ITEMS
