MANUAL THERMOCOAGULATION - EVRF
Date
Page 24 of 34 Revision N° : 18

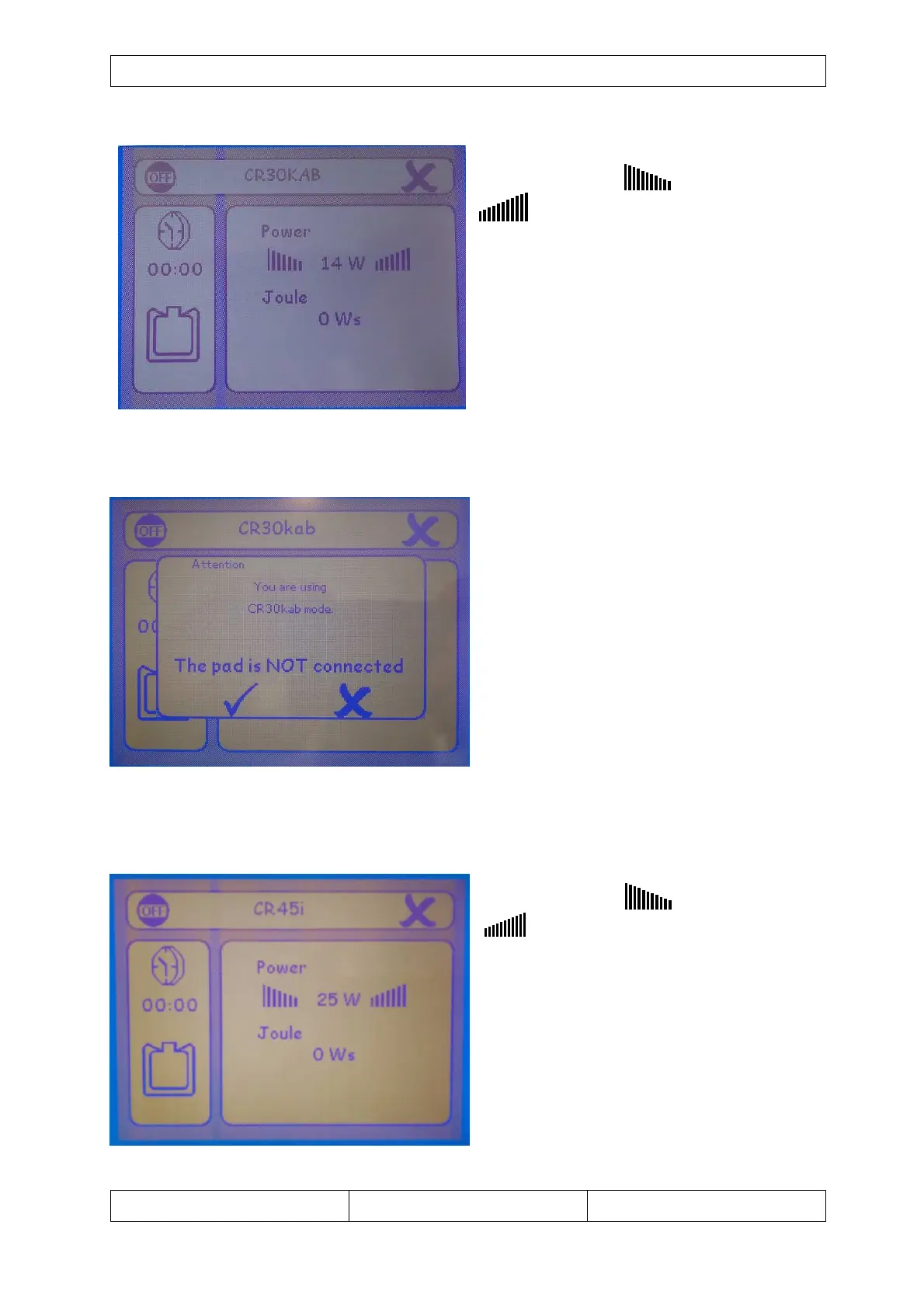

5.2.2 CR30KAB catheter
- The Power setting, standard on 16Watt,
can be decreased or increased
between 8W and 25W.
- Continuous mode. When the pedal is
pressed the output is active until the pedal
is released.
- “logo” Indication of whether or not the pad
is connected.
Joule:
-This is the sum of the amount of energy
generated over a period of time.
The EVRF will give a sound beep every two seconds, so you know that every beep, you
have generated 2 times the watt that was set on the EVRF. This is the amount of joule that
the EVRF generated.
When pressing the “OFF” button the device
will check if the output cable is connected.
If the cable is not connected a beep is
given and the device remains in “OFF”
mode.
If the output cable is connected, then a
pop-up screen is shown with the status of
the pad. When you accept the pop-up then
the device will be place in “ON” mode.
If the pop-up is declined, then the device
remains in “OFF” mode.
You can also leave the program and return
to the program selection by pressing .
5.2.3 CR45i catheter:
- The Power setting, standard on 25Watt,
can be decreased or increased
between 20W and 25W.
Continuous mode. When the pedal is
pressed the output is active until the pedal
is released.
LOGO Indication of whether or not the pad
is connected.
Joule:
This is the sum of the amount of energy
generated over a period of time.
