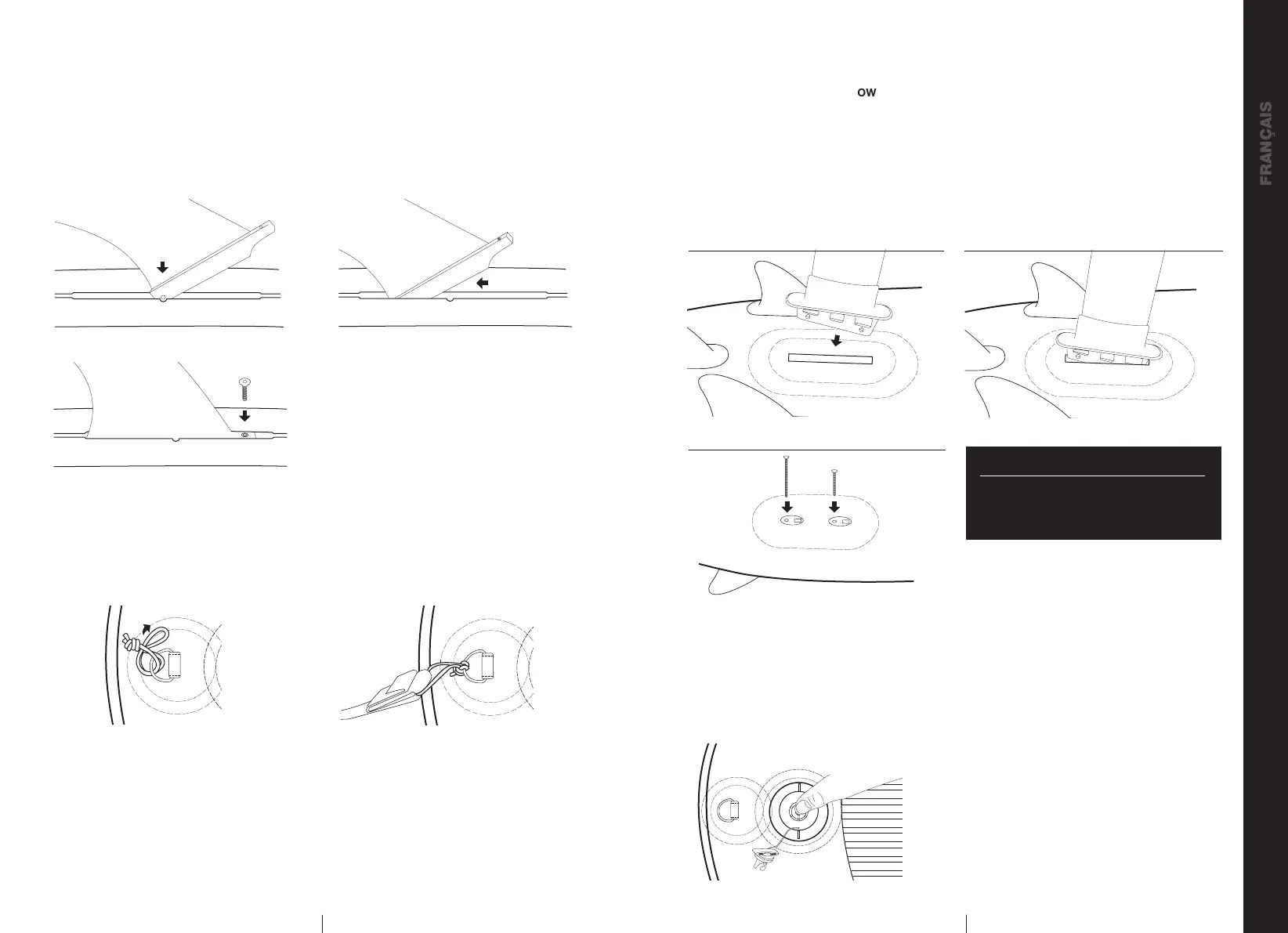

INSTALL THE FIN - (US EMBASE)
CERTAIN TYPES OF CONDITIONS WILL JUSTIFY THE USE OF A LEASH WHILE STAND UP PADDLE
BOARDING. THE LEASH CONNECTS THE RIDER TO THE BOARD. A LEASH WILL BE REQUIRED
WHEN IN WAVES AND ON FLAT WATERS IN AN OPEN OR CLOSED BODIES. THE LEASH MUST BE
INSTALLED THIS WAY:
Untie the string connected to your leash, then
pass it into the leash plug and tie it in a clove
hitch.
Then reconnect your leash to the string.
Do not use your board without a leash when the conditions require one. Losing contact with your board
can be dangerous for yourself and to others around you. Always use a leash in good condition and
make sure that it is at least as long as your board. It is also necessary to adapt the diameter of the leash
to the size of the board. We recommend 8mm leash for inflatable boards as they have more volume.
Your inflatable F-ONE board is equipped with a
removable fin, here’s how to install it. It is a fin
with a «US» base system. To install the fin, insert
the washer plate into the front half of the fin box.
Then slide the fin into the box by sliding the
studs into the rail. You can adjust the fin position,
forward or back inside the rail.
Once the correct position is selected, tilt the fin
forward until the hole in the fin and washer plate
line up, then insert the screw and tighten.
ATTACHING THE LEASH
—1—
—1—
—3—
—2—
—2—
To deflate the board, open the valve cap to
access the valve. Press the rod and turn a
quarter turn to open the valve and keep it in the
open position. Due to the high pressure of the
air in the board, you must press hard to open
the valve and prepare for a noisy air outlet.
Let the board deflate, then roll it to store in its
bag. Remember to close the valve after rolling
the board to prevent sand or other external
elements from getting inside it.
Once the board is inflated, place it upside down
and insert the tuttle head of the foil. Rotate the
board to the side to access the top of the box.
Insert the screws into the circular holes (don’t
forget the washers) and tighten firmly. The tuttle
head is longer in front than behind.
It is therefore necessary to use the shorter screw
in front and the longer one behind. Hydrofoil
flights cause very slight vibrations that tend
to loosen the screws. Check regularly that
both screws are properly tightened.
IF YOU HAVE A ROCKET AIR SURF OR ROCKET AIR SUP BOARD, THESE BOARDS ARE EQUIPPED
WITH A TUTTLE BOX THAT ALLOWS THE ASSEMBLY WITH A HYDROFOIL. TO CONNECT THE FOIL
TO THE BOARD, FOLLOW THE INSTRUCTIONS BELOW.
BOARD UPSIDE DOWN
BOARD ON TOP
INSTALL THE FOIL INTO THE TUTTLE BOX
DEFLATE THE BOARD
Screw sizes used
- 1x M6-100mm + 1x M6-80mm hexagonal head screw
(316 stainless steel)
- 2x M6-14mm (outside diam) washers (316 stainless
steel)
