Ceiling/Shelf drilling and Plate Fixing
CEILING/SHELF DRILLING

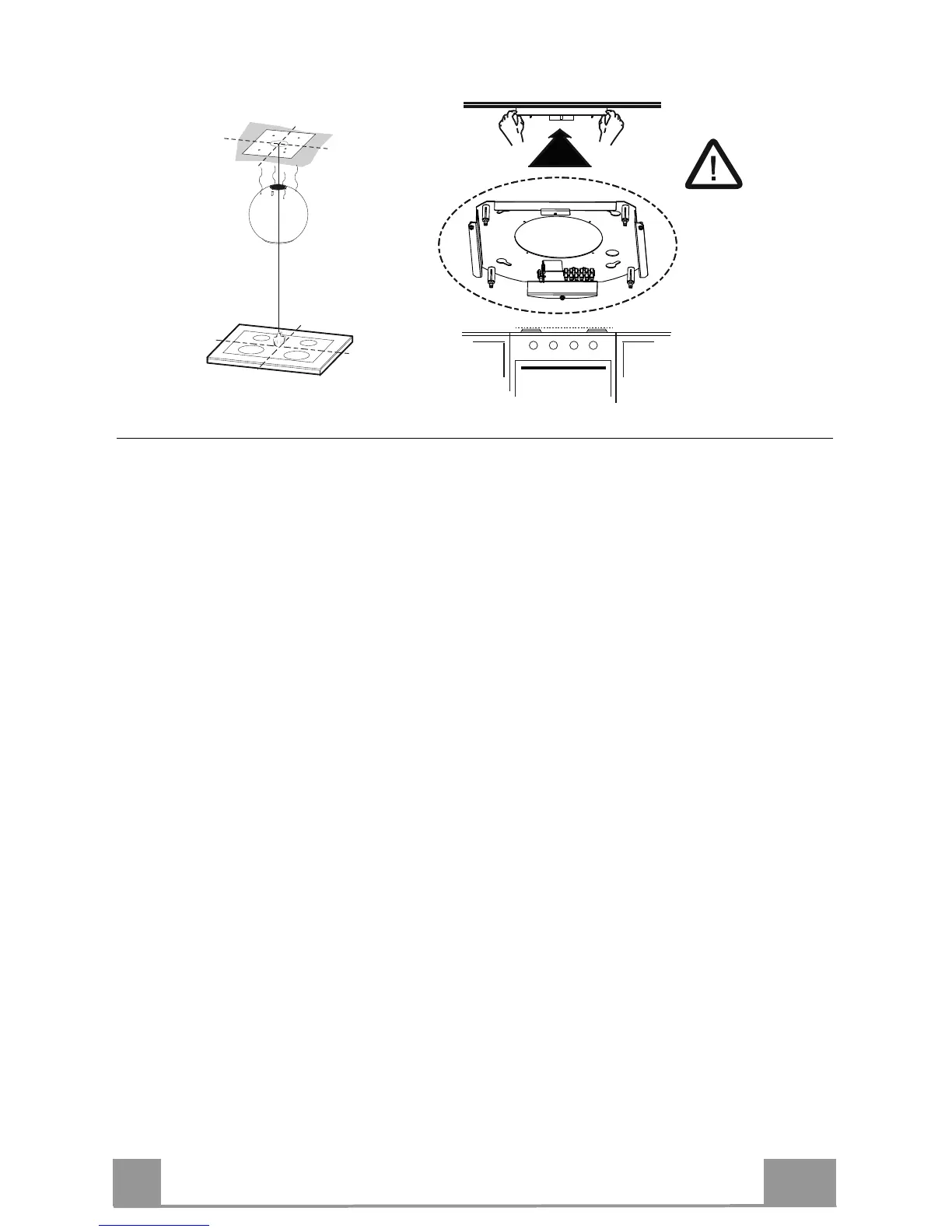

! Use a plumb-line and mark the centre of the cooking hob on the Support Ceiling/Shelf
! Rest the Plate against the Ceiling/Shelf, making sure it is the right way up, as shown in the
figure.
! Mark the centres of the holes in the plate.
! Drill the following points:
! Ceilings in solid concrete: As per concrete plugs used.
! Ceilings in hollow bricks with 20 mm resistance thickness: Drill a hole ø 10 mm (insert
Plugs 11 supplied immediately).
! Ceilings with Wood Beams: As per Wood Screws used (not supplied).
! Wooden shelf, with a resistant thickness of 15 mm: drill a hole ø 7 mm.
! Feeding the electric supply cable: drill a hole ø 10 mm.
! Insert two screws, crossing them and leaving 4-5 mm from the ceiling:
! for solid concrete, concrete plugs, not provided.
! for hollow bricks with approx. 20 mm resistance thickness, screws 12h, provided.
! for wooden beams, wood screws, not provided.
! for wooden shelves, screws with washers and nuts, not provided.
