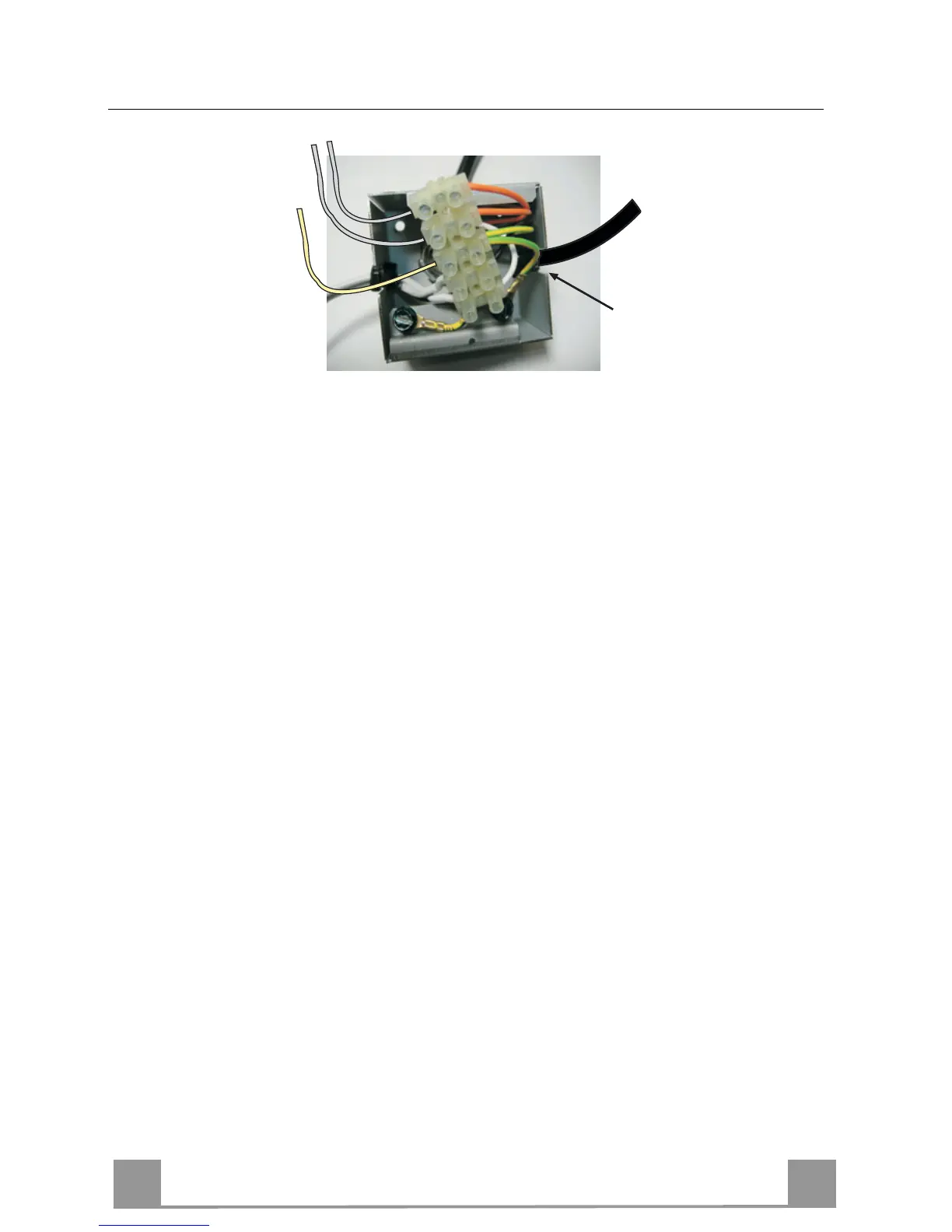

Electrical connection
A
B
C
D
• In case the hood is to be used together with a remote device, such as external fan or shutter,
then proceed following the instructions here below:
1. Loose the screws to remove the cover;
2. In case the earthing connection is necessary connect the (C) cable to the green/yellow
cable of the terminal board;
3. Connect the cables of the remote device (A/B) in the terminal board corresponding to
orange cables;
4. Use the pliers to extract the cable inlet grommet (D) and open it so that the cable of the
remote device can pass inside. Replace the cable inlet grommet in its seat once you
have finished this procedure.
• Connect the green yellow earthing cable of the hood to earthing cable of the building.
• Connect the hood to the mains supply.
Important: Remote device Max.100W
