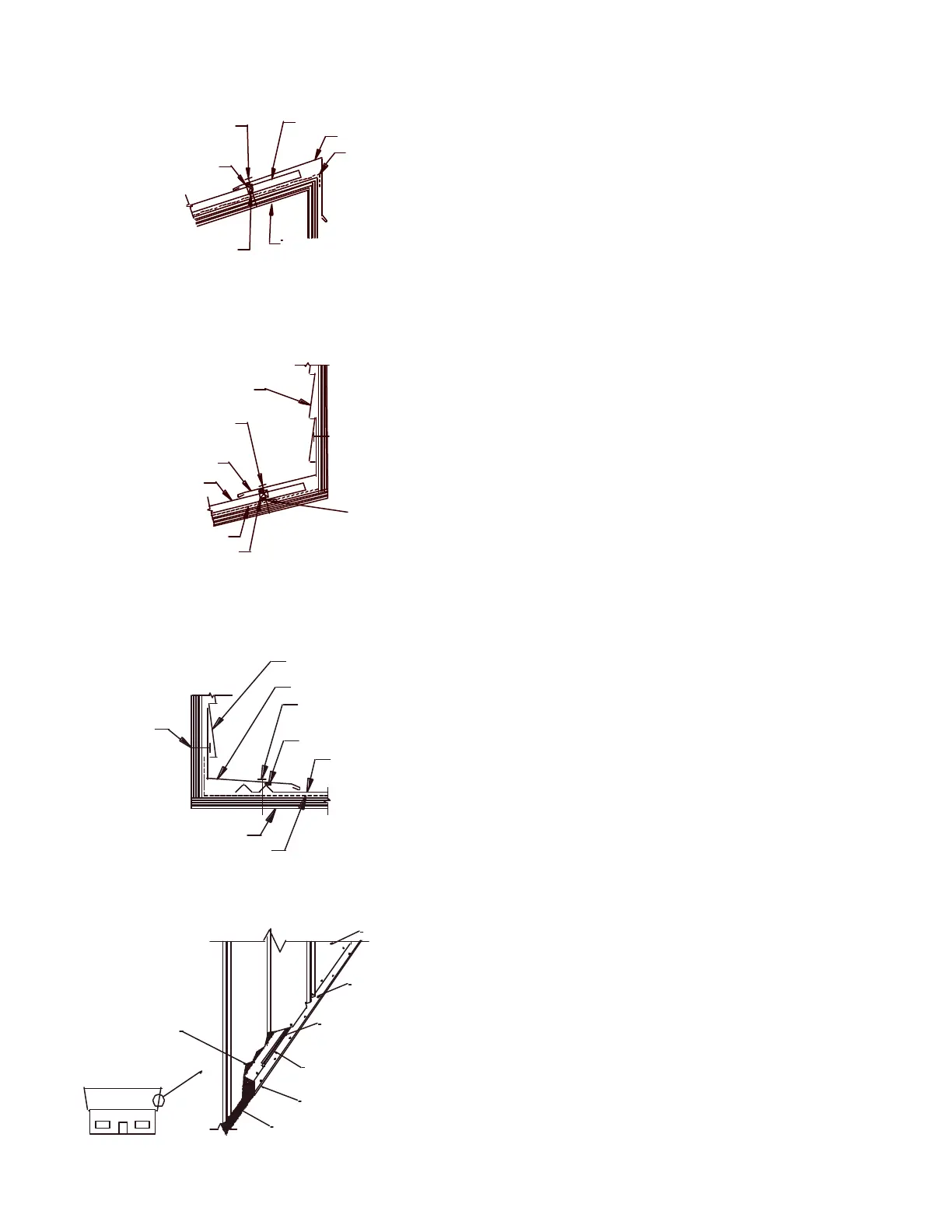

MONOSLOPE PEAK CAP
#14 x 1 1/2" LONG FASTENER
AT EVERY RIB
(12" O.C.)
OUTSIDE CLOSURE
SEALANT TAPE
TOP & BOTTOM OF
CLOSURE OR SEALER
STRIP
30# ROOFING FELT
5V ROOF PANEL
CP-1
ROOF STRUCTURE
Notes:
1. Apply sealant to the bottom of the outside closure
and position it on the roof panel about ½” up
from the edge of the flashing as shown.
2. Apply sealant to the top of the closure.
3. Install flashing as shown.
4. When more than one length of flashing is used,
a 6” minimum overlap is recommended. Apply
sealant between the laps.
ENDWALL DETAIL
OUTSIDE CLOSURE
#14 x 1 1/2" LONG FASTENER
AT EVERY RIB
(12" O.C.)
5V ROOF PANEL
SIDING
FLASH ASW-1
30# ROOFING FELT
BUTYL TAPE
TOP & BOTTOM
OF CLOSURE
Notes:
1. Install the outside closure as shown using sealant
on the top and bottom.
2. Install endwall flashing as shown.
3. When more than one endwall is needed, a 6”
minimum overlap is recommended with sealant
between the lap.
SIDEWALL DETAIL
BUTYL SEALANT
5V ROOF PANEL
30# ROOFING FELT
ROOF SHEATHING
#14 x 1 1/2" SCREW
@ 9" C/C
ASW-1
SIDING
FASTENER
Notes:
1. The sidewall flashing is placed over the panel rib
and placed behind the siding as shown.
2. When the panel rib seam does not end up next
to the wall, cut the panel and bend a 1” return
up the wall. (As shown below)
SWEPT WING GABLE
30# ROOFING FELT
BUTYL SEALANT TAPE
TOP & BOTTOM OF
SEALER STRIP
SEALER STRIP
(ASPHALT IMPREGNATED)
FASCIA BOARD
CE-1 FLASH
FASTENER
5V ROOF PANEL
Note:
1. In high rain areas, FABRAL recommends that a
high grade underlayment, such as ice and water
shield, be placed 24” along the gable prior to
installation of 30# roofing felt.
2. Install CE-1 Eave Trim along gable. Install 1 x 1
sealer strip with butyl sealant top and bottom.
3. Panels must be field cut to the proper angle to
fit the gable.
4. Fasten the panels through the flashing and into
the deck following the eave fastening pattern
