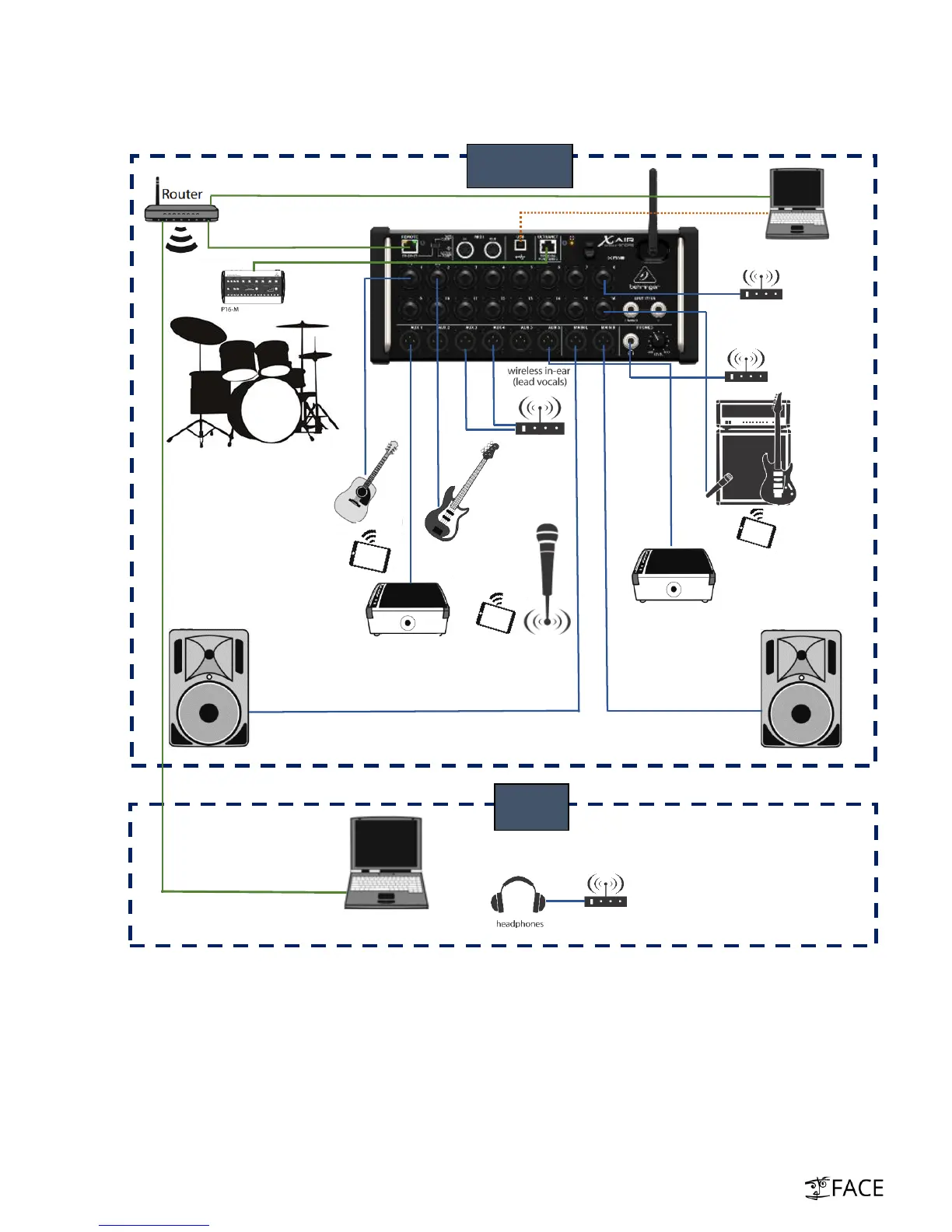

Hook-up example – Live performance Band – Ethernet mode – no dependency on WiFi
Overview
 XR18 on stage in Ethernet mode (DHCP Client) Cat-5 connection to Dual-band WiFi Router
 Laptop at FOH and Stage-side for reliable wired remote-control
 Laptop on stage simultaneously captures 18 track live-recording
 5 GHz WiFi connection to musicians’ iPads on stage for controlling individual monitor-mixes
 Individual monitor mixes are sent via Aux Outputs to Monitors or in-ear
 Acoustic Guitar & Bass directly connected to High-Z inputs without DI-boxes
 FOH Speaker connected to Main L/R Output
USB MTK Recording & Control
STAGE
FOH
Wired Remote Control / Mixing
