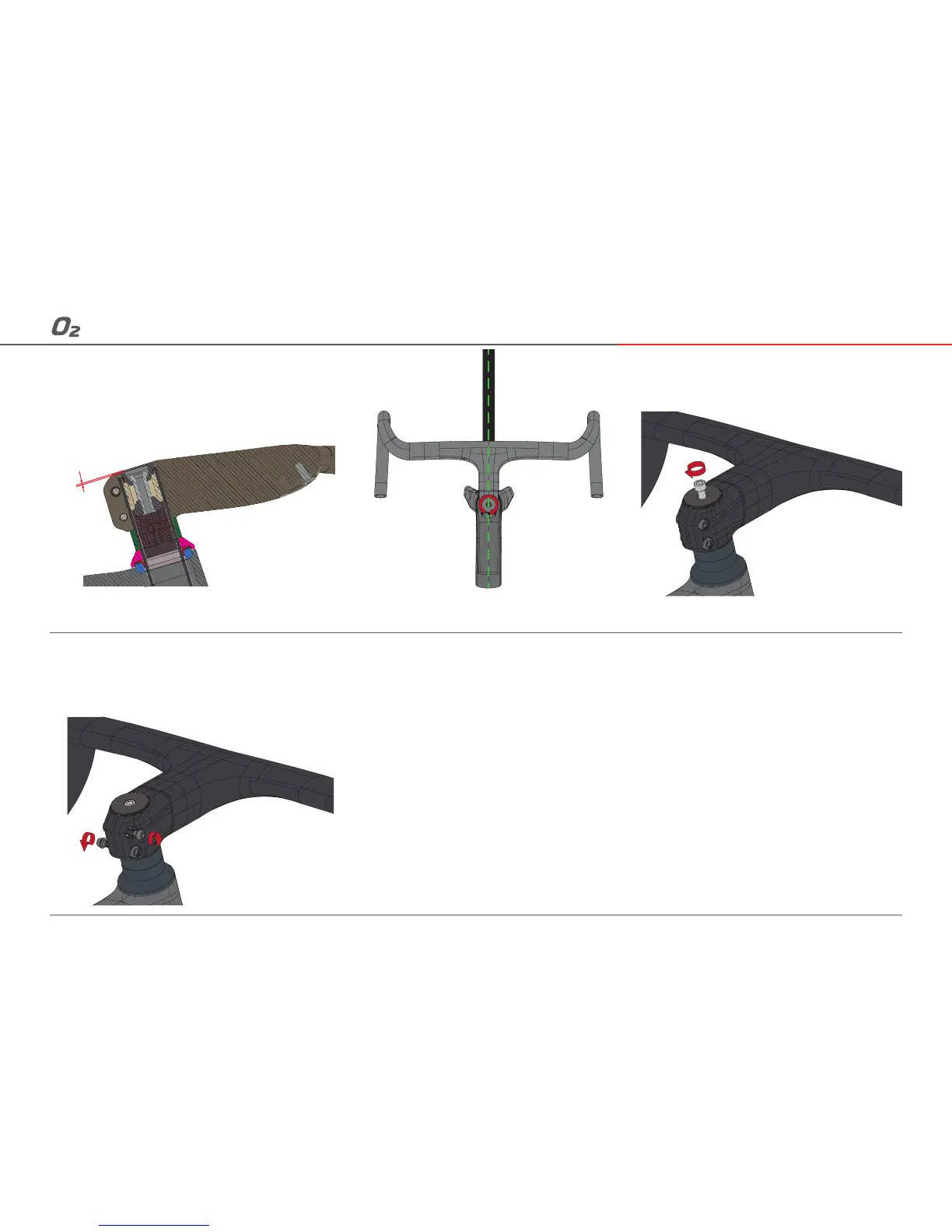

Install top cap using M5 bolt and align the barstem with the
front wheel.
Tighten the headset top cap bolt until there is no
bearing play but the headset still spins freely.
With the Black Inc barstem, during reassembly,
check that the top of the headset compression plug is
no more than 3mm below the top of the stem. (If
using an aftermarket stem we recommend using a
5mm spacer above the stem)
Assembly Manual 07
4-4
4-7
4-5 4-6
3mm
max
Evenly tighten the barstem bolts step by step to
5.2 Nm.
DO NOT completely tight one bolt then the other
one, it would weaken the stem.
