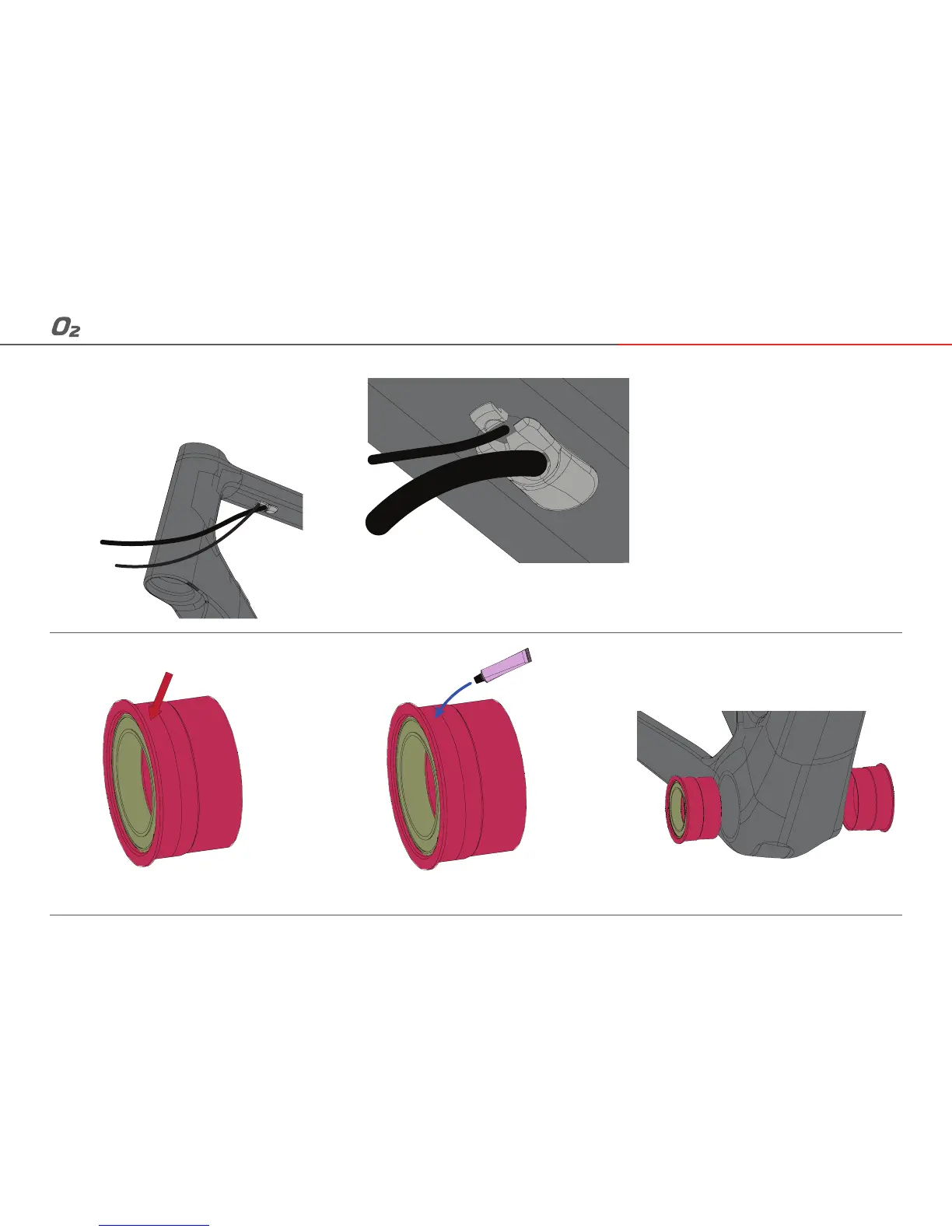

Clean the inside of the frame bottom bracket & the bottom
bracket cups with an isopropyl alcohol.
Apply Loctite 641 on the grooves of the both bottom bracket
cups.
Install the cups into the frame with BRT-002
bearing press from Enduro Bearings.
7-1
Bottom Bracket
Route rear brake inner wire through top tube as pictured
Cut the cable housing to the correct length
Assembly Manual 09
6-1
Rear brake cable routing
Di2 wire
Brake
housing
Di2 wire
Brake
housing
