fadini COMBI 740 - Ideal Use of Combi 740 Operator; Usage Guidelines for Combi 740 Versions; Installing the Enclosure; Enclosure Installation Warnings

- Combi 740 Normal version, 110° rotation:
1) The Combi 740 110° can be used on any leaf, always with an electric lock.
2) For leafs
longer than 2.50 meters use of the Combi 740 with brake is recommended.
3) For special 4.0 and 5.0 meter leafs a Flow regulator must be installed.
4) The static weight that the Combi 740 can bear is 700Kg, for a 1.0 meter long leaf. If this
length is exceeded the weight of the leaf must be decreased (Pic.7).
- Combi 740 locking version, 110° rotation:
All previous four points apply.
5) The Combi 740
Locking is recommended for leafs up to 2.0 meters long, without an
electric lock. An electric lock is always necessary for leafs that are longer than 2.0 meters.
- Combi 740 Normal version, 175° rotation:
All previous four points apply.
- Combi 740 Locking version, 175° rotation:
All previous five points apply.
Maximum leaf length 1.0 meter Maximum weight 700 Kg
Maximum leaf length 2.0 meters Maximum weight 400 Kg
Maximum leaf length 3.0 meters Maximum weight 300 Kg
Maximum leaf length 4.0 meters Maximum weight 250 Kg
WARNINGS: ensure that the gate structure is suited to the operator and check to see
if the fixed and moving parts require any special reinforcements for installation,
making sure that there are no obstacles or friction during the entire movement of the
leaf.
The normal enclosure must be cemented to the base of the gate in order to receive
and secure the operator. However, the lower leaf hinge must be removed first because
the Combi 740 rotation shaft acts as a lower rotation hinge (Pic.8).
Brickwork
Remove the lower
hinge
(if present)
Top hinge
Hole for piping
to the electronic
programmer
Hole for normal
enclosure housing
Underground piping
for the passage of
the electric power
cable
Layer of gravel
for fluid drainage
Normal enclosure
installed flush with
the ground
Set up drainage piping
that directs
rainwater outside
the enclosure
50
350
500
220
SETTING UP AND SECURING THE ENCLOSURE
Dig a hole at the base of the column in accordance with the measurements indicated in Pic.9. At the same time, pre-set an
underground pipe to connect
the enclosure to the installation site of the Electronic programmer (it is recommended that the Programmer be installed in a protected and dry place);
the pipe must be of a suitable diameter to permit the passage of the operator's power cables (corrugated pipe Ø20 - Ø25mm).
COMBI 740
1.0m
700Kg
2.0m
400Kg
3.0m
300Kg
4.0m
250Kg

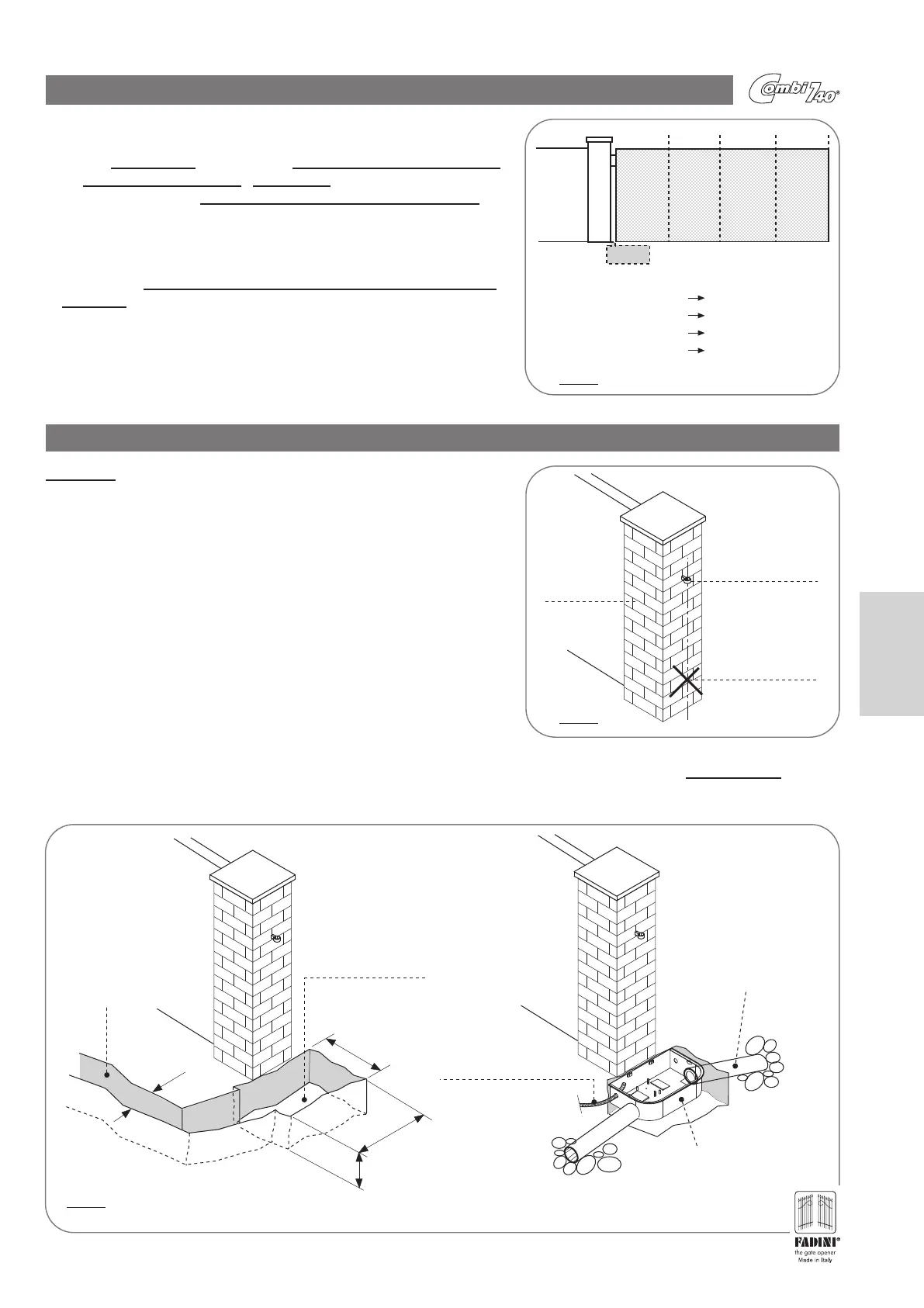

IDEAL USE OF THE COMBI 740 BELOW GROUND OIL-HYDRAULIC OPERATOR
INSTALLING THE ENCLOSURE
PIC. 7
PIC. 8
PIC. 9
