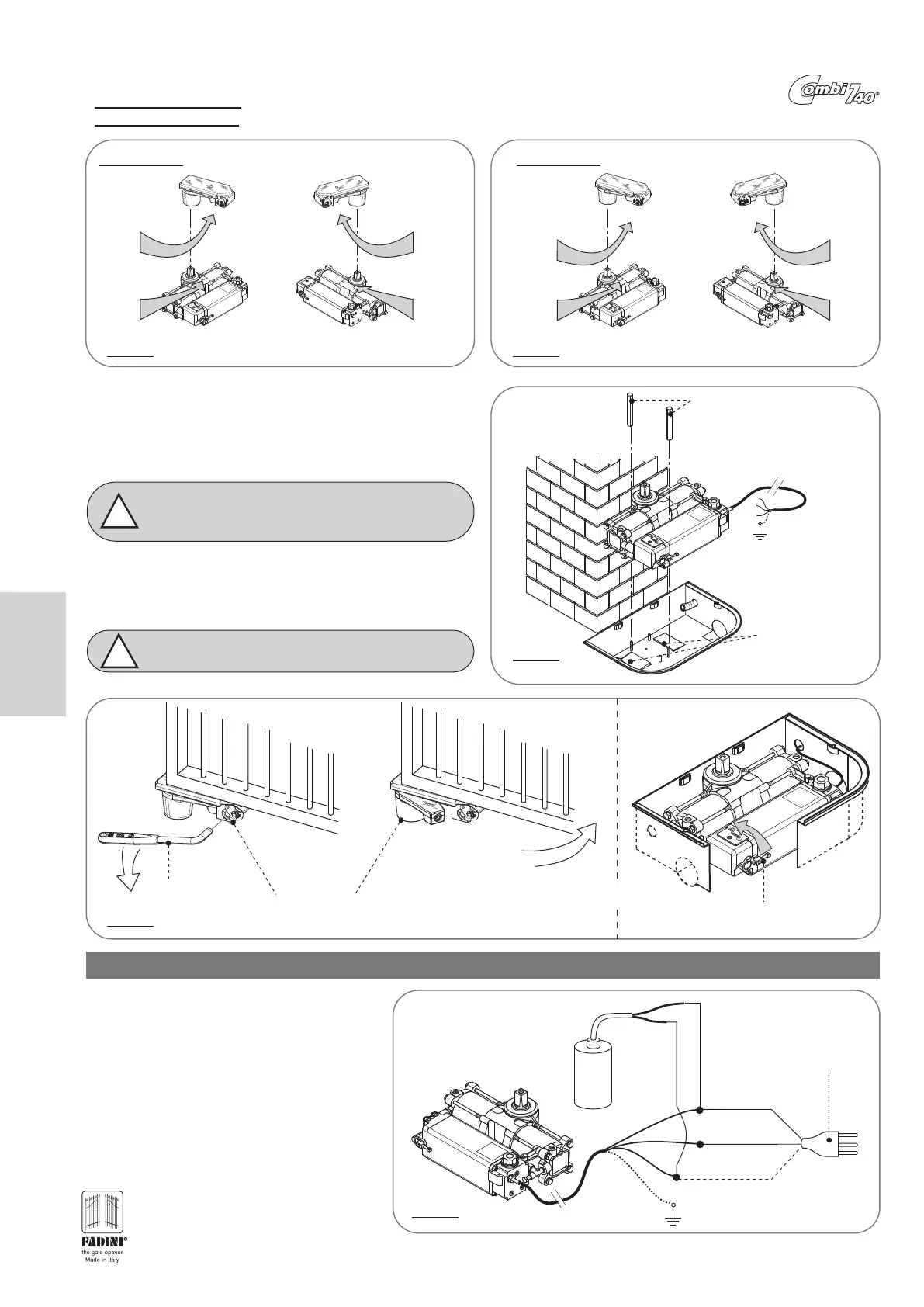

PIC. 16
IMPORTANT: the emergency manual release is installed differently for the 110° and 175° versions.
-
The RIGHT Combi 740, 110°, is paired with the RIGHT (Dx) emergency manual release, and the LEFT with the LEFT (Pic.16).
-
The RIGHT Combi 740, 175°, is paired with the LEFT (Sx) emergency manual release, and the LEFT with the RIGHT (Pic.17).
Sx Dx
Dx
Sx
Dx
Sx
Sx
Dx
110° Combi 740
175° Combi 740
- The Combi 740 is inserted into the enclosure, secured using the two
hexagonal studs and held in place by two raised slits at the base of the
enclosure (Pic.18).
- After inserting the Right and Left Combi 740 into the enclosures, the gate
leafs can be installed.
!
Important: before beginning any operation, even manual, the
closing and opening gate stops must be installed (Pic. 15, pg. 23).
The first opening manoeuvres, even manual, can be carried out by “releasing”
the Combi 740 from the leaf, using the release key (if the emergency manual
release is installed), or by turning the release lever of the hydraulic jack
(Pic.19).
E13 hexagonal studs
for securing the Combi 740
to the normal enclosure
Guide slits
!
Attention: this lever must always be closed during normal
Combi 740 operation.
FIRST OPERATION TESTS
To carry out the first shaft rotation tests, the power supply
can be connected directly to the Combi 740 motor.
Make the connection in accordance with the diagram
in Pic.20, adding a 12.5
μ
F condenser, installed in parallel
with the two phases. To invert the shaft rotation direction,
swap the connections of the phases.
12,5 μF
Sx
Mains power
230V 50Hz
single-phase
Red - Phase
Red - Phase
Blue - Common
Yellow Green - Earthing
OR
Hydraulic jack
release lever
Release key
Emergency manual
release
PIC. 17
PIC. 18
PIC. 19
PIC. 20
