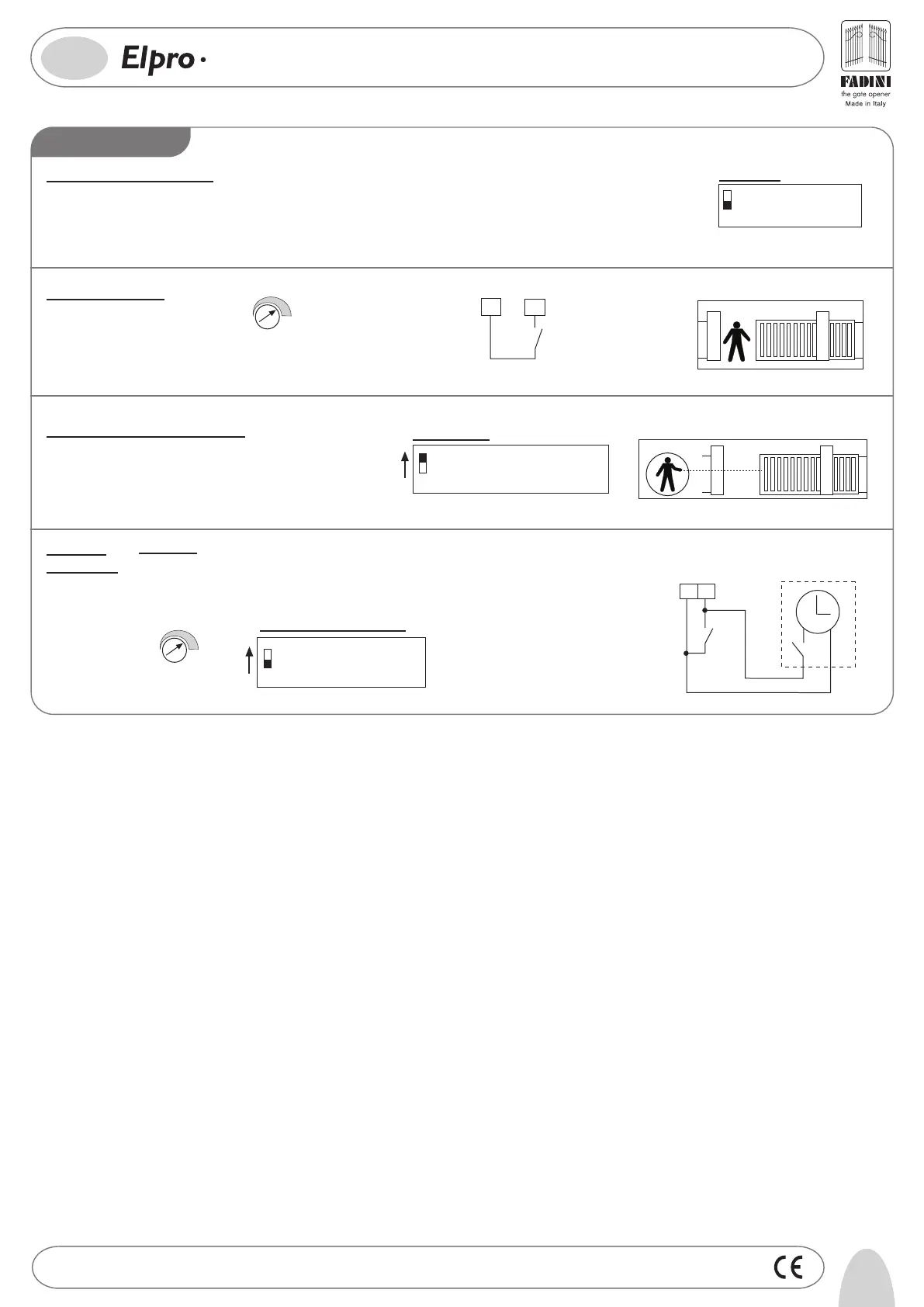

Hold on switched (Deadman) control:
Automatic / Semiautomatic:
Open and Close operations are achieved "by holding a switch on" (no relay
self-holding is involved) therefore a phisical attendance is required to keep
the gate opening or closing until either the button or key is released.
Automatic Operation: any pulse opens the gate, the gate stays open
as long as the Dwell time expires as set by T2 trimmer, then it closes
automatically, no pulsing is required.
3
DIP-SWITCH N°3
ON= Automatic Closing
OFF= No Automatic. Semi-
automatic closing by pulse
6
DIP-SWITCH N°6=ON
ON= Deadman Control. Dip-switch 4=OFF
and Dip-switch 3=OFF
OFF= Standard Operations
Pedestrian Opening:
Trimmer T4
-
+
from 3 to 30s. It can be activated
by any pulse (eg. by remote control)
superior to 2s
43
COMMON
COMMON
OPEN
NO
How it works: Set the clock to the required times. On the pre-set time the gate is automatically opened and held
open. Any further pulsing (even by remote control) is not accepted by the system until the time pre-set by the
clock has expired. On expiring and after the pre-set dwell time the gate is closed automatically.
T4 trimmer on to zero, Dip-Switch 3=ON.
Time clock
installation:
DIP-SWITCH No.3=ON Automatic Closing
3
ON= Automatic Closing
OFF= No Automatic. Semi-automatic
closing by pulse
-
+
Pedestrian Trimmer T4
set on to zero
COMMON
OPEN
4
3
External Time Clock
PLUS
15
GB
7
4136
Drwg. No.
SINGLE-PHASE CONTROL PANEL WITH
MICROPROCESSOR FOR GIRRI 130 SLIDING GATE OPERATOR
Semi-automatic Operation: any pulse opens the gate that stays open.
A second pulse to Close is required for the gate to close.
®
