fadini Elpro 27 - Sliding Gate System Electrical Connections; 24 V Output, Electric Lock, and Motor Wiring; Flasher, Power Supply, and LED Wiring

page 16
FOR SLIDING GATE SYSTEMS Dip-B N°1=ON
27
meccanica
FADINI
GB
27
UNIVERSAL ELECTRONIC CONTROL BOX
SINGLE-PHASE 230V 50/60Hz

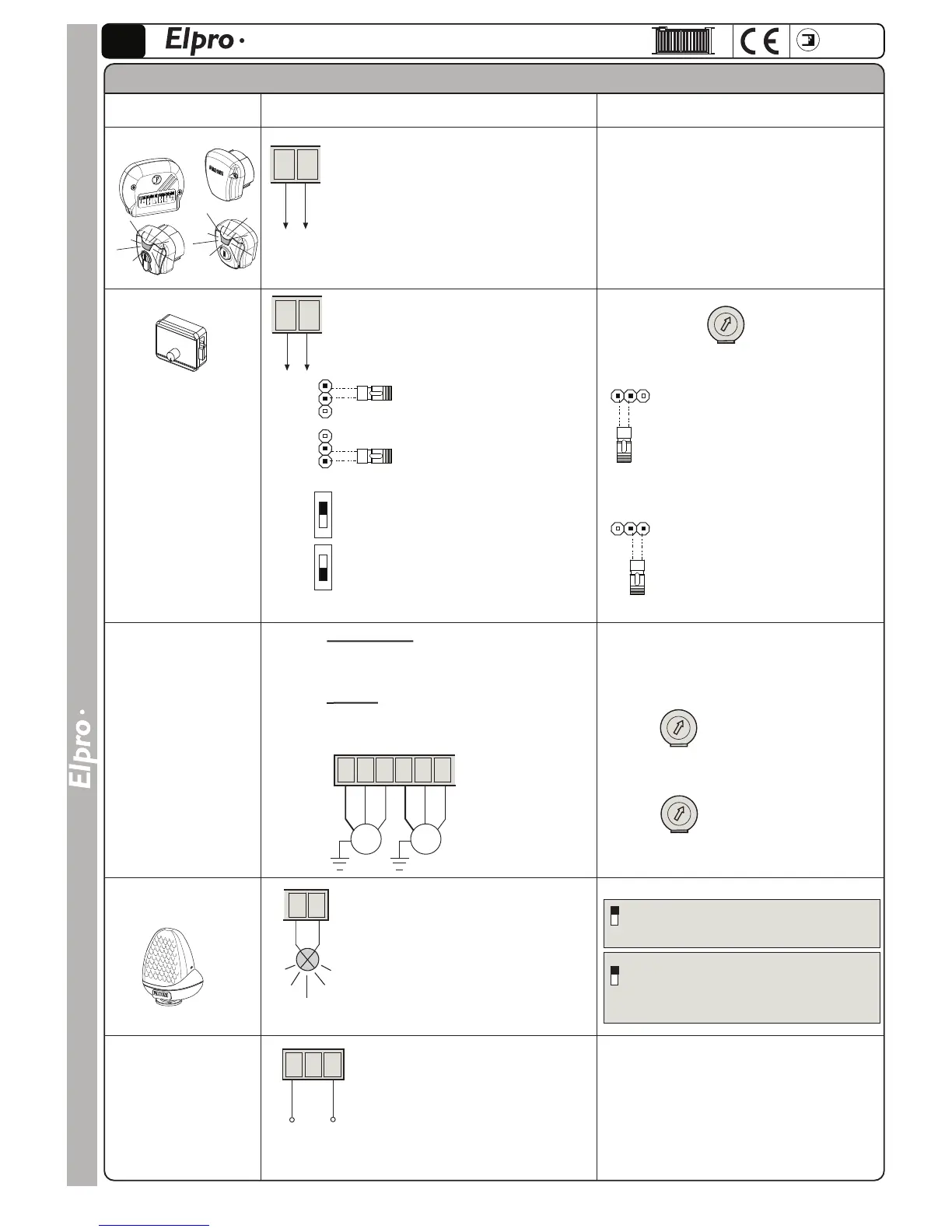

ELECTRICAL CONNECTIONS ON SLIDING GATE MODE - Dip Switch B n°1=ON
230Vac OUTPUT
Flasher
max 25W
Flasher 230V:
2322
l'apricancello
DIP-SWITCH-A N°4 and N°10:
ON:
Pre-flashing before movement
OFF: No pre-flashing
4
ON: Flasher out of service in Dwell time
Automatic mode (Dip 3 = ON)
OFF: Flasher in service in Dwell time
Automatic mode (con Dip 3= ON)
10
PCB Power
Supply 230V:
NEUTRAL
LIVE
24 25
Control board power supply
230V - 50/60Hz ±10%
DWELL TIME
1s - 220s
MOTOR RUN TIME
OPEN - CLOSE
0s - 120s
-
+
-
+
Output for single-
phase motors
230V 350W max -
HP 0.5:
In case of
one motor only:
1) Connect power supply to the terminals Motor M1
2) No gate delay in opening by Dip-A N°8=ON
3) Set the trimmer Gate Delay in Closing to zero
M1
COMMON
16 17 18 19 20 21
M2
COMMON
In case of
2
motors:
1) Connect power supply to the terminals Motors M1 and M2
2) No gate delay in opening by Dip-A N°8=ON
3) Set the trimmer Gate Delay in Closing to zero
Accessory
Electrical connections
Dip-Switch setting and LED indication of functions
24V output:
FADINI
Astro 43
FADINI
24V ac OUTPUT - max load:
No. 3 pairs of photocells
No. 1 radio receiver
No. 1 LED Chis 37 / Chis-E 37 key-switch
Instructions are attached to the related control
accessories
12 13
Gate electric lock:
14 15
Power supply output 12Vac/dc or 24Vac/dc
for an electric lock, 15VA max.
STRIP
JUMPER
Power supply for a
mechanical release lock.
3 2 1
LOCK
SETUP
3 2 1
LOCK
SETUP
3 2 1
12V
12V electric lock power supply
3 2 1
24V
24V electric lock power supply
Power supply for a magnetic
lock to hold the gate/s
on gate stop/s.
AC
DC
= alternated current output
= direct current output
ELECTRIC LOCK
TIME
0.5s - 20s
-
+
