FOR SWINGING GATE SYSTEMS Dip-B N°1=OFF
27
Dip-Switch A
1 = ON Photocells stop gate in opening
2 = ON Radio, no reversing in opening
3 = ON Automatic closing
4 = ON Pre-flashing in service
5 = ON Radio step-by-step
6 = ON Traffic lights mode
limit switches connected
ON
OFF
1 2 3 4 5 6 7 8 9 10 11 12
DIP-SWITCH - A
meccanica
FADINI
FOR SWINGING GATE AUTOMATIC SYSTEMS:
set Dip Switch B N°1= OFF
2 3 4
1
ON
OFF
DIP-SWITCH - B
7 = ON Stroke reversing pulse in Opening cycle
8 = ON No gate delay in Opening, motors start together
9 = 2
nd
pair photocells in service
10 = ON Flasher off in Dwell time
11 = ON Gate re-closing in Opening and Dwell on engaging the photocells
12 = ON
Memory of motor run time settings enabled, with installations
where very frequent operations are required
Dip-Switch B
1 = OFF SWINGING GATE mode
2 = ON Hold-on-switched (deadman ) control
3 = ON Traffic lights "yellow" for 3 seconds
4 = ON DSA control by photocell transmitters if connected to the dedicated terminals
1 2 3 4
ON
OFF
DIP-SWITCH - B
27
UNIVERSAL ELECTRONIC CONTROL BOX
SINGLE-PHASE 230V 50/60Hz
Key-switch:
NO and NC contacts to be connected
to the respective terminals in the key-
or button-switches.
All of the possible setting combinations
are described in the instructions sheets
included with the respective control
accessories
3 4 5 6
FADINI
FADINI
NC
OPEN
CLOSE
STOP
COMMON
L4 OFF = no OPENING contact, it goes on
whenever an opening pulse is given
L5 OFF = no CLOSING contact, it goes on
whenever a closing pulse is given
L6 ON = STOP contact closed, it goes
off whenever a stop pulse is given
1
st
pair photocells:
fitted outside
perimeter
1
DIP-SWITCH-A N° 1:
NC
NC
1 2
2
nd
pair photocells:
fitted inside perimeter
1 2
DIP-SWITCH-A N°9:
9

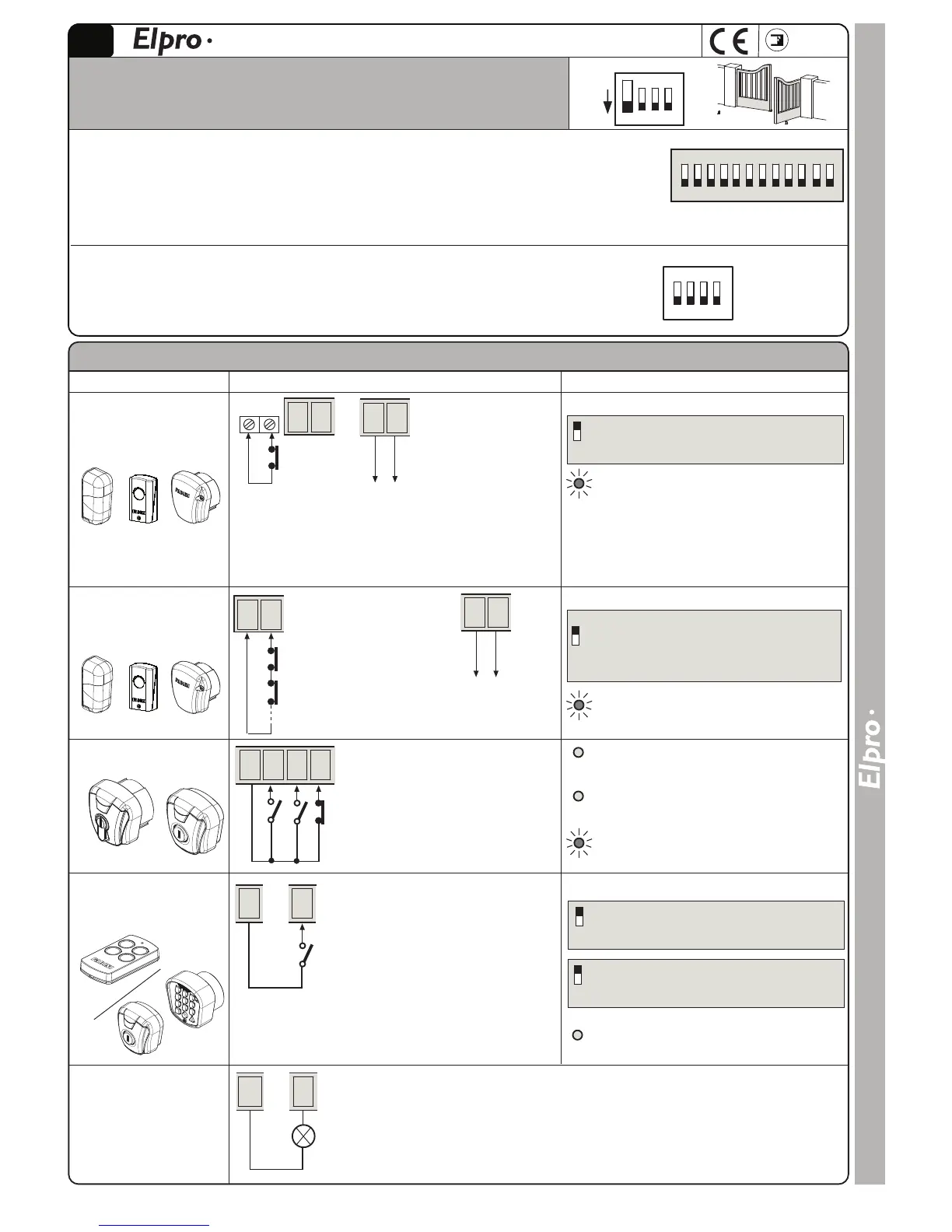

ELECTRICAL CONNECTIONS ON SWINGING GATE MODE - Dip Switch B n°1=OFF
12 13
12 13
24Vac output max. load:
n°1 radio receiver
n°3 pairs photocells
All NC contacts of safety
accessories such as
Photocells (receivers)
must be connected in
series with terminals
1 and 2
NC
FADINI
FADINI
Accessory
Electrical connections
Dip-Switch setting and LED indication of functions
ON: Photocells 2
nd
pair in service
OFF: Photocells 2
nd
pair not installed
L0 ON = no obstacle detected, it goes off
in case of obstacle
24Vac output max. load:
n°1 radio receiver
n°3 pairs photocells
Dip A No.9=ON and the NC contact connected: The gates
stay stopped as long as the photocells are obstructed.
- In opening cycle: obstacle removed, gates go on opening
- In closing cycle: obstacle removed, gate travel reversed
NOTE: if no 2
nd
pair photocells are used, it is not necessary
to bridge the contact input, only DIP-SWITCH-A No. 9=OFF
ON: stop gate/s in opening and reverse travel in
closing when cleared
OFF: no stop in opening and reverse travel in
closing when obstructed
L1 ON = no obstacle, it goes off
in case of obstraction
DIP-SWITCH-A N°2 and N°5 :
RADIO
CONTACT
COMMON
3 7
L7 OFF = no RADIO contact, it goes on by
any radio pulse
FADINI
Radio contact
(step by step mode):
Any NO connection to these two terminals
will perform the following:
- Opening only: Dip 2=ON and Dip 5=OFF
- Gate travel reversing by any pulse
Dip 2=OFF and Dip 5=OFF
- Step by step: Open-Stop-Close-Stop
Dip 2=OFF and Dip 5=ON
- No new pulse is accepted in opening.
In Dwell phase and in closing any new
pulse stops and reverses gate travel:
Dip 2=ON and Dip 5=ON
ON: It does not stop and reverse gate travel
in opening
OFF: always stops & reverses in opening
2
ON: step by step with intermediate stop
OFF: gate travel reversed by any radio pulse
5
1
2
3
4
5
6
7
8
9
A
B
STOP
Indication lamp
output
24V- max 3W:
COMMON
3 11
Output for a 24V max 3W indication lamp
showing the status of the system:
Lamp On = Gate open
Lamp Off = Gate closed
0.5s (fast) flashing = gate closing
1s (normal) flashing = gate opening
