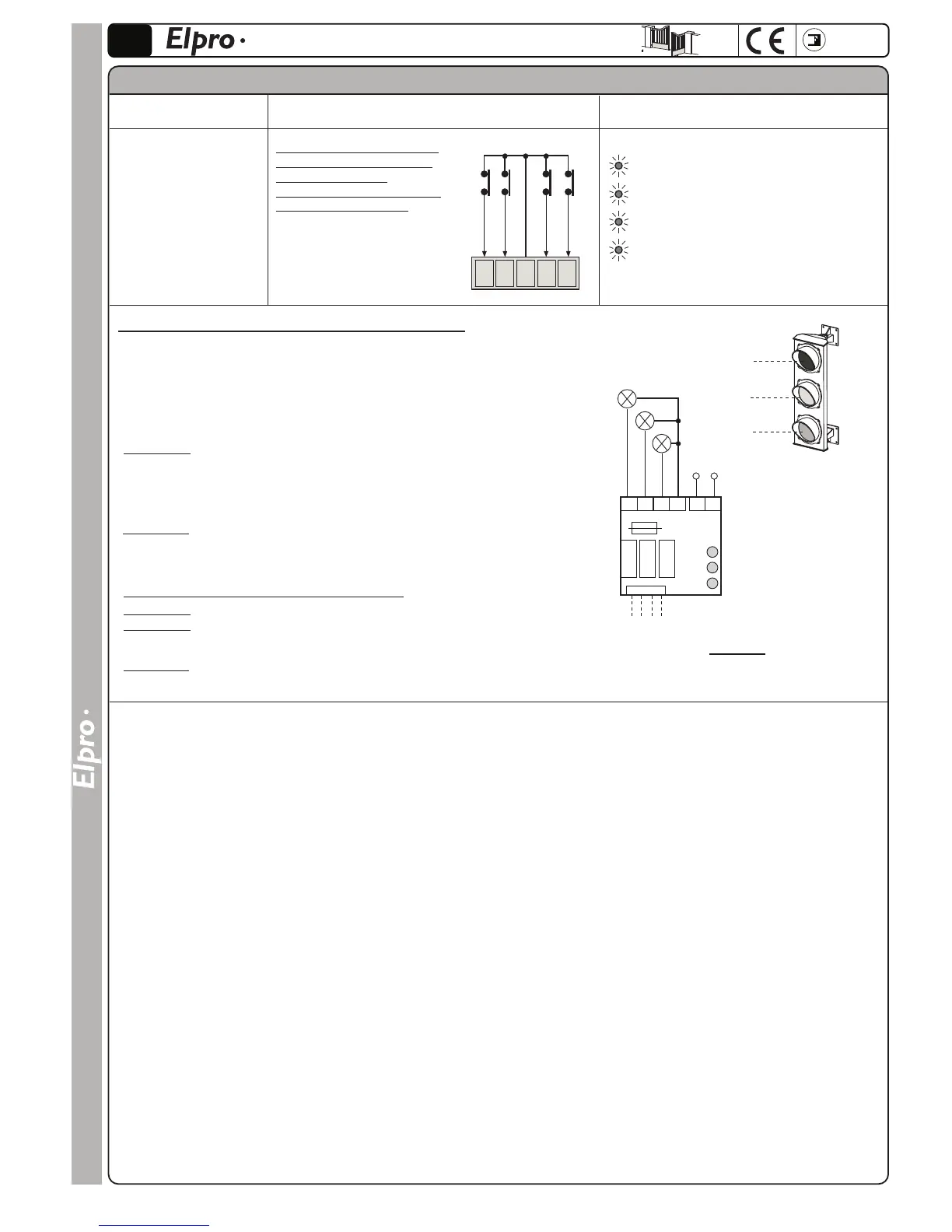

fadini Elpro 27 - Swinging Gate System Limit Switches and Traffic Lights; Limit Switch Wiring for Swinging Gates; Traffic Lights Card for Swinging Gates

page 22
FOR SWINGING GATE SYSTEMS Dip-B N°1=OFF
27
meccanica
FADINI
GB
27
UNIVERSAL ELECTRONIC CONTROL BOX
SINGLE-PHASE 230V 50/60Hz
Accessory
Electrical connections
LED indication of functions
RED
YELLOW
GREEN
Power supply 230V 50Hz
Red
Yellow
Green
Red
Yellow
Green
Fuse 1A
Common
63 64 65 66 60 61
(Optional: Traffic lights
plug-in card for
230V lamps) item 7282L
Traffic lights plug-in card (Optional - Item No. 7282L):
The power supply of this card is independent from that of the control board:
230V 50Hz with an output of 100W at 230V each lamp.
Logic of operation:
- GREEN light = driveway OPEN
- RED light = driveway CLOSED
- YELLOW light = it switches on before light changes from green to red
Note: In Pedestrians mode the traffic light is always RED.
Dip-Switch A
4= ON Pre-flashing Enabled: traffic lights Red - Yellow - Green
4= OFF Pre-flashing Disabled: traffic lights Red - Green
6= ON Limit switches installed
6= OFF Limit switches linked out (functioning by time setting)
Dip-Switch B
3= ON Pre-flashing time prolonged by about 2 seconds
(yellow light up to 3 seconds)
3= OFF Standard time as factory-preset
Functioning with 2 lamps (Red and Green):
Dip-Switch A 4 = OFF
Dip-Switch A 6 = adjust setting depending on whether the limit switches are
used or not in the installation
Dip-Switch B 3 = OFF
ELECTRICAL CONNECTIONS ON SWINGING GATE MODE - Dip Switch B n°1=OFF
Limit switches:
IMPORTANT: if no limit switches
are involved, link out terminals
30 - 31 - 32 - 33 - 34.
Limit switches ( L-sw.) must have
normally closed contacts.
L30 ON= OFF on engaging L.sw. Opening M1
L31 ON= OFF on engaging L.sw. Closing M1
L33 ON= OFF on engaging L.sw. Opening M2
L34 ON= OFF on engaging L.sw. Closing M2
30 31 32 33 34
common
M1 M2
Opening Limit switch
Closing Limit switch
Opening Limit switch
Closing Limit switch
