1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21
A B A B
9
COMMON
OPEN
CLOSE
RADIO
LED 24 V - 3 W max
STOP
T1
MOTOR RUN TIME
1 s - 22 s
T2
DWELL TIME
1 s - 180 s
L1
L6
L7
L3
L8
L4
L5
L2
L9 L10 L11
Secondary
fuse
transformer
F4 = 2A
Primary
fuse
transformer
F3 = 630 mA
Electric valve fuse,
acoustic device, ashing light
and led F5 = 2 A
Motor fuse M2
F2 = 5 A
Motor fuse M1
F1 = 5 A
COMMON
M1 M2
COMMON
Red
Yellow
Green
Input P
57 58
63 64 65 66 60 61
24 Vdc output
+ -
55 56
TRANSFORMER
1 2
COMMON
LIMIT SWITCH OPEN M1
(Bollard in down position)
LIMIT SWITCH OPEN M2
(Bollard in down position)
LIMIT SWITCH CLOSE M1
(Bollard in up position)
LIMIT SWITCH CLOSE M2
(Bollard in up position)
Pedestrian opening
connection
motor bollard M1
PHOTOCELLS OR
MAGNETIC LOOP
OUTPUT 24 V - 250 mA
for max charge:
- n° 2 pairs of photocells
- n° 1 radio receiver
MOTOR M1
Bollard n° 1
MOTOR M2
Bollard
n° 2
NEUTRAL
LIVE
N
F
Anti-disturbance lter
COMMON
Elpro S20
STRIP jumper
LIMIT SWITCH
ELPRO S20
Capacitor 20 µF
M1
20 VA - 50/60 Hz
2322 24 25
Capacitor 20 µF
M2
RADIO
PLUG-IN CARD
CONNECTOR
LIMIT SWITCH DIAGNOSTIC
230 V - 50 Hz
POWER SUPPLY
STABILIZER
FOR SOLENOID VALVE
POWER SUPPLY
230 V ±10% 50 Hz
SINGLE-PHASE
Red
FLASHING LIGHT
230 V - 100 W max
SIGNAL LIGHT
230 V - 100 W max
Fuse 1 A
PLUG-IN CONNECTOR FOR
3-LAMP TRAFFIC LIGHTS
MAX100 W EACH LAMP
Yellow
Green
Common
Power supply
230 V - 50 Hz
(Optional: plug-in PCB for trac
light to suit 230 V lamp)
code 7282L

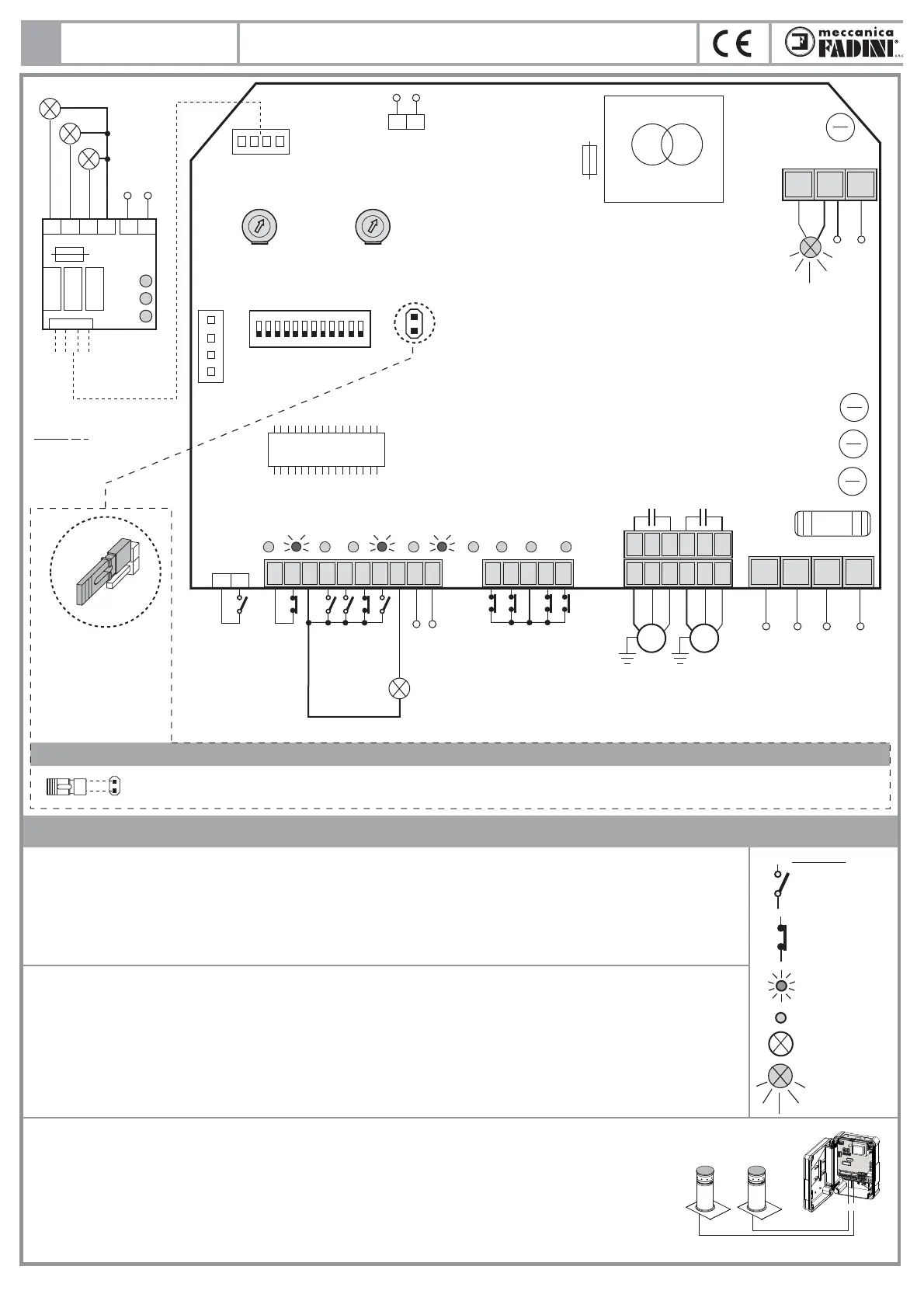

Coral, Vigilo, Talos, Talos M30, Strabuc 930 Opinat range of bollards with limit switch: with the STRIP jumper inserted (as in the picture), Elpro S20
checks cyclicly every 10 minutes that the closing limit switches (post raised) are in the correct position; should any of them fail to be such, only the
motor of the post not in position is operated until this is fully up as required.
Note well: whenever Elpro S20 is re-powered, wait 10 seconds for the logic to become fully operating again.
The electronic control panel Elpro S20 is designed to operate the Talos, Talos M30, Strabuc 930 Opinat, Coral and Vigilo; power supply is
230 V single-phase.
Elpro S20 is capable of monitoring damages or malfunctioning with the system (ISC).
I.S.C. = Integrity and Supervision Circuit, is a special function of Elpro S20 which can self control the electronic PCB and detect any damages
occurring with any components or accessories. In this case, provided that the post is tted with a release electric valve, lowering is allowed
automatically. The manufacturing company declines any responsability for incorrect handling and application; also, it reserves the right to
change or update the control panel any time.
IMPORTANT FOR THE INSTALLATION AND THE CORRECT FUNCTIONING:
- The control box must be installed in a dry and sheltered place; suitable holes are provided with the FADINI universal box for tting
purpose and in case any commercial box is used, this must be adequate to the job.
- Make sure that power supply to the control board be 230 V ±10%.
- Make sure that power supply to the electric motor be 230 V ±10%.
- For distances longer than 50 metres increase the section of the wires.
- Fit the mains to the control box with a high sensitivity, 0,03 A, dierential, magnetic-thermal circuit breaker.
- Cables with 1,5 mm² section wires are to be used for the power supply, electric motor and asher for distances up to 50 m.
- Cables with 1 mm² section wires are to be used for the limit switches, photocells, push buttons and accessories.
N.W.: for applications such as light switching, CCTV, etc. use solid state relays to prevent the microprocessor from being aected.
IN CASE OF FAILURE OF THE PANEL:
- Check the electronic PCB voltage supply is 230 V ±10%.
- Check the electric motor power supply is 230 V ±10%.
- For longer distances increase wire section.
- Check fuses.
- The photocell contacts are closed.
- Check all NC contacts.
- The limit switches are properly connected and work correctly.
- In case the electric valve is tted, check integrity with all fuses.
- Check that no voltage drop has occurred from the control board to the electric motor.
ON
OFF
1 2 3 4 5 6 7 8 9 10 11 12
5251 53
SYMBOLS:
NO contact
NC contact
Led ON
Led OFF
Pilot light
Flasher
-
+
-
+
GB
Elpro S20
ELECTRONIC CONTROLLER UP TO 2 AUTOMATIC BOLLARDS,
WITH OR WITHOUT LIMIT SWITCH
12
1
2
ELPRO S20
ELPRO
S20
VERS.
