Screen and keys
8
(*) The calculator key is not available on all keyboards.

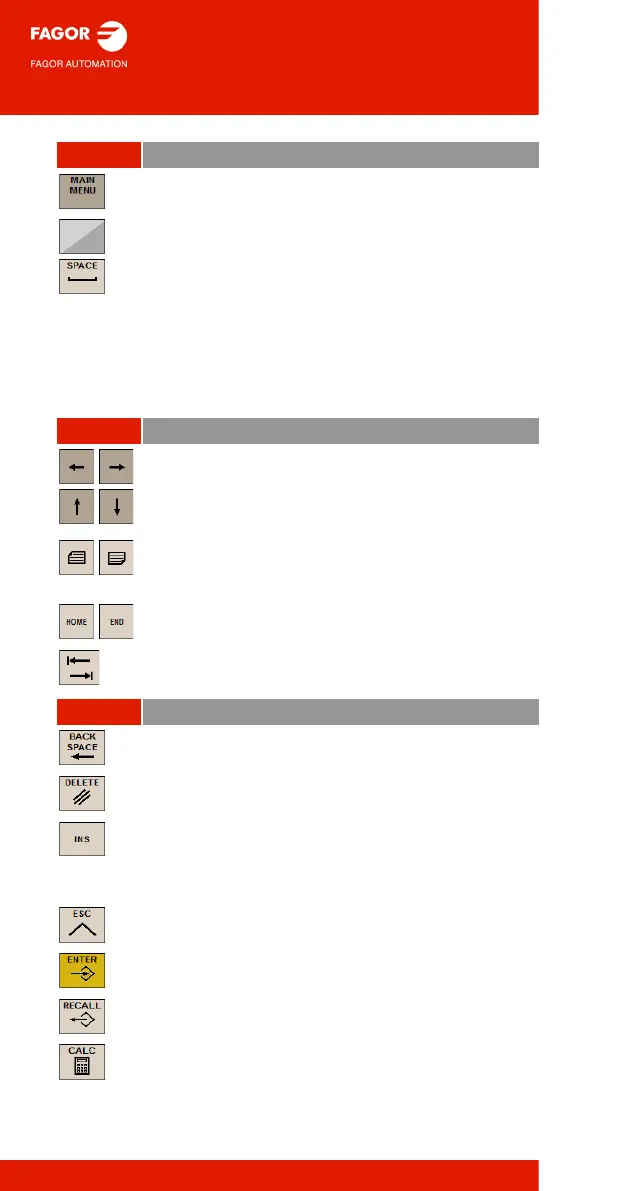

Browsing keys.
Main menu.
Multifunction key:
• Change the active icon status.
• When editing conversational cycles, a copy of the
selected profile can be made.
• In conversational mode, it alternates between the
standard screen and auxiliary screen.
• In ISO mode, it opens and closes dynamic percentage
control (dynamic override).
The SPACE key (space bar) performs the same function.
Keys to move the cursor.
The arrow keys move the cursor one position to the left,
right, up or down.
The previous-page or next-page keys show the
previous or next page at the part-program or PLC
program editor.
The home and end keys move the cursor the beginning
or end of the line.
The tab key moves the cursor to the next field of the
active menu.
Editing keys.
Delete.
Delete.
Insert or overwrite.
It also inserts the cycle being edited by the program
called by the cycle itself, or inserts the calculator value
at the call calculator point.
Escape key, to cancel the current action without
assuming the changes.
Key to validate commands, data and program blocks of
the editor.
It allows for the recuperation and modification of a
program profile or a cycle that has already been edited.
