Page #2 background imageLoading...
Page #2 background image

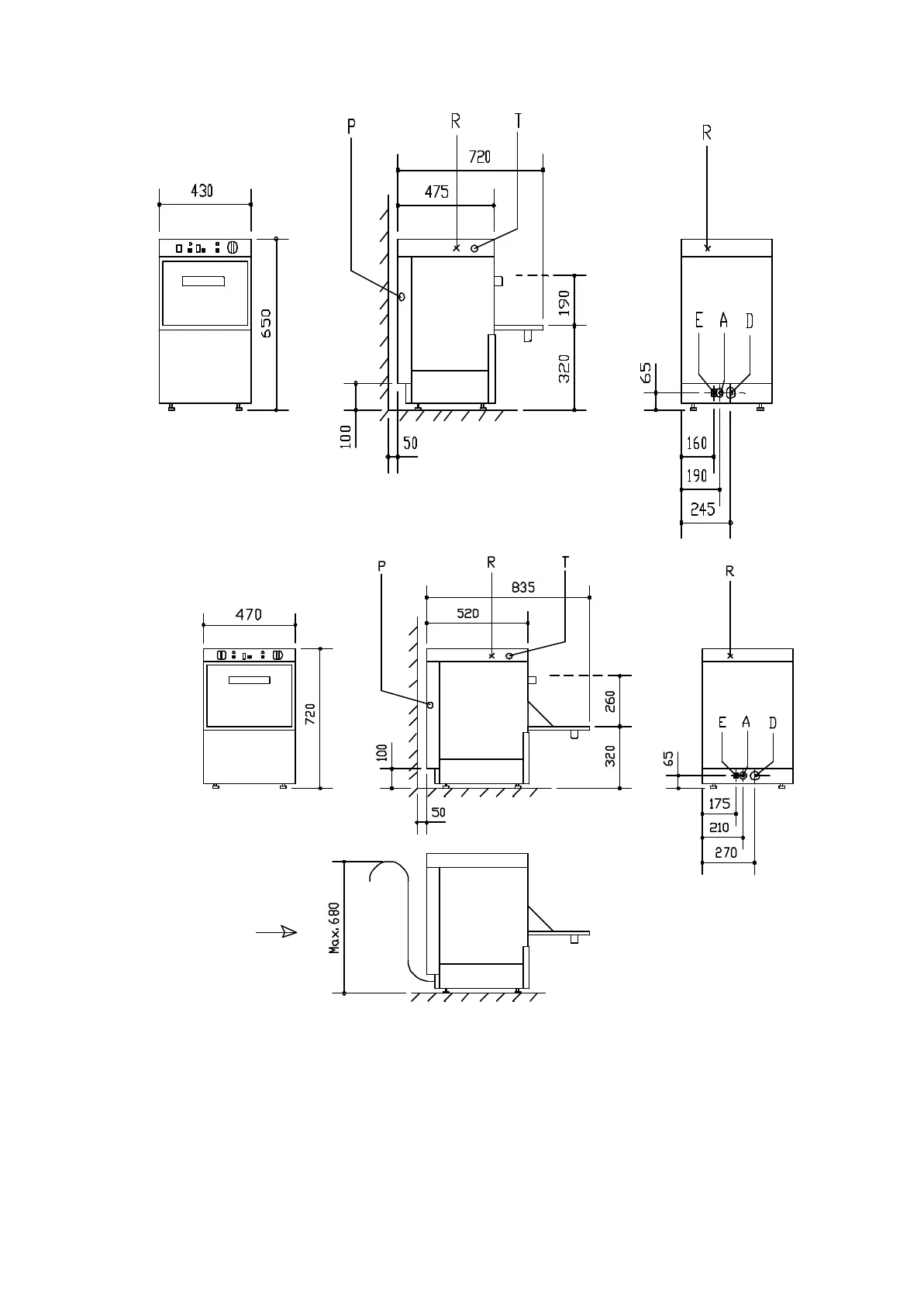

1
LVC
-
12; LVC
-
15; LVC
-
1
5D
LVC-21; LVC-21B; LVC-21D
A=Toma de agua D=Manguera Desagüe E=Manguera eléctrica
Prise d’eau Tuyau vidange Gaine électrique
Water inlet Drain hose Electric s. Cable
Wasseranschluß Schlauch Wasserauslauf Kabelschlauch
Presa d’acqua Tubo di scarico Cavo elettrico
Fig.1
Instalación con Motobomba
desagüe
Installation avec
motopompe vidange
Installation with drainage
motor pump
Installation mit
motorbetätigter
Abflußpumpe
