Installation (Continued)
NOTE:
The Model T5420 can be mounted on a 2" pipe using the
For outdoor use, mount the T5220 in an upright
Optional Mounting Kit 14596. For more information, see
position. This will help prevent rain water from
Figure 3. below.
entering into the unit. For more information, see
Figure 3. “Mounting Kit 14596” below.

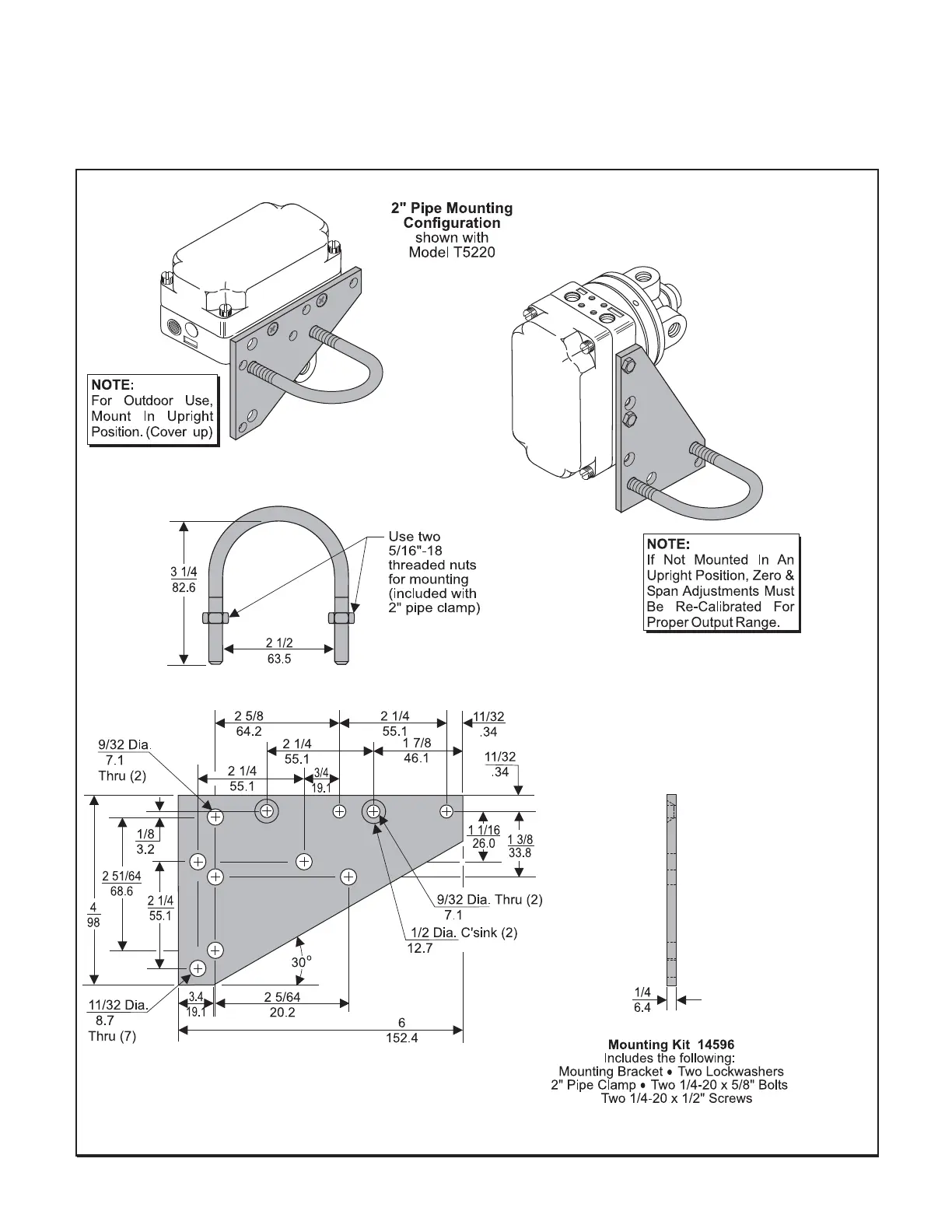

Figure 3. Optional Mounting Kit 14596. (Sold Separately)
