1.5 ELECTRICAL SUPPLY
50Hz / 230V~ single phase with 13A supply. Unit must be electrically earthed.
Motor rating: 200W Oven lamp rating: 25W
Check that no damage has occurred to the appliance, power cable and plug face during transit. If
damage has occurred do not use the appliance.
Ensure that the mains power cable is routed free from the appliance to avoid damage.
We recommend supplementary electrical protection with the use of a residual current device
(RCD). Periodical testing, repair and fixing wiring connection should only be undertaken by a
skilled and competent electrician.

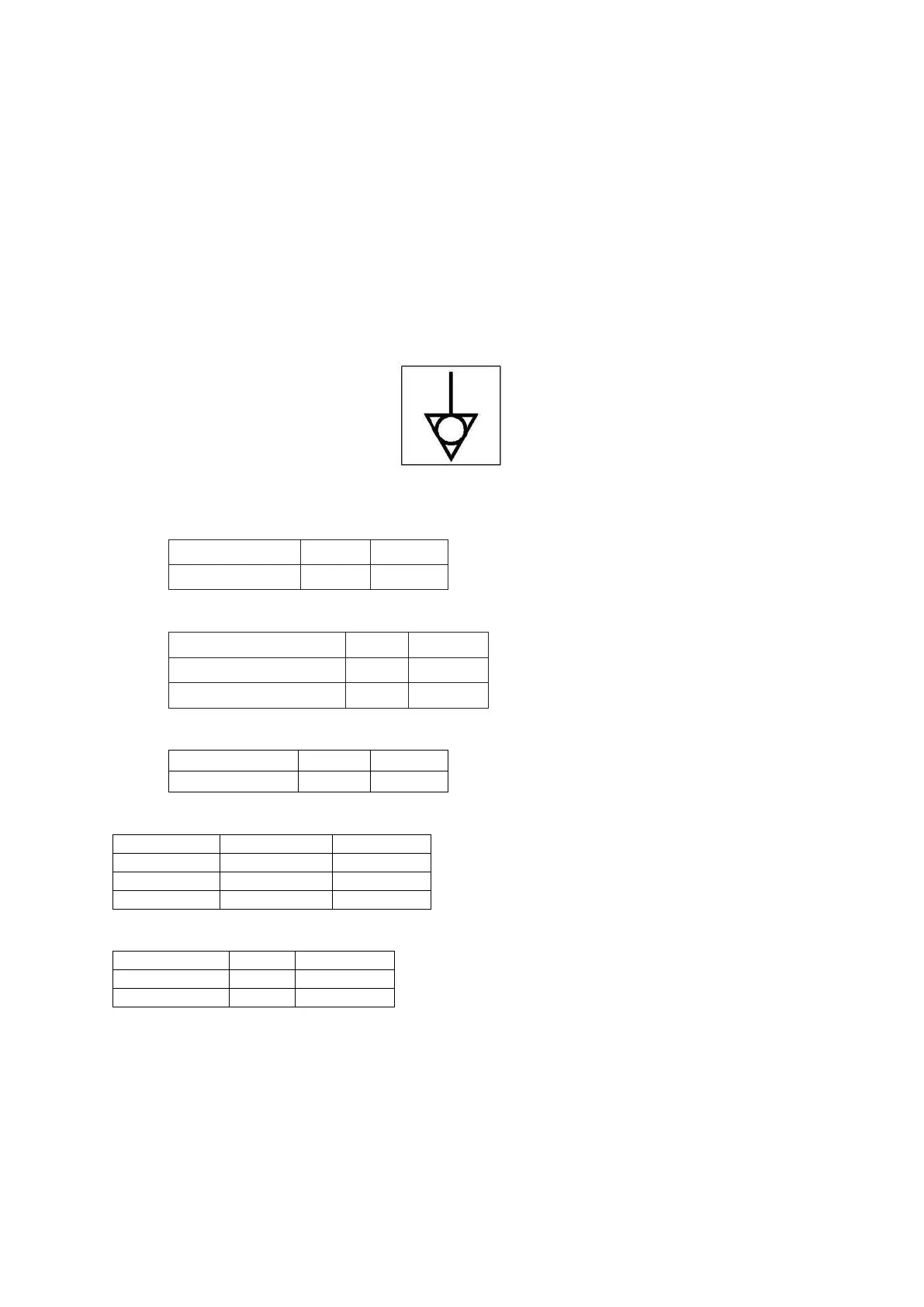

This appliance is also provided with a terminal for connection of an external equipotential
conductor. This terminal is in effective electrical contact with all fixed exposed metal parts of the
appliance, and shall allow the connection ofa conductor having a normal cross-sectional area of
up to 10mm². it is located on the rear panel and is identified by the following symbol and must
only be used for bonding purposes.
1.6 HEAT INPUTS - NATURAL and
PROPANE GAS (kW net & Btu/hr gross)
1.6.1 Total Inputs
Model
kW
Btu/hr
G3106
41.3
155,000
1.6.2 Individual Inputs (kW nett & Btu/hr gross)
Model
Btu/hr
Open top (each burner)
20,000
Oven
35,655
1.6.3 Individual Low Inputs (kW nett & Btu/hr gross)
Model
kW
Btu/hr
Open Top
1.1
4,130
1.7 INJECTOR DIAMETERS
Model
Natural
Propane
Open top
Ø1.93mm
Ø1.2mm
Oven
Ø2.6mm
Ø1.6mm
Pilot
G31.2
G25.1
1.8 GAS PRESSURE ADJUSTMENT NATURAL GAS AND PROPANE
Gas type
mbar
Inches w.g
Natural Gas
20
8
Propane Gas
37
14.8
Pressure test point is located on RH side of gas manifold situated behind front control facia.
An adjustable governor (3/4” BSP) is provided on Natural gas units. This should be set to achieve an
operating pressure at control manifold of 15 mbar (6inches w.g) with 3 hob burners lit.
Oven burner is to be adjusted to 12mbar (natural gas) and 30mbar (Propane) at oven solenoid valve.
1.9 BURNER ADJUSTMENT NATURAL and PROPANE.
1.9.1 Burner Aeration
NO ADJUSTMENT is possible.
1.9.2 Bypass screw diameters.
