8
SECTION 3 -SERVICING AND CONVERSION
Important
BEFORE ATTEMPTING ANY SERVICING, ENSURE ISOLATING COCK IS TURNED
OFF AND CANNOT BE
INADVERTENTLY TURNED ON. AFTER ANY
MAINTENANCE TASK, CHECK APPLIANCE TO
ENSURE THAT IT PERFORMS
CORRECTLY AND CARRY OUT ANY NECESSARY ADJUSTMENTS AS
DETAILED
IN SECTION 1.
After carrying out any servicing or exchange of gas carrying component.
ALWAYS CHECK FOR GAS TIGHTNESS!
3.1 GAS CONVERSION CHECK LIST
For conversion to NATURAL GAS, add correct governor and set burner pressure.
For conversion to PROPANE GAS, remove governor from gas circuit.
Other considerations
CHANGE INJECTORS and ADJUST PRESSURE
Refer to Sections 1.9 and 1.10. CHANGE BYPASS SCREW CHANGE DATA PLATE
Ensure gas supply is disconnected before commencing. Only reconnect gas supply after all conversion
work has been completed.
Natural to Propane
Remove governor from appliance inlet pipework. Propane to Natural
Fit governor to appliance inlet pipework and follow details in Section 2.5.

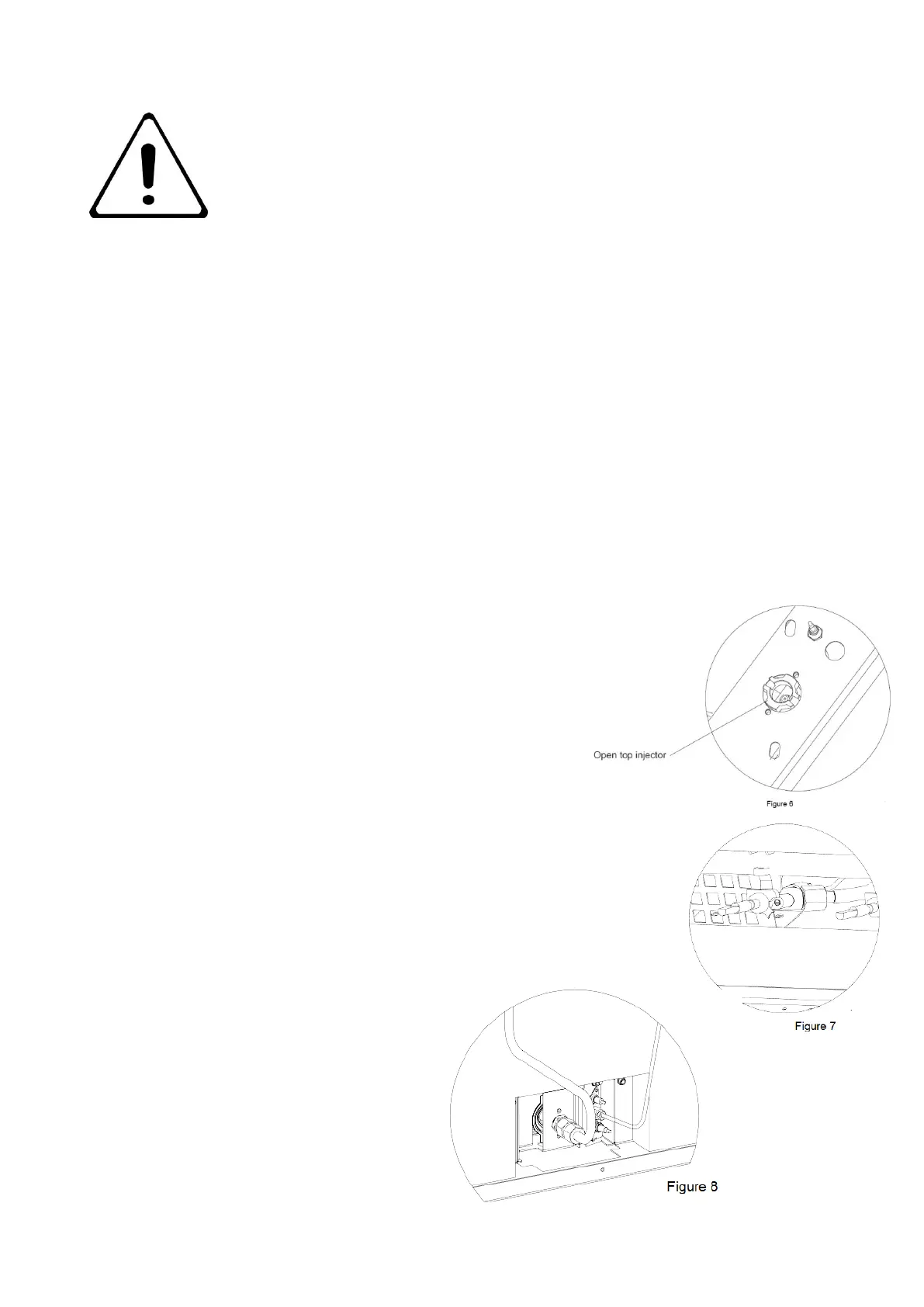

3.1.1 Open Top Burners - To Replace Injector (Refer to Figure 6)
Remove pan supports, burner heads and burner bases.
Remove pressed hob.
Leaving holder in situation, unscrew existing injector.
Remove injector.
Fit and secure replacement injector. Repeat for all taps
Refit removed parts.
Open top injector
3.1.2 Open Top Bypass Screw - To Replace (Refer to Figure 7)
Remove control panel.
Unscrew and remove bypass screw from open top tap.
Insert replacement bypass screw into tap and secure. Repeat for all taps.
Refit control panel.
3.1.3 Oven Burner – To Replace Injector
(from rear of oven - Refer to Figure 8)
Remove fan motor cover.
Undo burner gas pipe.
Unscrew and remove existing injector.
Insert and screw in replacement injector.
Re-assemble in reverse order.
