User Manual
Securope 2012 horizontal
DOC039-UK-19.07.15
5

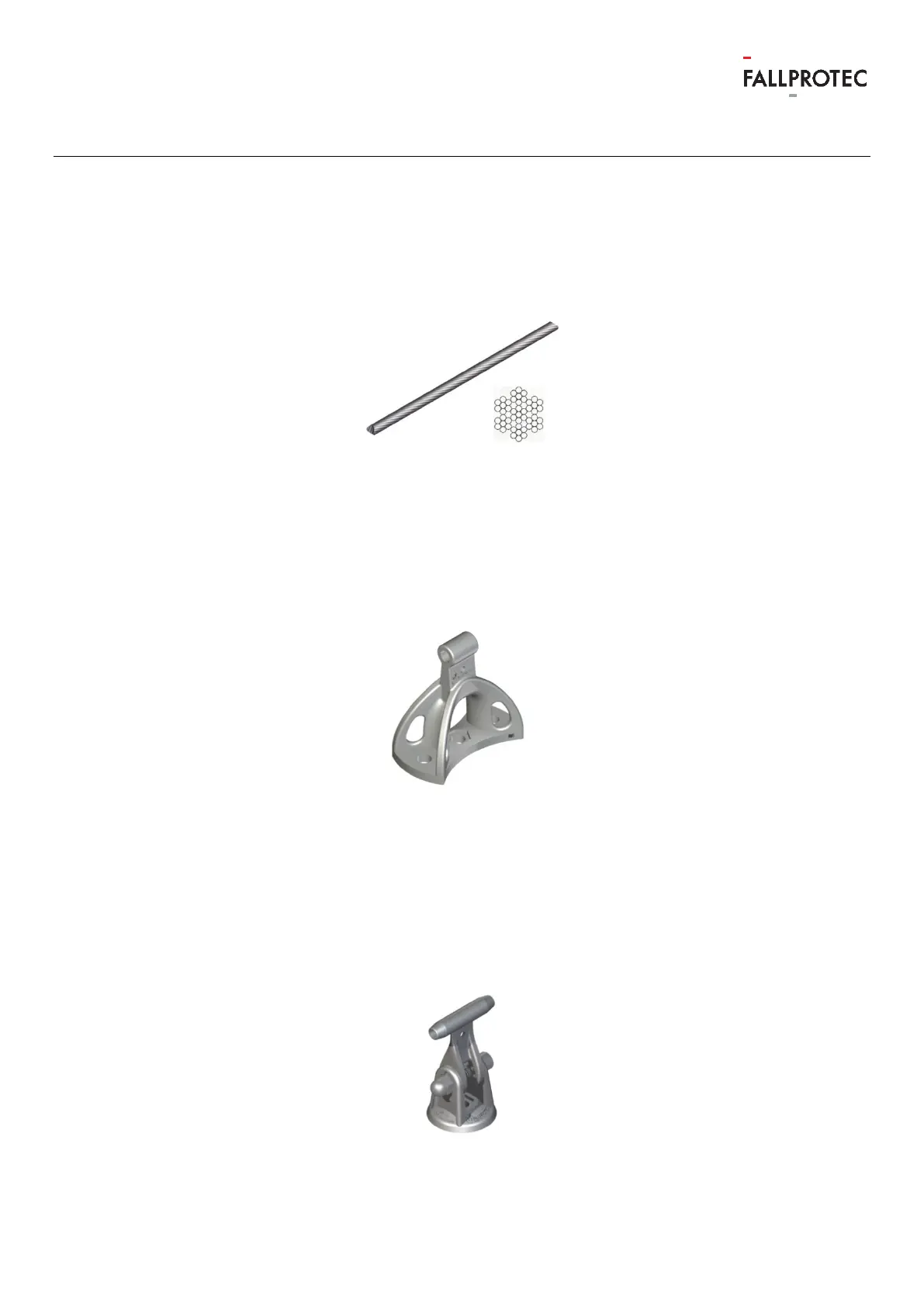

1.3. Description of the components
1.3.1. The wire rope
The wire rope 8 mm diameter, construction 7x7 , material AISI 316
Fig. 1 LDV006 wire rope
1.3.2. Terminale anchors
Terminal anchors are installed at the ends of the line, material AISI 316
Fig. 2 LDV002 terminal anchor
1.3.3. Intermediate anchor NEO
Intermediate anchors are arranged along the lifeline at intervals between 2 and 12 m.
Material AISI 316
Fig. 3 LDV043 Intermediate anchor NEO
