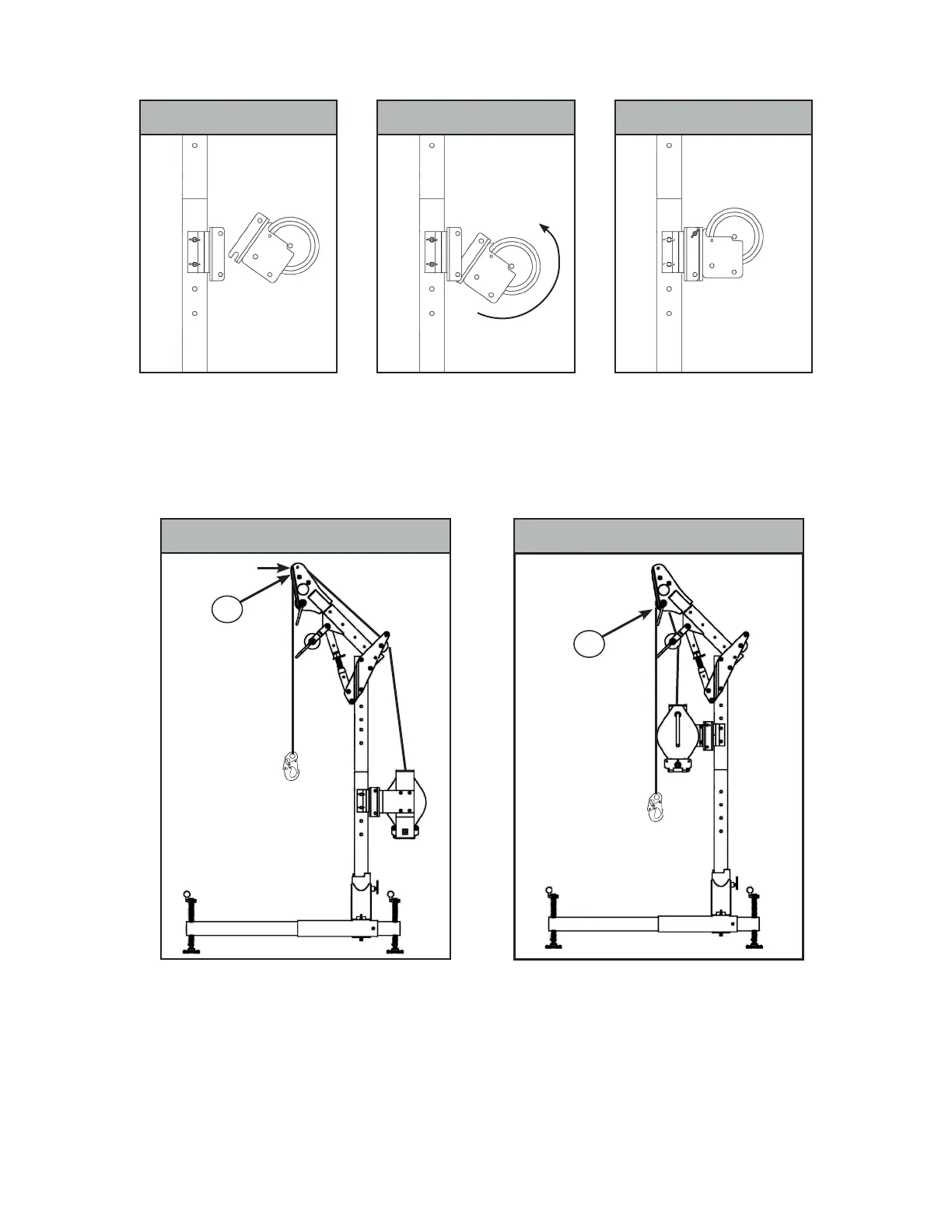

To aach a winch or 3-Way to the Davit Device Receiver Bracket, place the notch in the device side bracket over the boom bar of the
bracket as shown in Figure 30. Rotate to align the upper holes, see Figure 31. Insert the provided detent pin, see Figure 32.
Figure 30 Figure 31 Figure 32
4.9 Cable Roung
If using a rear mounted device, use the Top Pulley (TP). Run the line of the device over the rear pulley of the Davit Arm; remove the
detent pin and run the line over the top pulley and reinsert the detent pin, see Figure 33. If using a front mounted device, use the Boom
Pulley (BP). Run the line over the boom pulley and around lower the pulley in the front of the davit arm, see Figure 34. The lifeline must
be routed through both pulleys for all front mounted devices.
BP
Figure 34
Detent Pin
TP
Figure 33
