Falltech Confined Space Davit System - Page 8

4.3.2 24” to 44” Oset Davit Arm

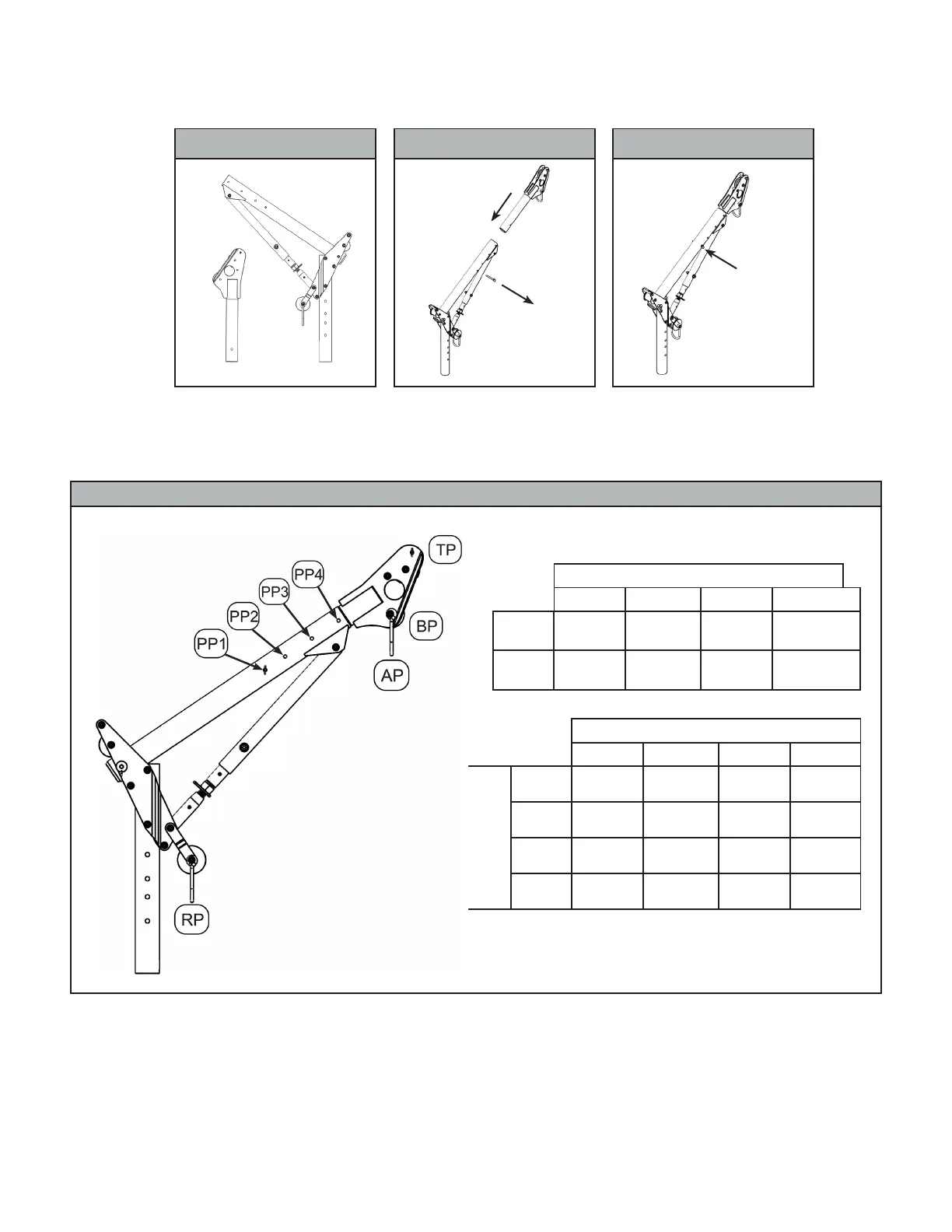

The 24” to 44” Oset Davit Arm is shipped parally disassembled, see Figure 11. Remove the detent pin as shown and insert the
extension tube into the arm sleeve, see Figure 12. Insert the detent pin into the desired Pin Posion as shown in Figure 13.
Figure 11 Figure 13Figure 12
PP1 PP2 PP3 PP4
1800 lbs
(8 kN)
1800 lbs
(8 kN)
1800 lbs
(8 kN)
1800 lbs
(8 kN)
1800 lbs
(8 kN)
1800 lbs
(8 kN)
1800 lbs
(8 kN)
1800 lbs
(8 kN)
1800 lbs
(8 kN)
1800 lbs
(8 kN)
1800 lbs
(8 kN)
1800 lbs
(8 kN)
5000 lbs*
(22.2 kN)
5000 lbs*
(22.2 kN)
5000 lbs*
(22.2 kN)
5000 lbs*
(22.2 kN)
AP
TP
BP
RP
Anchor
Point
Mast Pin Posion
PP1 PP2 PP3 PP4
27”
(685.8 mm)
29.3”
(744.2 mm)
32.3”
(820.4 mm)
35”
(889 mm)
35”
(889.0 mm)
38”
(965.2 mm)
41.5”
(1054.1)
45”
(1143.0 mm)
MIN
MAX
Davit Arm Oset Range
Mast Pin Posion
Acceptable Load Rangs
** Davit conguraon suitable for two-man rescue with a 4 to 1 safety factor.
Figure 14 - 24” to 44” Oset Davit Arm Load Rangs
The Davit Arm is a dynamic anchorage system that will vary in its performance depending upon the congured oset. Care should
be taken to understand the capacity of the system and anchorage strength requirements; see Figure 14 for the load rangs for the
24” to 44” Oset Davit Arm.
021519
MCS30 Rev B
8
