Setup:
Caution!
To prevent electric shock and damage to the device, make sure the power is
switched OFF
on the drum and all related device before making any connection.

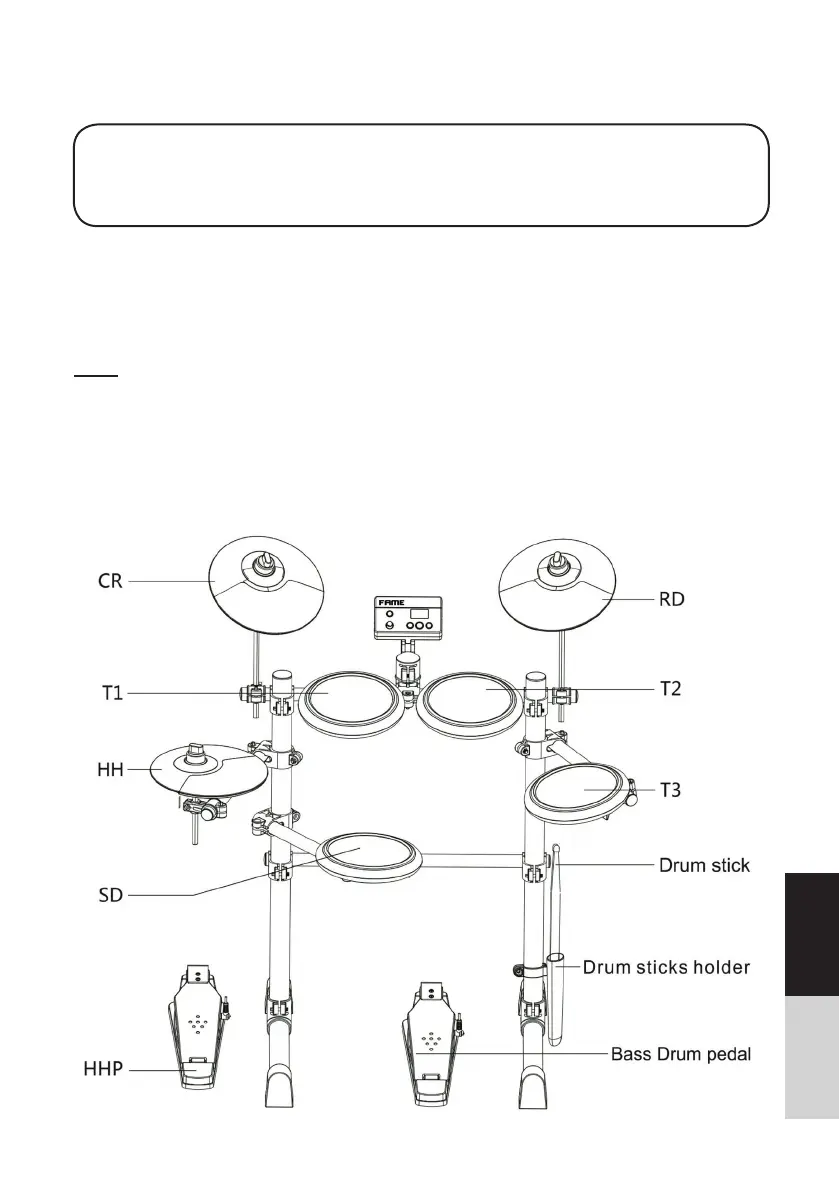

Connecting the Pads and the Pedals
Standard conguration:
KICK, SNARE (dual-zone trigger), TOM 1~3 (dual-zone trigger), CRASH (dual-zone trigger with
choke), RIDE (triple-zone trigger with choke), HI-HAT (dual-zone trigger), PEDAL(HI-HAT).
Note:
1. Use the cables provided to connect the pads to the trigger input jack on the rear panel of the
module, make sure each pad is connected to its corresponding trigger input jack.
2. For details on assembling the drum stand, attaching the digital drum and connecting the
pads, please refer to the Setup manual.
