FANUC R-J3iB User Manual

B-82604EN/01 OPERATION 2.ENVIRONMENT
- 5 -
2.3 NETWORK
• For the Ethernet Cable, use noise-resistant twisted-pair cable for
10BASE-T.
• For the hub (line concentrator) required for implementing a
network, use a switching hub where possible. FANUC
recommends a switching hub of which modular connector has no
metal shield. This is prevent noise from entering the network
from the backbone.
• Perform cabling so that the hub and Ethernet cables make good
contact.

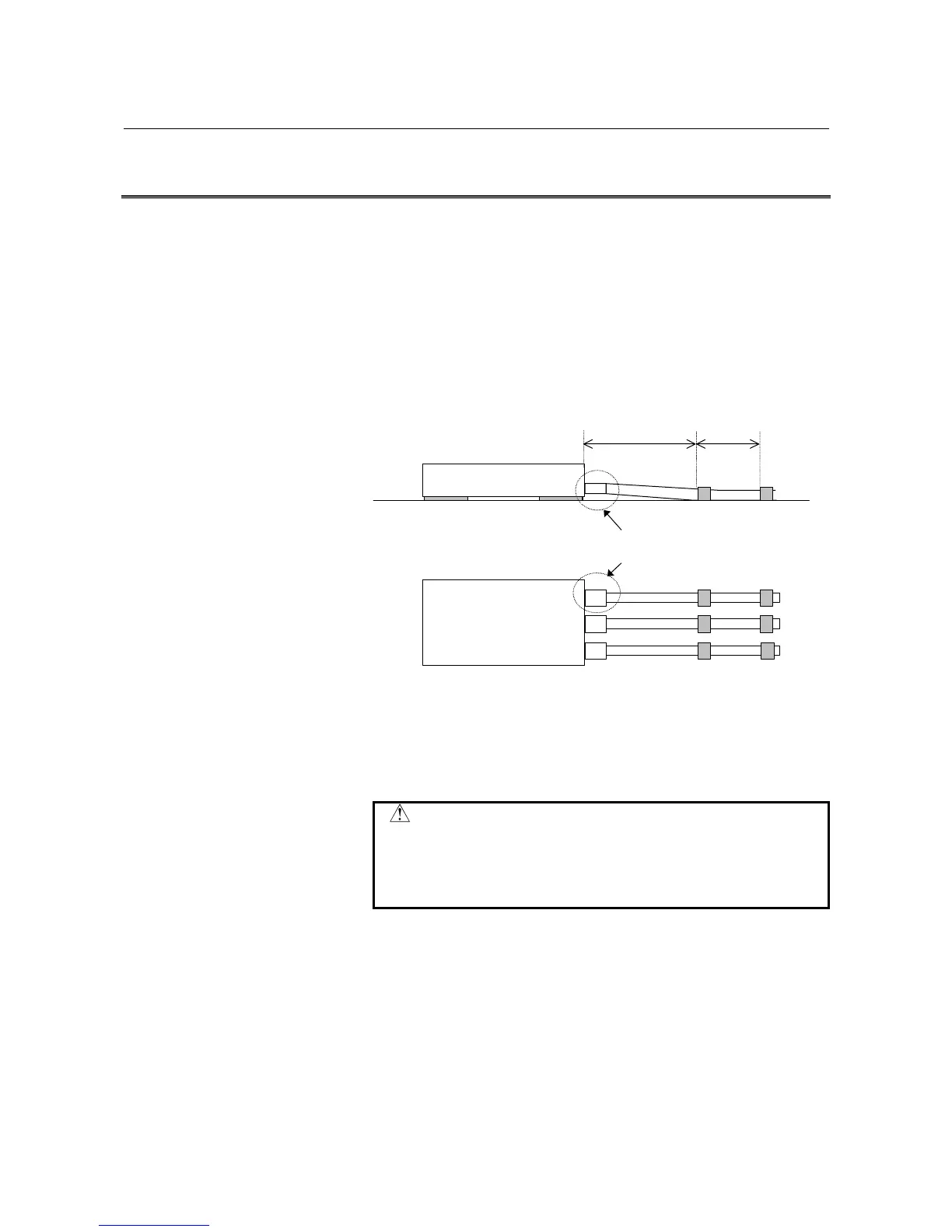

For example, install the hub and cables as follows:
Secure the hub.
HUB
Secure the cable at 2 places.
A
pprox 50 mm or more
A
pprox 30 mm or more
A
ttach the connector to the hub at righ
t
angles.
• The installation environment of the hub must conform the
specification defined by the manufacturer of the hub. For
example, the hub must be installed in a vibration-free, dust-proof
place.
• Sufficient measures should be taken to prevent noise.
CAUTION
The customer is responsible for purchasing cables
and hubs. Make Provisions to protect yourself in
the event of a hub failure, by purchasing spare
parts.

FANUC R-J3iB Specifications

General

Operating System	FANUC proprietary OS
Communication Ports	RS-232, Ethernet
Axes Control	Up to 8 axes
Programming Language	FANUC Karel, TPE
Power Supply	200-230V AC, 50/60 Hz
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Teach Pendant	FANUC Teach Pendant (A05B-2255-C100)
