III- 9

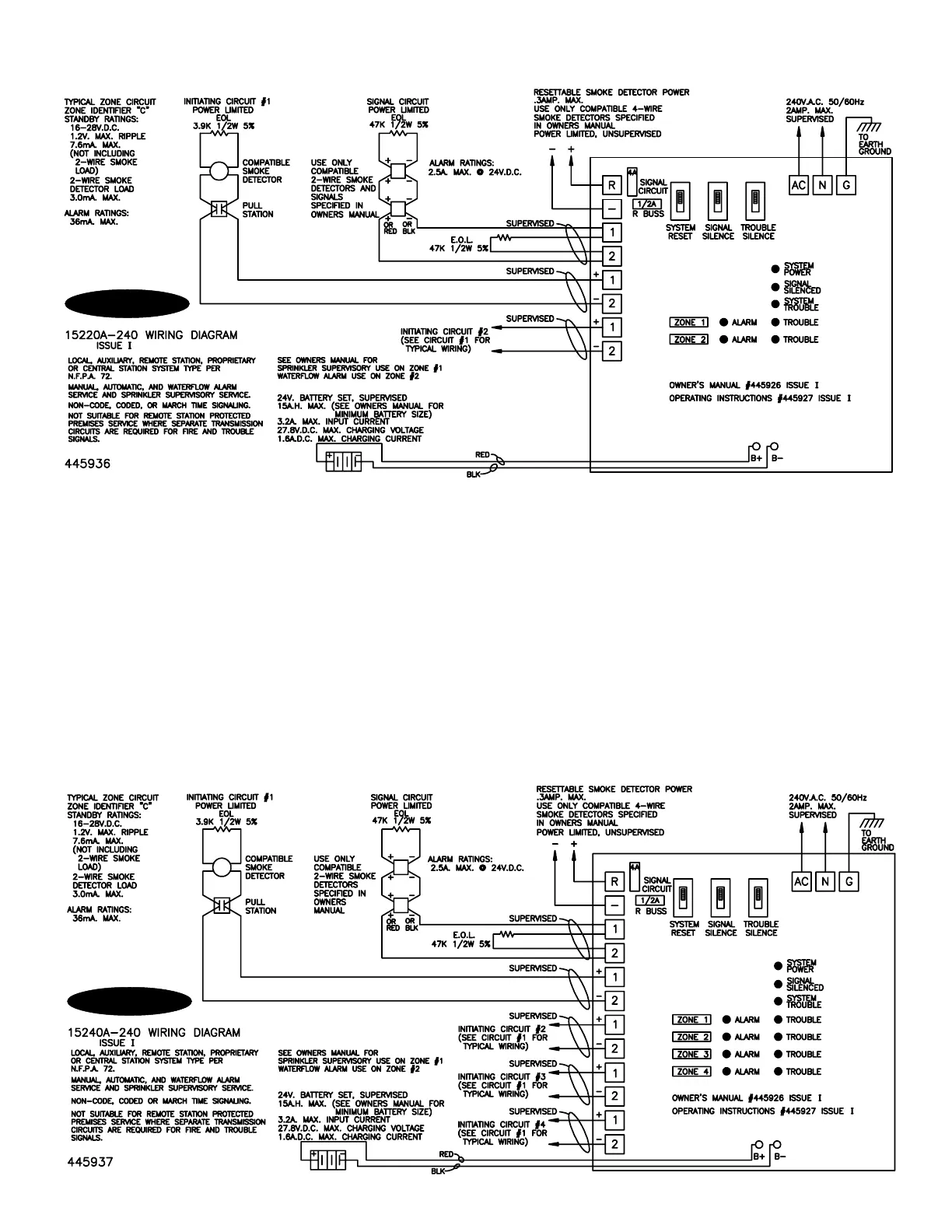

15220A-240 WIRING DIAGRAM
NOTES:
1.) Units to be installed in accordance with the National Electric Code and/or
local electric codes.
2.) See the Signal Circuit Wire Selection Guide to determine wire size for signal
circuits #1 and #2.
3.) The 120VAC terminal block will accept up to #12 AWG wiring or .312" spade
terminals. Terminal block screw size is #6-32.
4.) All other terminals will accept up to #14 AWG wiring or .260" spade terminals.
Terminal block screw size is #6-32.
15240A-240 WIRING DIAGRAM
FARADAY
FARADAY
To Next Page
