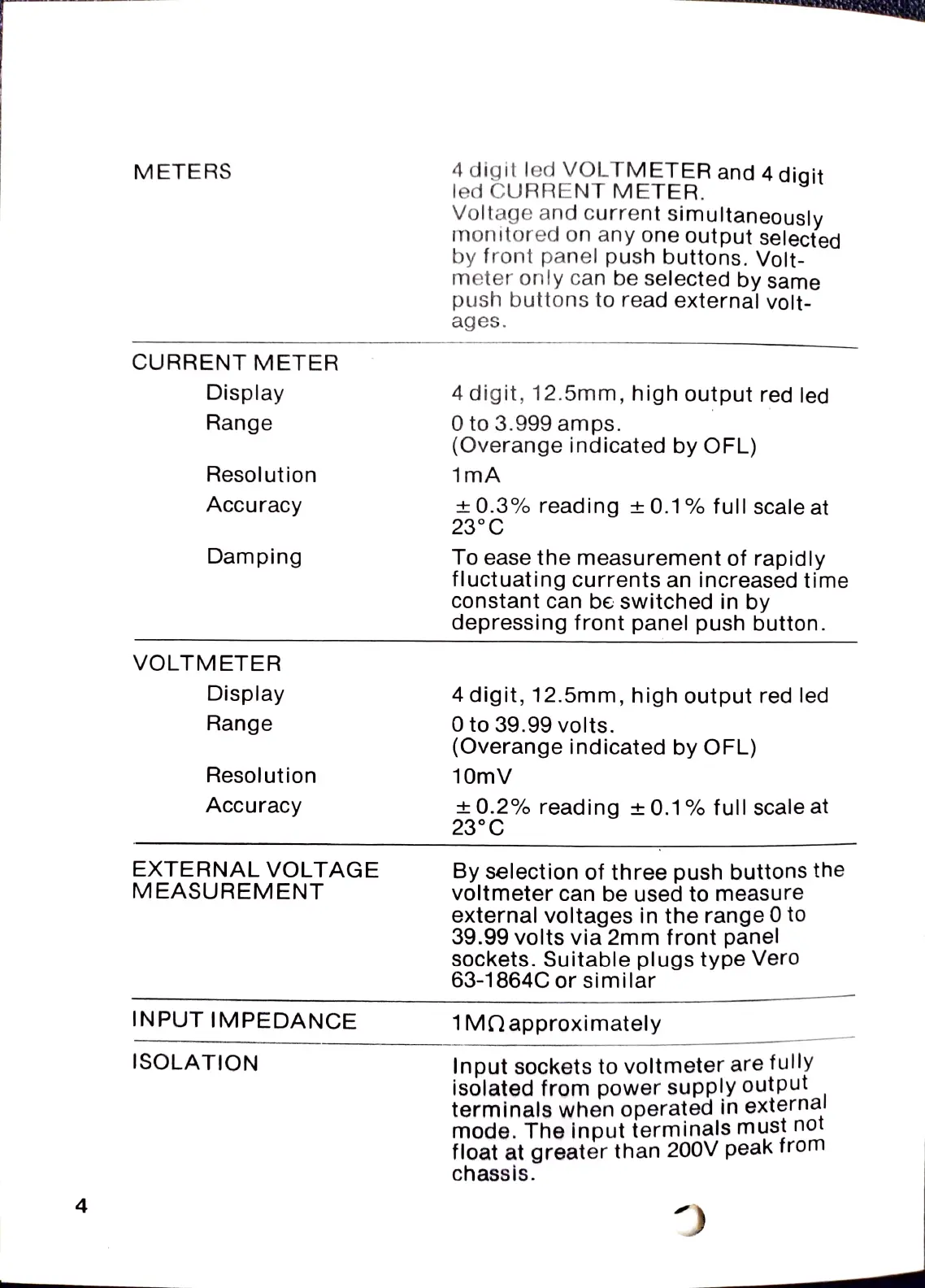

METERS
CURRENT METER
Display
Range
Resolution
Accuracy
Damping
VOLTMETER
Display
Range
Resolution
Accuracy
EXTERNAL VOLTAGE
MEASUREMENT
INPUT IMPEDANCE
ISOLATION
4
digit
led
VOLTMETER
and 4
digit
led CURRENT METER.
Voltage
and
current
simultaneously
monitored on any one output selected
by front panel push buttons. Volt
meter only can be selected by same
push buttons to read external volt
ages.
4 digit, 12.5mm, high output red led
0 to 3.999 amps.
(Overange indicated by OFL)
1 mA
+0.3% reading ±0.1% full scale at
23°C
To ease the measurement of rapidly
fluctuating currents an increased time
constant can bE Switched in by
depressing front panel push button.
4 digit, 12.5mm, high output red led
0 to 39.99 volts.
(Overange indicated by OFL)
10mV
+0.2% reading +0.1% full scale at
23°C
By selection of three push buttons the
voltmeter can be used to measure
external voltages in the range 0 to
39.99 volts via 2mm front panel
sockets. Suitable plugs type Vero
63-1864C or similar
1MQapproximately
Input sockets to voltmeter are fully
isolated from power supply output
terminals
when
operated
in
external
mode.
The
input
terminals
must
not
float
at
greater
than
200V
peak
from
chassis.
