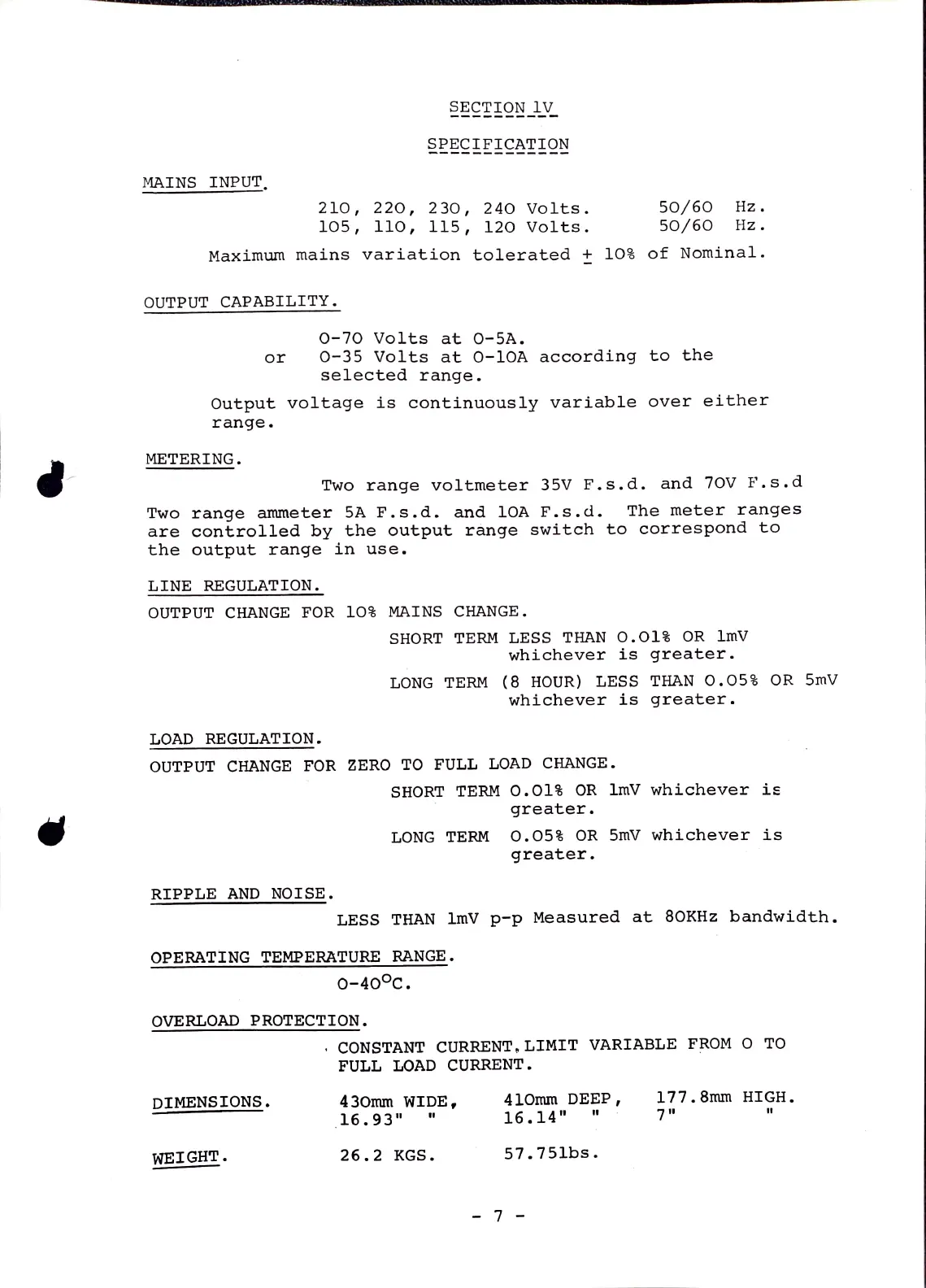

Farnell TSV 70 - Specification Summary; Mains Input and Variation; Output Capability Range; Metering and Regulation

MAINS INPUT.
OUTPUT CAPABILITY.
Maximun mains variation tolerated + 10% of Nominal.
range.
METERING.
LINE REGULATION.
210, 220, 230, 24O Volts.
l05, ll0, 115, 120 Volts.
Output voltage is continuous ly variable over either
Or O-35 Volts at 0-10A according to the
selected range.
0-70 Volts at 0-5A.
LOAD REGULATION.
SECTION 1V
SPECIFICATION
Two
range
voltmeter
35V
F.s.d.
and
70V
F.s.d
Two range amme ter 5A F.s.d. and 10A F.s.d. The meter ranges
are controlled by the output range switch to correspond to
the output range in use.
OUTPUT CHANGE FOR l0% MAINS CHANGE.
RIPPLE AND NOISE
DIMENSIONS.
WEIGHT.
oUTPUT CHANGE FOR ZERO TO FULL LOAD CHANGE.
OVERLOAD PROTECTION.
SHORT TERM LESS THAN 0.018 OR 1mV
whichever is greater.
LONG TERM (8 HOUR) LESS THAN O.05% OR 5mV
whichever is greater.
OPERATING TEMPERATURE RANGE.
50/60 Hz.
50/60 Hz.
SHORT TERM 0.Ol% OR ImV whichever is
greater.
O-40°C.
LONG TERM 0.05% OR 5mV whichever is
greater.
LESS THAN lmV p-p Measured at 80KHz bandwidth.
CONSTANT CURRENT, LIMIT VARIABLE FROM O TO
FULL LOAD CURRENT.
430mm WIDE,
16.93 "
26.2 KGS.
41Omm DEEP,
16.14"
57.75lbs.
-7 -
177.8mm HIGH.
7"
