ΟΔΗΓΙΕΣ ΑΣΦΑΛΕΙΑΣ / INSTRUCTION DE SÉCURITÉ / SAFETY INSTRUCTIONS / INSTRUÇÕES DE SEGURANÇA
SICHERHEITSHINWEISE / VEILIGHEIDSINSTURCTIES INSTRUZIONI DI SICUREZZA
33019- Lombok Faro 16

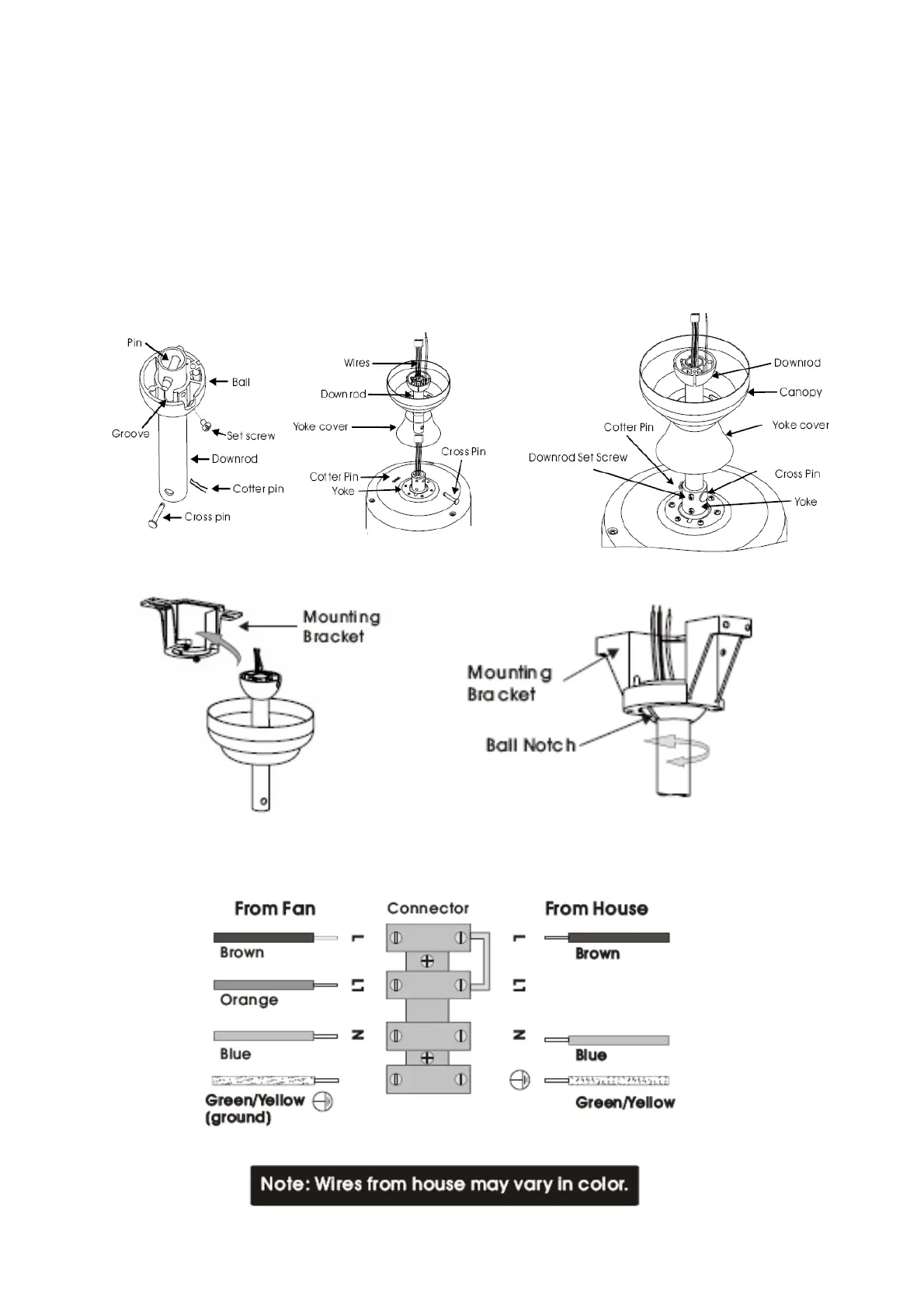

YOKE & DOWNROD ASSEMBLY
1- Feed motor lead wires through downrod assembly & canopy. Insert down rod into yoke. Make sure the gasket on
top of downrod assembly is properly inserted for effective water proofing.
2- Insert the cross pin throught yoke & down rod, then secure with cotter pin.
3- Thighten both jam screwa to further secure downrod.
4- Pull down yoke cover in proper position.
5- Lift fan assembly onto mounting bracket.
6- Carefully lift the fan assembly onto mounting bracket. Rotate fan so that the notch on the ball engages the ridge in
the mounting bracket.
ELECTRICAL CONNECTIONS
