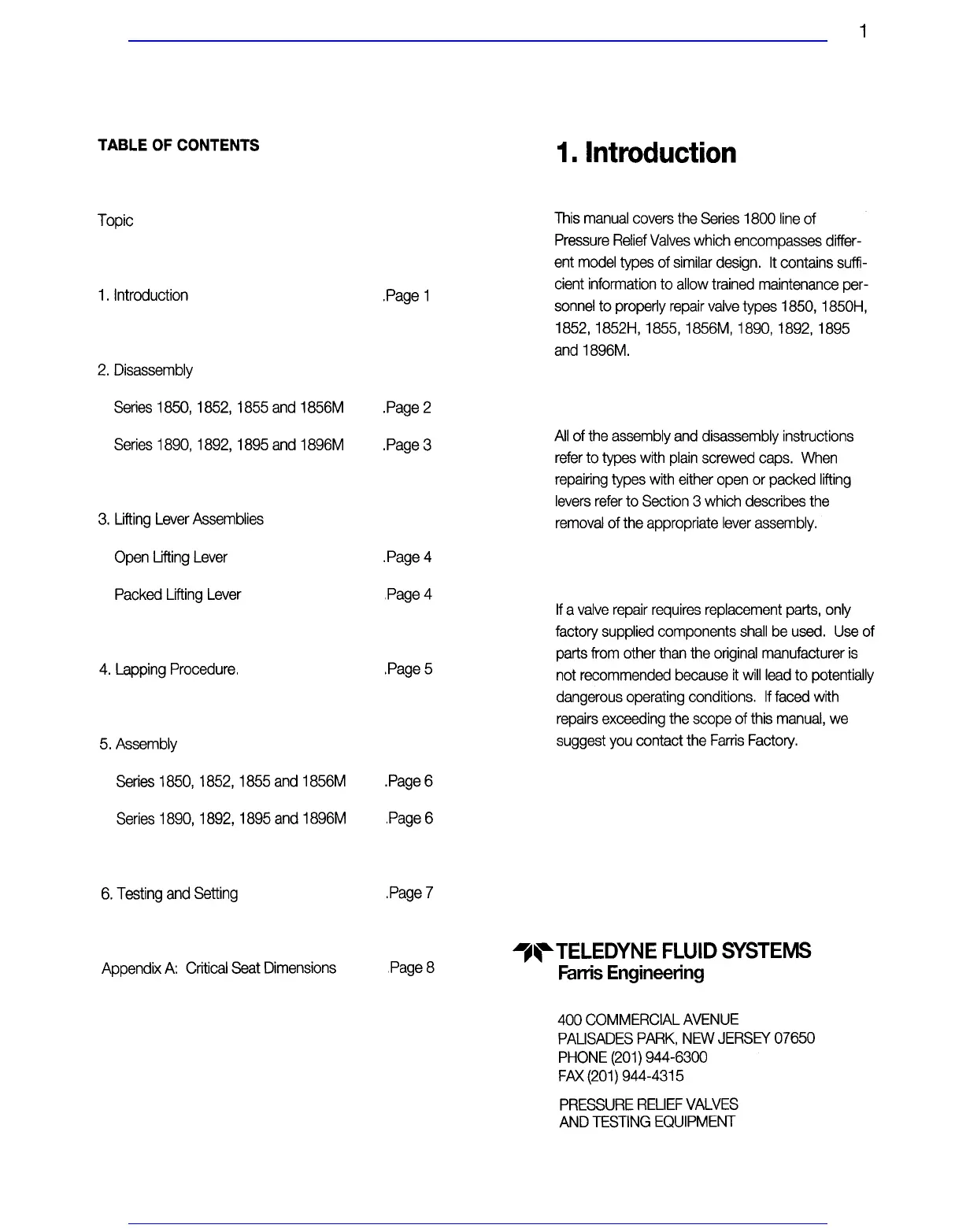

Farris Engineering 1800 Series User Manual

1
TABLE OF CONTENTS
1. Introduction
Topic
This manual covers the Series 1800 line of
Pressure Relief Valves which encompasses differ-
ent model types of similar design. It contains suffi-
cient information to allow trained maintenance per-
sonnel to properly repair valve types 1850, 1850H,
1852, 1852H, 1855, 1856M, 1890, 1892, 1895
and 1896M.
1. Introduction
,Page
1
2. Disassembly
Series 1850, 1852, 1855 and 1856M
.page
2
All of the assembly and disassembly instructions
refer to types with plain screwed caps. When
repairing types with either open or packed lifting
levers refer to Section 3 which describes the
removal of the appropriate lever assembly.
Series 1890,1892,1895 and 1896M
.Page
3
3. Lifting Lever Assemblies
Open Ufting Lever
.Page
4
Packed Lifting Lever
Page 4
If a valve repair requires replacement parts, only
factory supplied components shall be used. Use of
parts from other than the original manufacturer is
not recommended because it will lead to potentially
dangerous operating conditions. If faced with
repairs exceeding the scope of this manual, we
suggest you contact the Farris Factory.
.Page
5
4. Lapping Procedure.
5. Assembly
Series 1850,1852,1855 and 1856M
.Page
6
Series 1890,1892,1895 and 1896M
,Page
6
6. Testing and Setting
.Page
7
...,~ TELEDYNE FLUID SYSTEMS
Fams Engineering
Appendix A: Critical Seat Dimensions
Page 8
400 COMMERCIAL AVENUE
PALISADES PARK, NEW JERSEY 07650
PHONE (201) 944-6300
FAX (201) 944-4315
PRESSURE RELIEF VALVES
AND TESTING EQUIPMENT
