Details - Optional O Ring Seats
L through T orifice
D through K orifice

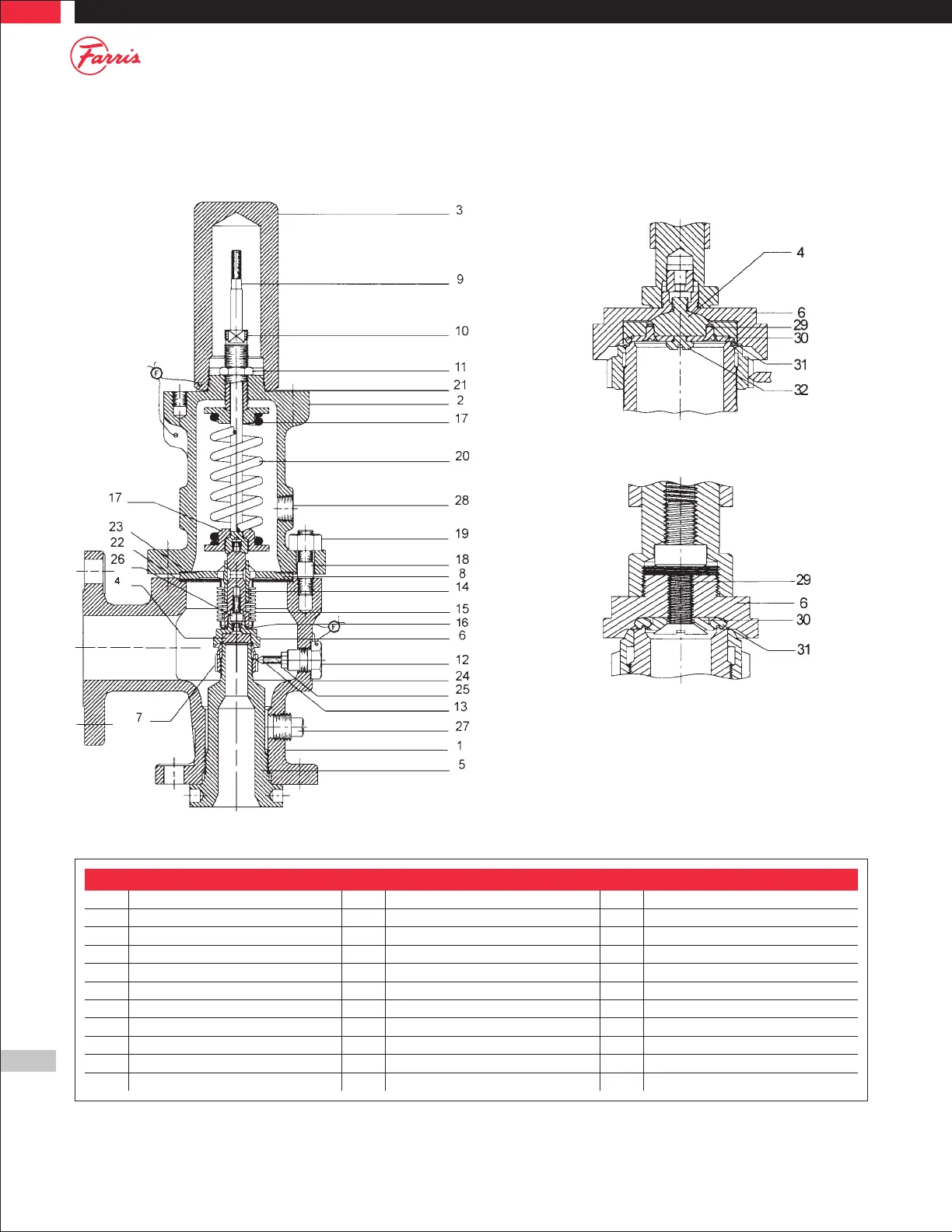

Figure 1: 2600, 2600L & 2600S Series Parts List
1 Body 12 Lock Screw (B.D.R.) 23 Bonnet Gasket
2 Bonnet or Yoke 13 Lock Screw Stud 24 Lock Screw Gasket
3 Cap 14 Stem Retainer 25 Hex Nut (B.D.R.L.S.)
4 Disc 15 Bellows* 26 Lock Screw (Disc Holder)
5 Nozzle 16 Bellows Gasket* 27 Pipe Plug (Body)
6 Disc Holder 17 Spring Button 28 Pipe Plug (Bonnet)*
7 Blow Down Ring (B.D.R.) 18 Body Stud 29 Flat Head Machine Screw
8 Sleeve Guide 19 Hex Nut (Body) 30 O Ring Retainer
9 Stem 20 Spring 31 O Ring Seat Seal
10 Spring Adjusting Screw 21 Cap Gasket 32 Jack Screw Plug
11 Jam Nut (Spr. Adj. Scr.) 22 Body Gasket
*Conventional design does not use bellows and bellows gasket, but does have bonnet pipe plug. Bellows valves do not come with a bonnet pipe plug.
Figure 1: 2600, 2600S & 2600L
