2 column
electro-mechanical lift
Mod. Z41/3S
18
CONTROL UNIT

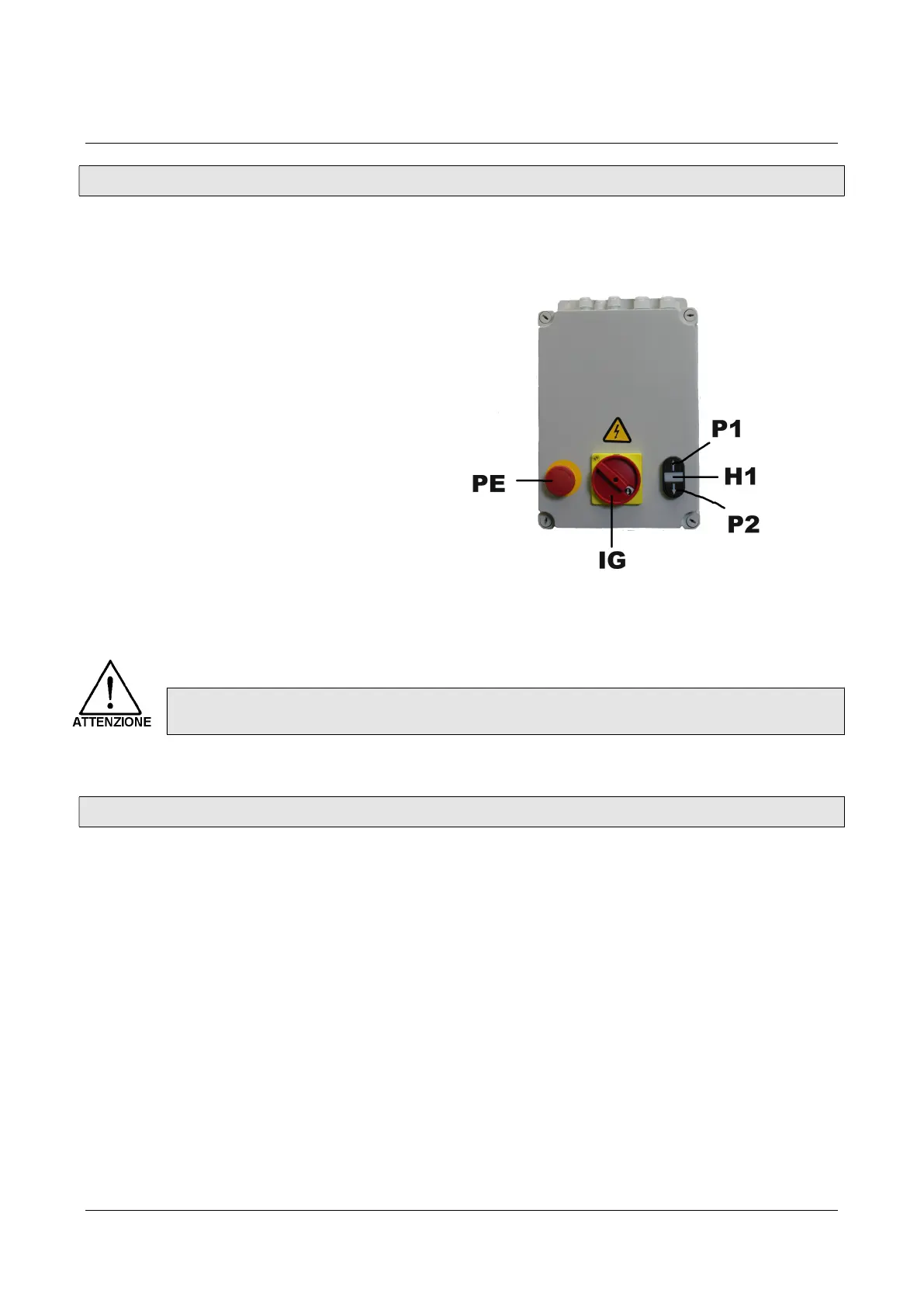

Fig. 7 - Control unit
The control unit consists of:
IG - 3-position selector switch
with
UP/STOP/DOWN.
H1 - Light that indicates the
presence of electrical voltage.
P1 – Up button
P2 – Down button
PE – Emergency button
It is possible to disconnect the machine from the power supply by means of the
PE button at any time.
INSTRUCTIONS FOR USE
Before each use, it is necessary to pay attention to all the warnings indicated in
the paragraph SAFETY RECOMMENDATIONS. The lift in question must be
used by authorised personnel only. Remember that if it is used by people who
are not aware of the procedures specified in this manual, dangerous situations
may be created.
The operating cycle includes:
- Placing the vehicle on the lifting arms.
- Lifting the vehicle slightly off the ground.
- Checking that the vehicle is positioned correctly.
- Lifting the vehicle to the desired height.
- Lowering the vehicle.
