Fasep FZ41/3S - Page 28

2 column
electro-mechanical lift
Mod. Z41/3S
29

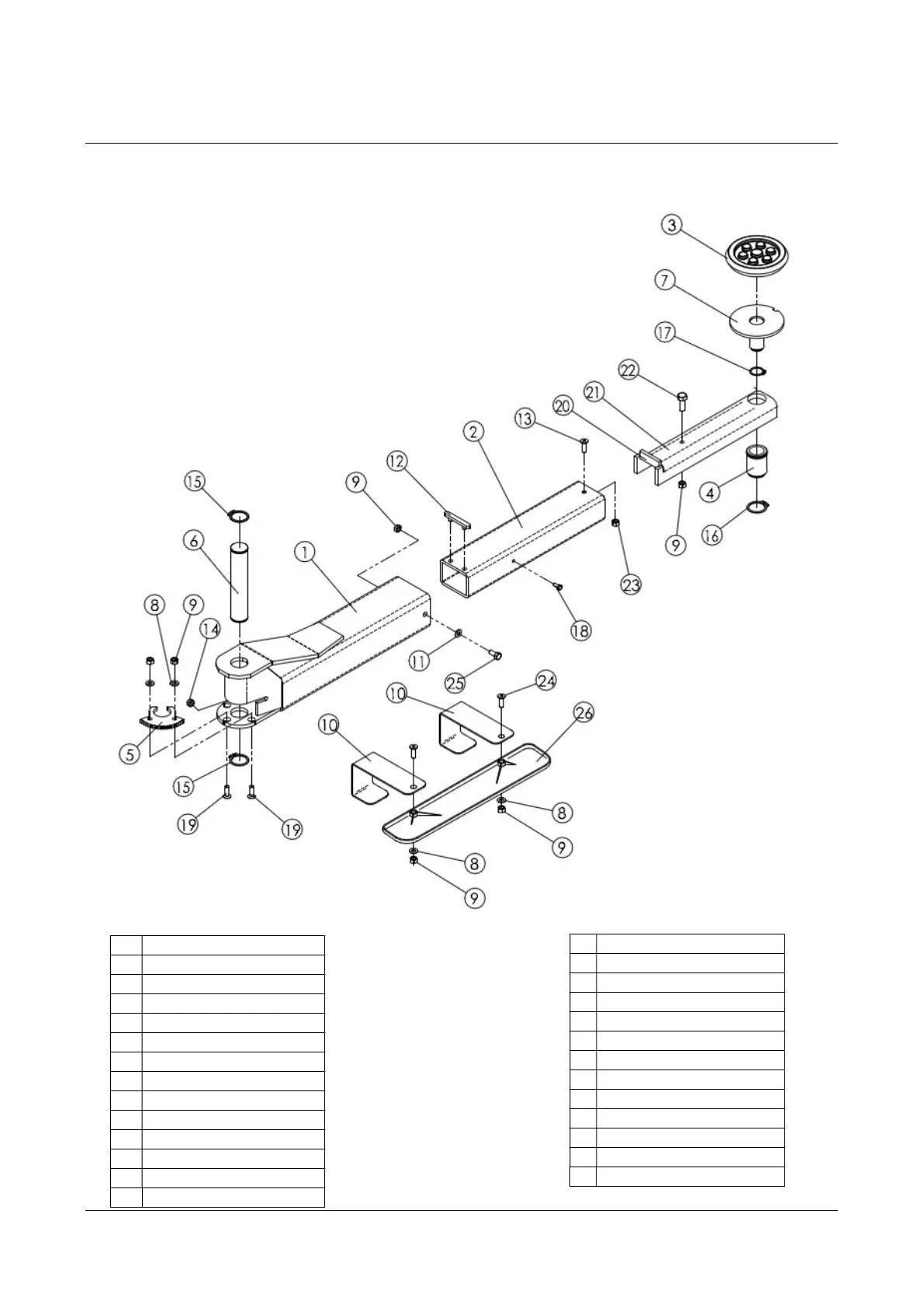

TAB.4 – ARM
No. DESCRIPTION
1 ARM
2 ARM
3 BUFFER
4 BUSHING
5 LOCK
6 PIN
7 SUPPORT
8 WASHER
9 NUT
10 PROTECTION CONNECTION
11 WASHER
12 RUNNER
13 SCREW
14 NUT
15 SEEGER
16 SEEGER
17 SEEGER
18 SCREW
19 SCREW
20 RUNNER
21 ARM
22 SCREW
23 NUT
24 SCREW
25 SCREW
26 PROTECTION
