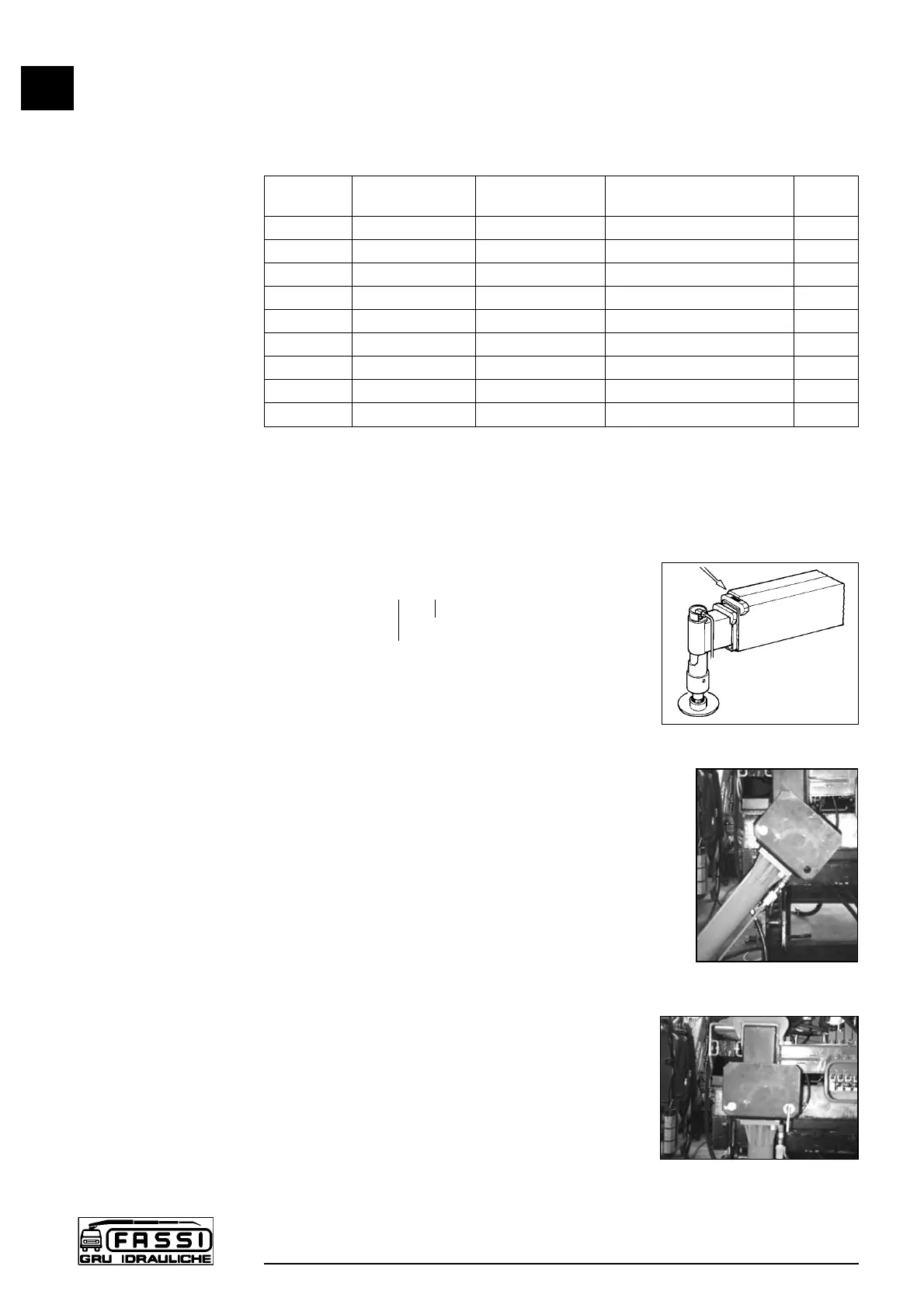

G0 SUPPLEMENTARY BEAMS
Supplementary beams are used in conjunction with the crane outriggers to
ensure the vehicle stability during load handling.
Code
outrigger ram outrigger extension Weight
stroke mm interaxis mm type Kg
52185 550 2132 Fixed 115
42049 550 3098 Manual 220
56681 550 3558 Manual 250
115B073 450 3098 Manual 190
115B076 450 3098 Manual-Rotating-“H” 190
145B068 650 4142 Hydraulic-“H” variable 340
145B070 340 4142 Hydraulic-“H” variable 310
330B054 520 4984 Hydraulic-“H” variable 520
330B055 340 4984 Hydraulic-“H” variable 490
G0.1 Identification of the supplementary beams
Identification data of the supplementary beam is punched on the beam (fig. 11) in
the following sequence:
Ex. *145B070*0001
serial no.
identification code
G1 TILTABLE OUTRIGGER RAMS
Outrigger rams are allowed to be stored in an inclined
position, when obstructions on the vehicle chassis prevent
their vertical stowability. These hinged supports are placed
between the outrigger supports and the rams; the fixed
part is screwed to the supports while the mobile part is
screwed to the rams. (fig. 12-12a)
To place the rams in a working condition.
- Supporting the ram, remove the check pin and the
locking pin from their positions.
- Position, carefully, the ram in working condition,
insert the locking pin in its new position and secure
it with the check pin.
To re-position the rams to the folded position.
- Remove the check pin and the locking pin.
- Position, the ram in a upward direction and
supporting the ram, insert
- the locking pin in its new position and secure
it with the check pin
(!) The locking pin is constructed from special material
- do not replace it with a non original part
- your security depends on it
G0
SUPPLEMENTARY BEAMS
F 170A
18
fig. 11
fig. 12
fig. 12a
