L1 MANUAL EXTENSIONS
These are additional extensions, which are placed in the hydraulic extensions
of the crane and of the hydraulic jib and secured by locking pins.
Manual extensions have a maximum capacity independent from the crane
configuration as shown on the capacity plates.
(!) WARNING (!)
Manual extensions are not protected by the lifting moment limiting device.
Before lifting the load make sure that its weight does not exceed the capacity
indicated on the capacity plate.
Manual extensions can be extracted from the rest position and be operative, once
the security pins have been removed, with the outer boom in sliding position.
Verify that the area is suitable for this operation and there are no unauthorized
persons in the working area.
Do not permit the extension to slide out at speed as this will damage the
stroke end stops.
Do not try to align the holes (slots) for the locking pins with your fingers; always
use a suitable tool.
When manual extensions are in place, fit the locking pins and secure them
with the check pins to prevent accidental escape.
(!) Always remember that when operating with implements, their tare weight
must be deducted from the capacity of the crane.
L2 CONTROLS TO OPERATE THE HYDRAULIC
IMPLEMENTS OF THE CRANE
L1
USE OF IMPLEMENTS
F 170A
33
The plates placed over each lever define their function in relation to their
movement.
(!) ATTENTION (!)
The sequence of the plates placed on the crane controls may be different.
Make sure that the lever you are going to operate correspond to the control
you selected.

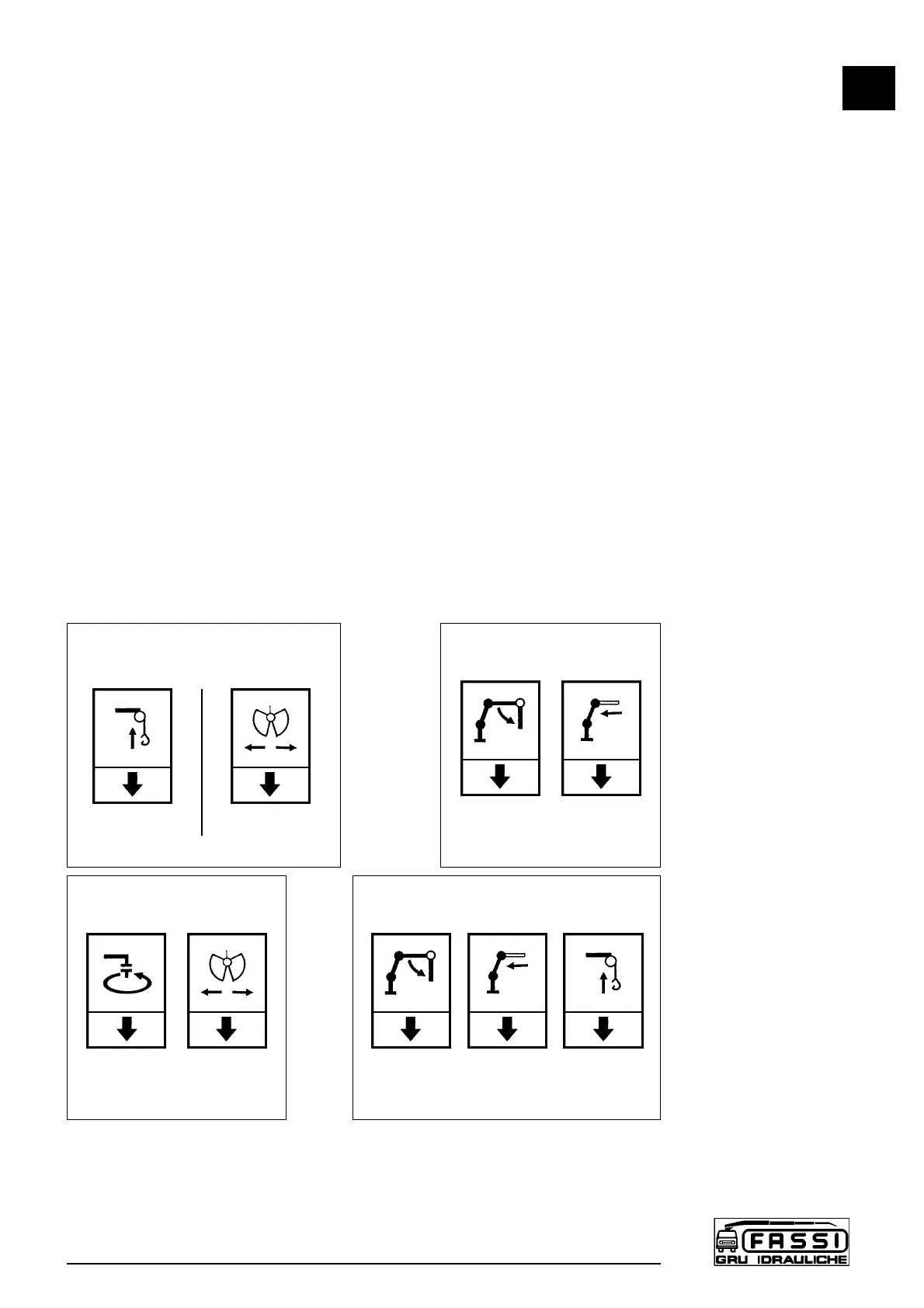

IMPLEMENTS CONTROLS
1 Additional function
Winch Bucket
IMPLEMENTS CONTROLS
2 Additional functions
Jib
outer
boom
Jib
extension
booms
IMPLEMENTS CONTROLS
2 Additional functions
Rotator Bucket
IMPLEMENTS CONTROLS
3 Additional functions
Jib
outer
boom
Jib
extension
booms
Winch
