S0
HYDRAULIC SCHEMATICS
FOR CRANE
F 170A
51

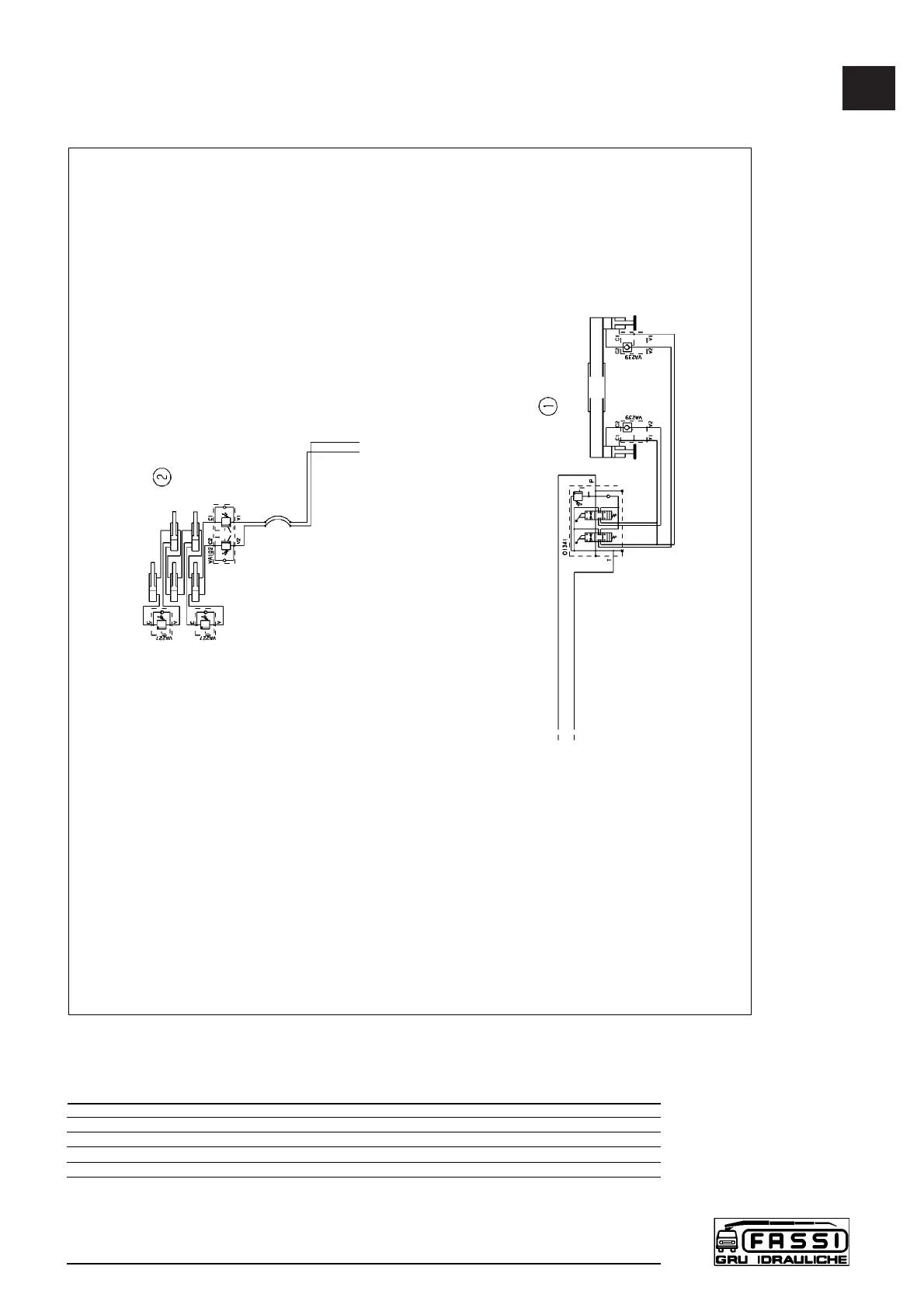

Hydraulic schematic for crane - versions:
1) n° 2 functions for stabilizers - 2) “C” version
CODE DESCRIPTION
DI341 DISTRIBUTOR
VA102 DOUBLE EFFECT BLOCK VALVE
VA187 BLOCK VALVE + FAUCET
VA227 SEQUENCE VALVE
