19 CONTROLS TO OPERATE THE HYDRAULIC
IMPLEMENTS OF THE CRANE
The plates placed over each lever define their function in relation to their movement.
(!) ATTENTION (!)
The sequence of the plates placed on the crane controls may be different.
Make sure that the lever you are going to operate correspond to the control you
selected.

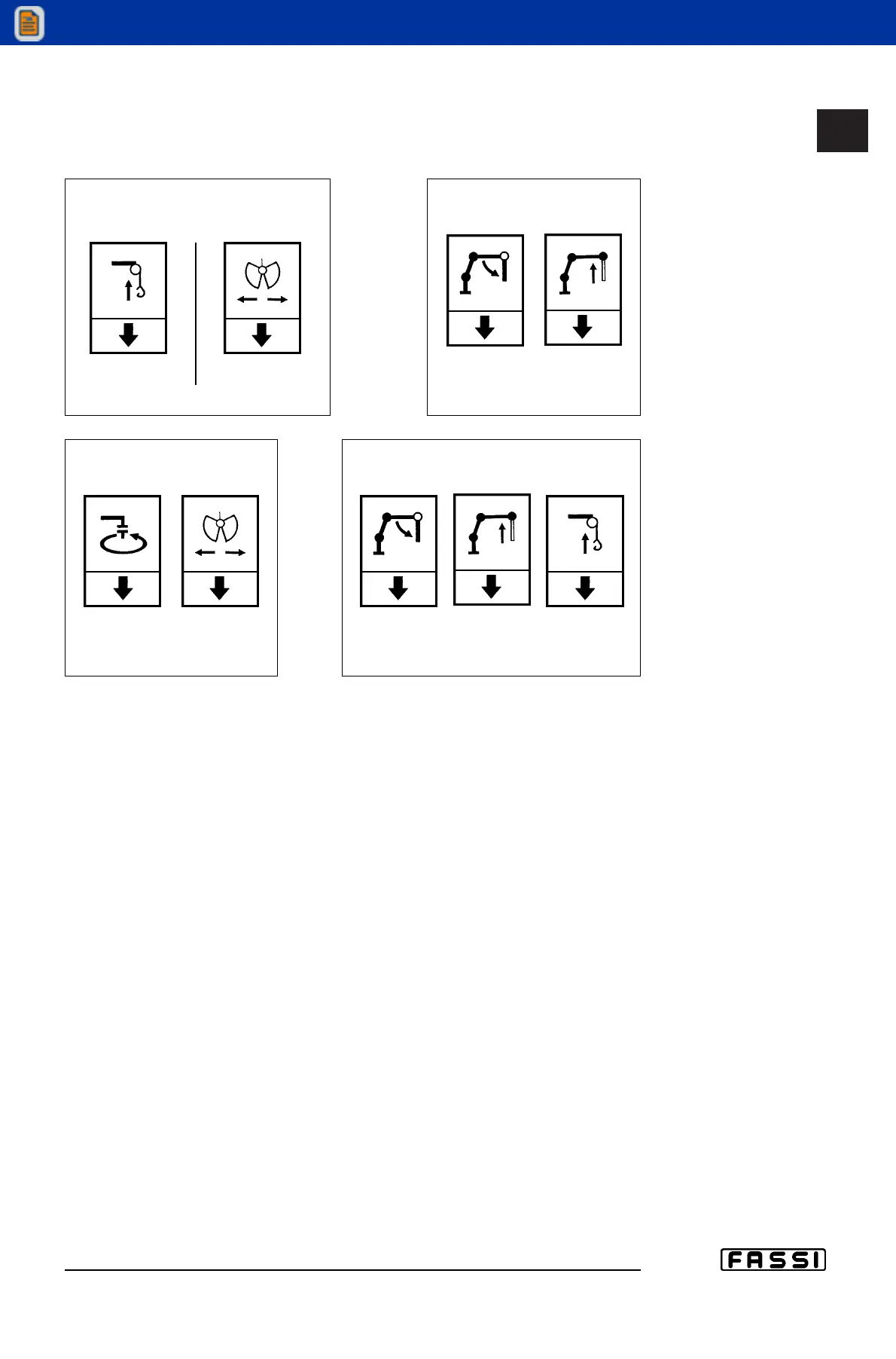

IMPLEMENTS CONTROLS
1 Additional function
Winch Bucket
IMPLEMENTS CONTROLS
2 Additional functions
Jib
outer
boom
Jib
extension
booms
IMPLEMENTS CONTROLS
2 Additional functions
Rotator Bucket
IMPLEMENTS CONTROLS
3 Additional functions
Jib
outer
boom
Jib
extension
booms
Winch
