Fastcorp DIVI - Transport and Unpacking Instructions; Robot and Freezer Operations

Fastcorp, LLC
DIVI Setup and Users Guide
Page 13 of 62 Rev 6
5. FAMILIARIZE YOURSELF WITH THE NEW ROBOT
6. TRANSPORT, UNPACKING AND INITIAL SETUP INSTRUCTIONS
A. TRANSPORT CONSIDERATIONS
The DIVI Vendor should always be maintained in an upright position. Failure to do so may result in permanent damage to the
vendor. Whenever the DIVI Vendor is transported, always install the shipping brackets that were provided with the machine.
Replace cable ties as necessary. Refer to the uncrating instructions for cable tie and shipping bracket installation.
!! ATTENTION!!
ALL SHIPPING BRACKETS MUST BE REMOVED BEFORE APPLYING POWER TO THE MACHINE. FAILURE TO DO SO MAY RESULT IN
PERMANENT DAMAGE TO THE ROBOT OR ELECTRONICS.

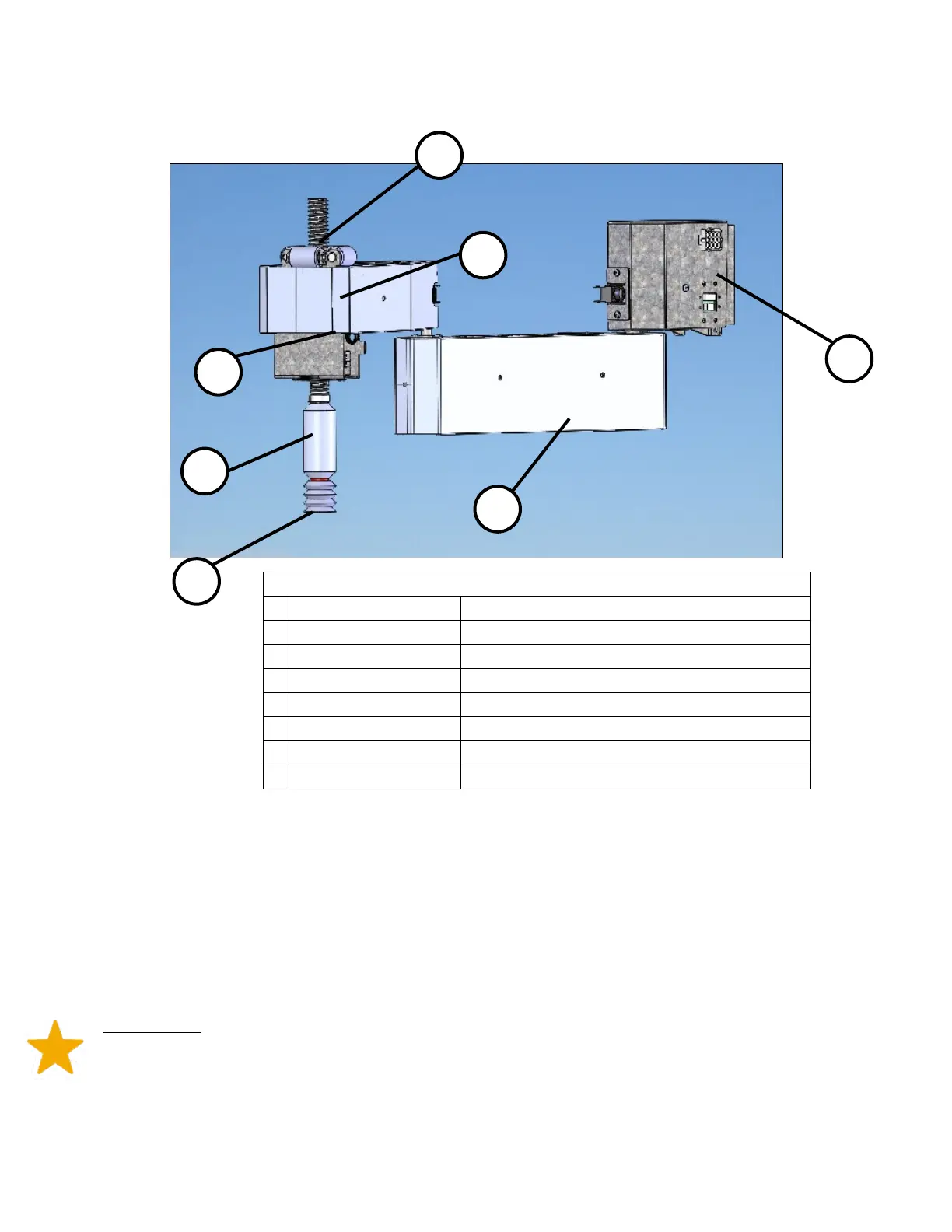

Robot Arm Assembly
1
2300014
Vac Cup (AKA picker tip)
2
F003-A04168
Weighted Picker Assy
3
F003-A03910
Forearm Assy - with Cover Assy 1100354
4
8018132001
Vacuum Hose
5
F003-A04171
Vac Hose Drive Assy
6
F003-A04147
Humerus Assy - with cover assy 1100354
7
Robot Shoulder Cover
1
2
3
4
6
5
7
