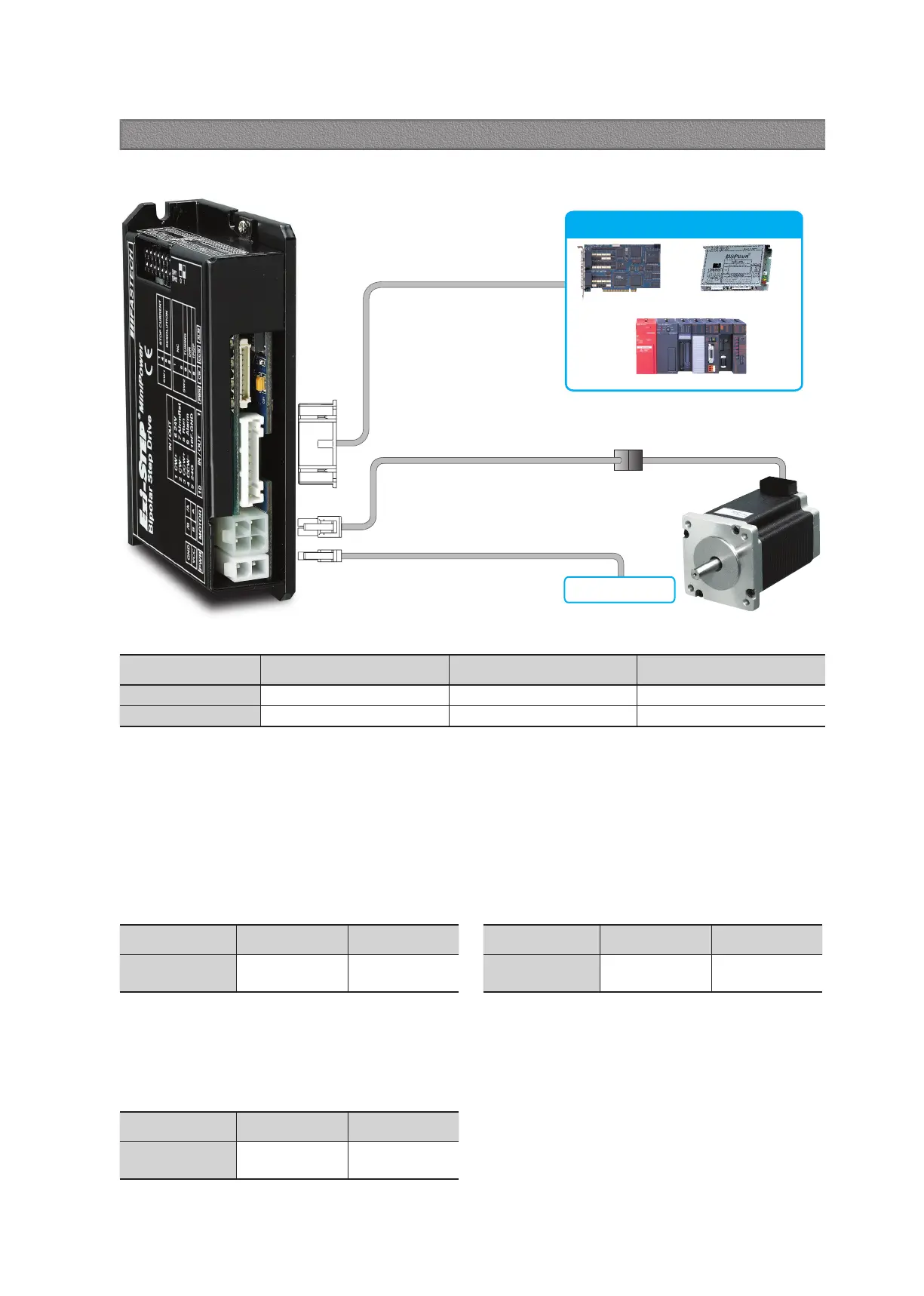

Fastech Ezi-Step ST - System Configuration [Ezi-STEP-MPB Series]; Options

www.fastech-motions.com - 14
Type Signal Cable Motor Cable Power Cable
Length supplied - 30cm -
Max. Length 20m 20m 2m
13.1 Options
① Signal Cable
Available to connect between Input/Output Control System
and Ezi-STEP MPB.
Item Length [m] Remark
CMNB-S-□ □ □F
CMNB-S-□ □ □M
□ □ □
□ □ □
Normal Cable
Robot Cable
□ is for Cable Length. The unit is 1m and Max. 20m length.
② Motor Extension Cable
Available to extended connection between motor and
Ezi-STEP MPB.
Item Length [m] Remark
CSVO-M-□ □ □F
CSVO-M-□ □ □M
□ □ □
□ □ □
Normal Cable
Robot Cable
□ is for Cable Length. The unit is 1m and Max. 20m length.
③ Power Cable
Available to connect between Power and
Ezi-STEP MPB.
Item Length [m] Remark
CSVO-P-□ □ □F
CSVO-P-□ □ □M
□ □ □
□ □ □
Normal Cable
Robot Cable
□ is for Cable Length. The unit is 1m and Max. 2m length.



①
②
③


13. System Configuration [Ezi-STEP-MPB series]
