FB Series SIO Driver
GP-Pro EX Device/PLC Connection Manual
53

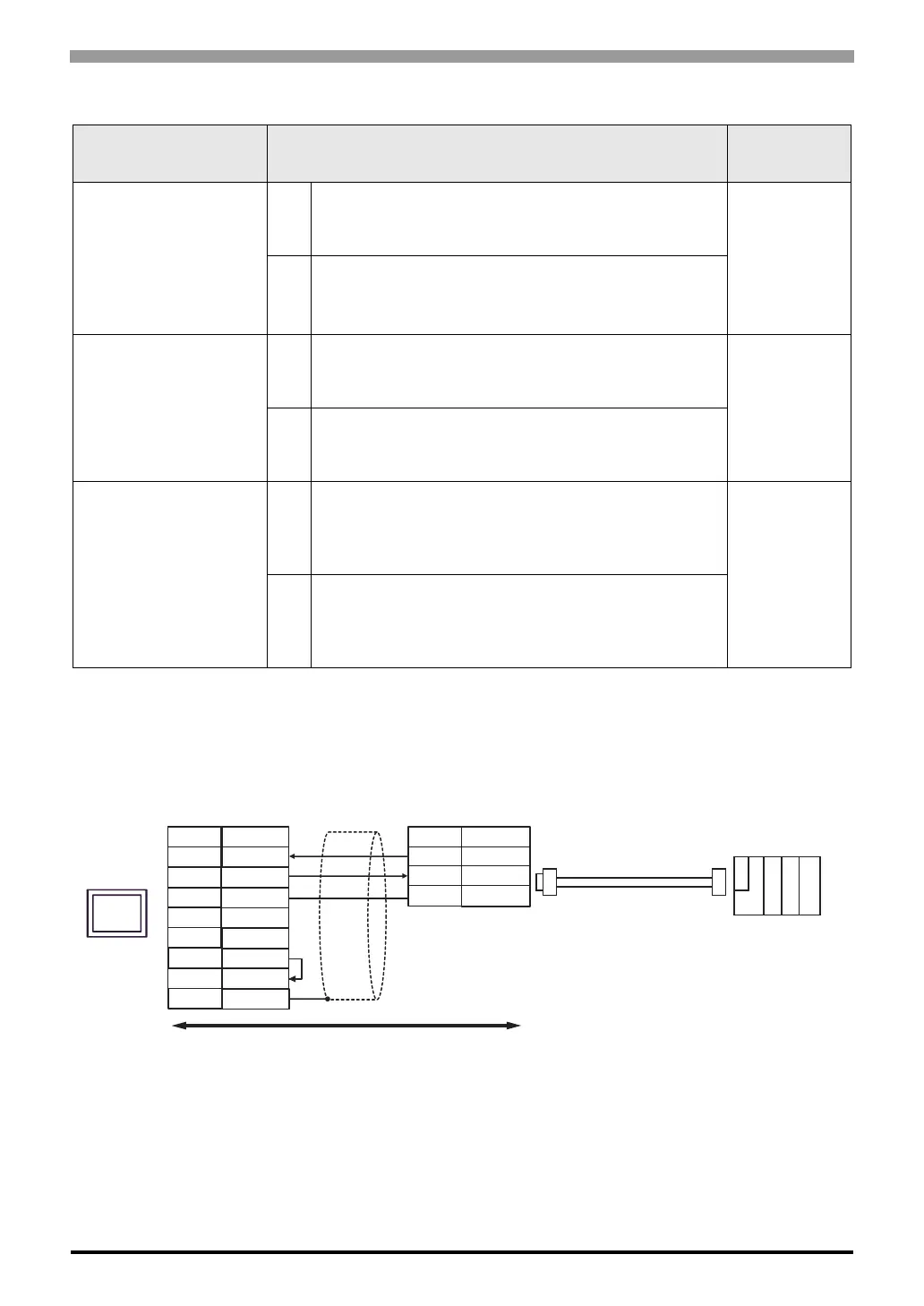

Cable Diagram 5
5A)
Display
(Connection Port)
Cable Remarks
GP3000 (COM1)
GP4000
*1
(COM1)
SP5000 (COM1/2)
ST (COM1)
LT3000 (COM1)
IPC
*2
PC/AT
*1 All GP4000 models except GP-4100 Series and GP-4203T
*2 Available only with a COM port that supports RS232C.
) IPC COM Port (page 6)
5A
User-created Cable
+
Cable FB-232P0-9F-150 by Fatek Automation Corporation
Cable length:
15m or less
5B
User-created Cable
+
Cable FB-232P0-9M-150 by Fatek Automation Corporation
GP-4105 (COM1)
5C
User-created Cable
+
Cable FB-232P0-9F-150 by Fatek Automation Corporation
Cable length:
15m or less
5D
User-created Cable
+
Cable FB-232P0-9M-150 by Fatek Automation Corporation
LT-4*01TM (COM1)
LT-Rear Module (COM1)
5E
RJ45 RS-232C Cable (5m) by Pro-face
PFXZLMCBRJR21
+
Cable FB-232P0-9F-150 by Fatek Automation Corporation
Cable length:
6.5m or less
5F
RJ45 RS-232C Cable (5m) by Pro-face
PFXZLMCBRJR21
+
Cable FB-232P0-9M-150 by Fatek Automation Corporation
Shield
Signal name
ER(DTR)
4
SD(TXD)
3
DR(DSR)
6
7
RS(RTS)
SG
5
FG
RD(RXD)2
CS(CTS)
8
D-Sub 9 pin (socket)
Display
Pin
Shell
Display
D-Sub 9 pin (plug)
Connection Cable
2
3
5
Signal name
TXD
RXD
SG
Pin
FB-232P0-9F-150
External Device
D-Sub 15 pin (socket)
User-created Cable
