FAURE-HERMAN
COMPONENT MAINTENANCE MANUAL
744-082 / 744-082-3
28-49-91
PAGE 11a/12a
MAR 31/07

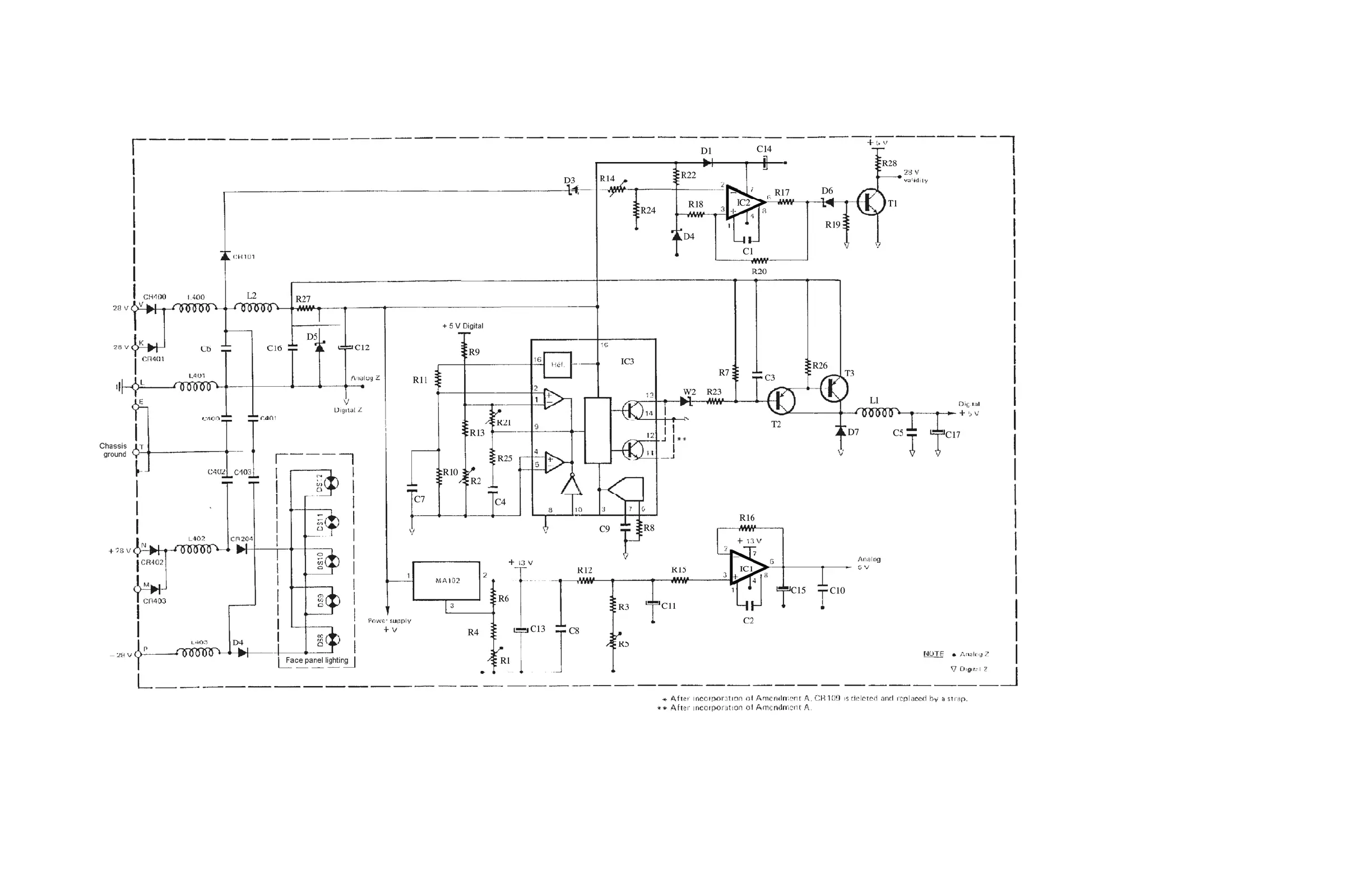

CIRCUIT DIAGRAM (P/N 744-082-3)
FIGURE 3, SHEET 1A
