14. ILLUSTRATIONS, PART LISTINGS, AND DIAGRAMS

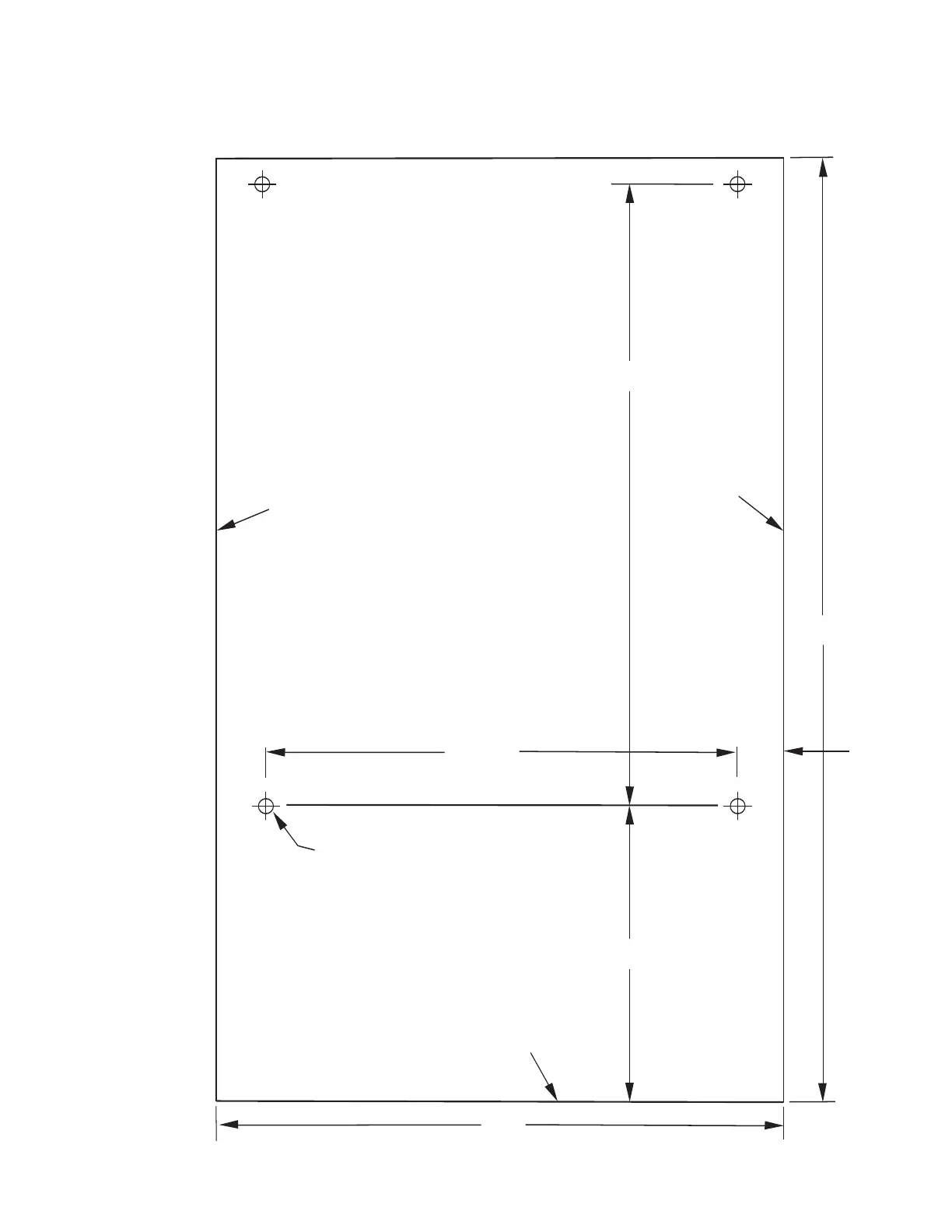

14.1 MOUNTING DIAGRAM
This Figure illustrates the locations of threaded mounting holes in the base of the FBD550 machine.
32
14 7/8" 1 1/16"
10 1/4"
32.3"
17"
20"
MACHINE MUST
BE SUPPORTED TO
THIS POINT
EDGE OF MACHINE
EDGE OF
MACHINE
USE 1/2" DRILL
BIT (4 HOLES)
